Tractor · 1958Unverified

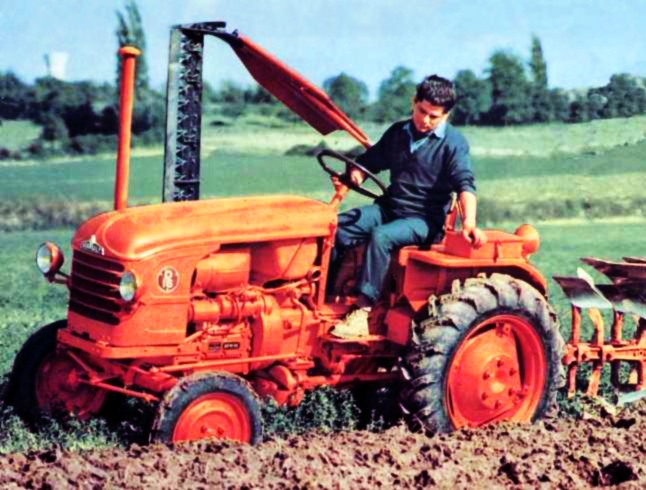

Renault D16
Renault D16 — D Series · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Built in Le Mans, FranceReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
MWM 1.4L 2-cyl dieselReference
Engine11.9 kWReference
MWM AKD 311 ZReference
dieselReference
2-cylinderReference
air-cooled inlineReference
Displacement1.4 LReference
Bore/Stroke90 x 110 mmReference
Power11.9 kWReference
Rated RPM1700Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
Dimensions
Wheelbase167 cmReference
Front tire4.00-15Reference
Rear tire9-24Reference
Ag front4.00-15Reference
Ag rear9-24Reference
Length272 cmReference
Height (steering wheel)148 cmReference
Height (exhaust)183 cmReference
Ground clearance36 cmReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
