Tractor · 1956Unverified

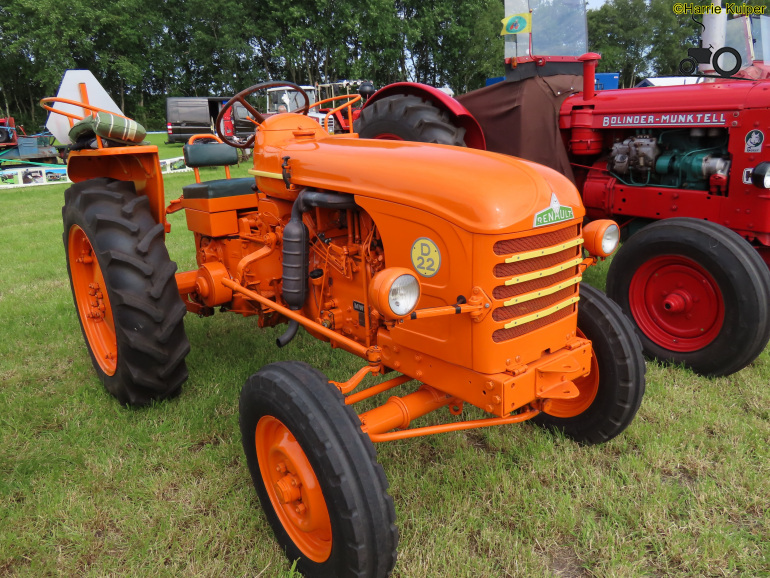

Renault D22
Renault D22 — D Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1480 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Built in Le Mans, FranceReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
MWM 1.8L 2-cyl dieselReference
Fuel tank40.1 LReference
Engine16.4 kWReference
MWM AKD 112 ZReference
dieselReference
2-cylinderReference
air-cooled inlineReference
Displacement1.8 LReference
Bore/Stroke98 x 120 mmReference
Power16.4 kWReference
Rated RPM1700Reference
StarterelectricReference
Starter volts12Reference
Oil capacity5.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1582Reference
Dimensions
Wheelbase171 cmReference
Weight1480 kgReference
Front tire5.50-16Reference
Rear tire10-28Reference
Ag front5.50-16Reference
Ag rear10-28Reference
Ag front9-36Reference
Length299 cmReference
Height (steering wheel)153 cmReference
Shipping weight1480 kgReference
Max weight2115 kgReference
Ground clearance38 cmReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts6Reference
Speeds
With 10-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
