Tractor · 1956Unverified

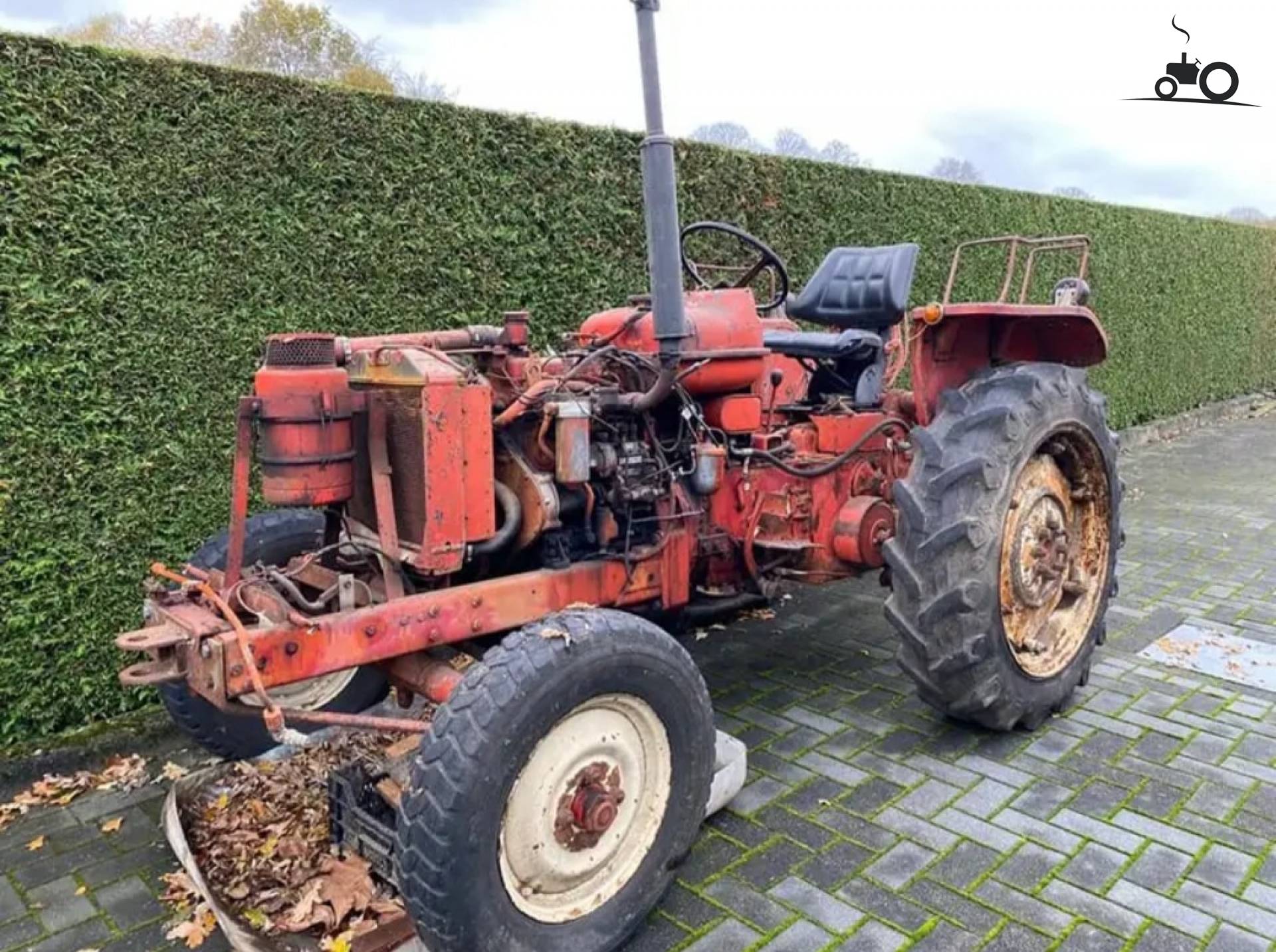

Renault D30
Renault D30 — D Series · 30 hp. Reference specifications; pending source verification.
The Renault D30 is a tractor model rated at 30 hp — making it one of the more compact options in its class. This model was manufactured from 1956 to 1960. Power comes from a 3-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a 6-speed gearbox. Listed weight is 1485 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1485 kg
Catalogue coverage
Variants represented
2
Richest spec table
49 rows
Recorded power
30 hp
Recorded weight
1485 kg
Transmissions
6-speed gear
Production years
1956-1960
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Built in Le Mans, FranceReference
Two-wheel driveReference
Differential lockmechanical rearReference
Open operator station.Reference
Engine
Perkins 2.4L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine22.4 kWReference
Perkins P3 TAReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement2.4 LReference
Bore/Stroke89 x 127 mmReference
Power22.4 kWReference
Compression16.5:1Reference
Rated RPM1700Reference
Starter volts12Reference
Oil capacity6.8 LReference
Coolant capacity9.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase175 cmReference
Weight1485 kgReference
Front tire5.50-16Reference
Rear tire10-28Reference
Ag front5.50-16Reference
Ag rear10-28Reference
Ag front6.50-16Reference
Ag rear11-28Reference
Ag rear12-28Reference
Ag rear9-36Reference
Ag rear11-36Reference
Ag rear12.00-24Reference
Length312 cmReference
Height (steering wheel)153 cmReference
Shipping weight1485 kgReference
Max weight2120 kgReference
Ground clearance38 cmReference
Front tread119 to 189 cmReference
Rear tread119 to 180 cmReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts6Reference
Speeds
With 10-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
