Tractor · 1956Unverified

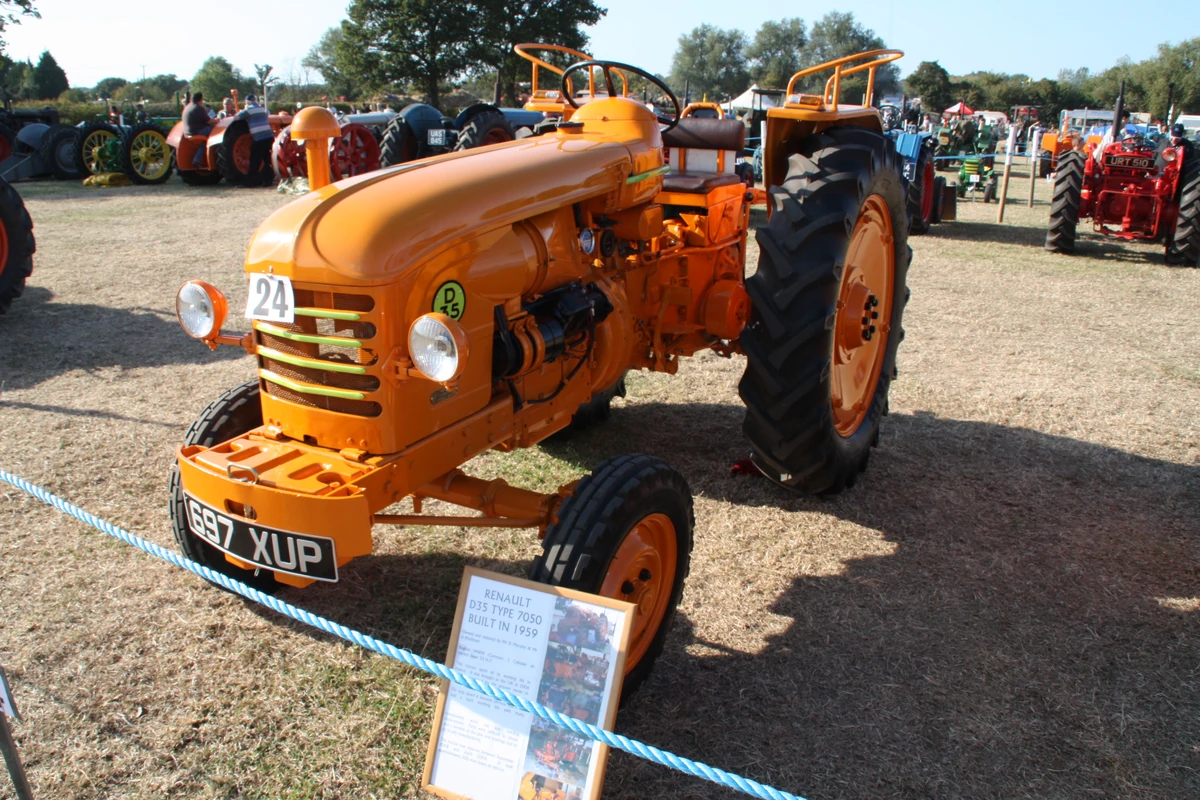

Renault D35
Renault D35 — D Series · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
3320 to 5198 pounds
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Built in Le Mans, FranceReference
Two-wheel driveReference
Open operator station.Reference
Engine
MWM 2.7L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine26.1 kWReference
MWM AKD 112 DReference
dieselReference
3-cylinderReference
air-cooled inlineReference
Displacement2.7 LReference
Bore/Stroke98 x 120 mmReference
Power26.1 kWReference
Rated RPM1700Reference
StarterelectricReference
Starter volts12Reference
Oil capacity7.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
PTO & Hydraulics
Rear TypeII/IReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1582Reference
Dimensions
Wheelbase186 cmReference
Weight3320 to 5198 poundsReference
Front tire6.00-16Reference
Rear tire11-28Reference
Ag front6.00-16Reference
Ag rear11-28Reference
Ag front11-36Reference
Length364 cmReference
Height (steering wheel)155 cmReference
Shipping weight1505 kgReference
Operating weight2357 kgReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts6Reference
Speeds
With 11-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
