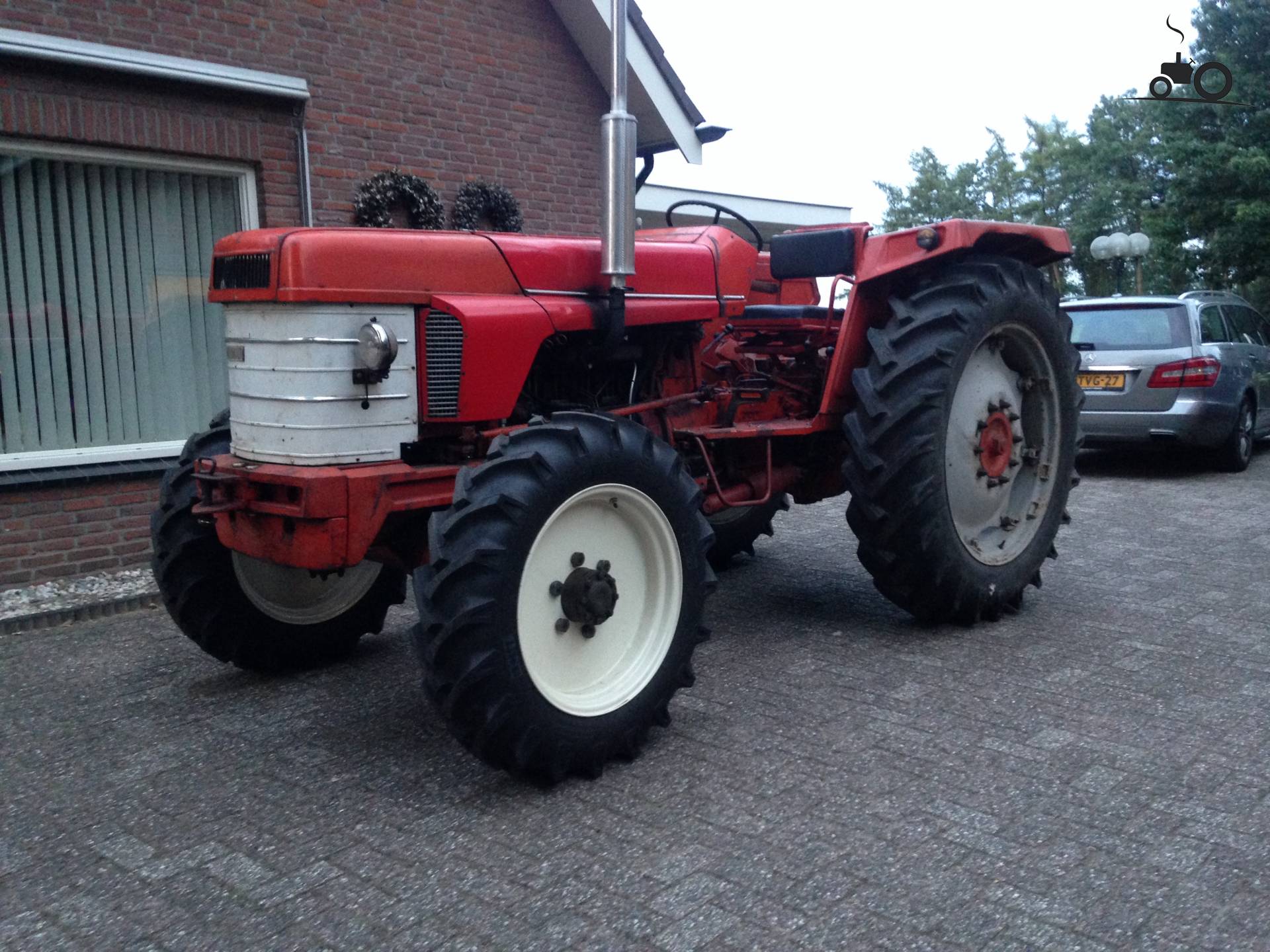

The Renault Master 1 is a compact tractor with a rated output of 60 hp. This model was produced from 1964 to 1967 and is equipped with a 4-cylinder engine, driving through four-wheel drive via a 10-speed gearbox. The vehicle's listed weight ranges from 6053 to 6880 pounds. It is designed to handle tasks of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
6053 to 6880 pounds
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
60 hp
Recorded weight
2745 kg
Transmissions
10-speed
Production years
1964-1967
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Two-wheel driveReference
SteeringmechanicalReference
Dry disc brakesReference
Engine
MWM 3.0L 4-cylReference
Fuel tank79.9 LReference
Engine44.7 kWReference
MWM D 308-4Reference
4-cylinderReference
Displacement3.0 LReference
Bore/Stroke95 x 105 mmReference
Power44.7 kWReference
Rated RPM2500Reference
Torque191.1 NmReference
Torque RPM1590Reference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Total flow26.9 lpmReference
Rear lift1600 kgReference
Rear PTO Type540/groundReference
Dimensions
Wheelbase233 cmReference
Weight6053 to 6880 poundsReference
Front tire6.50-20Reference
Rear tire16.9-30Reference
Ag front6.50-20Reference
Ag rear16.9-30Reference
Length395 cmReference
Height244 cmReference
Weight2745 kgReference
Weight3120 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
