Tractor · 1960Unverified

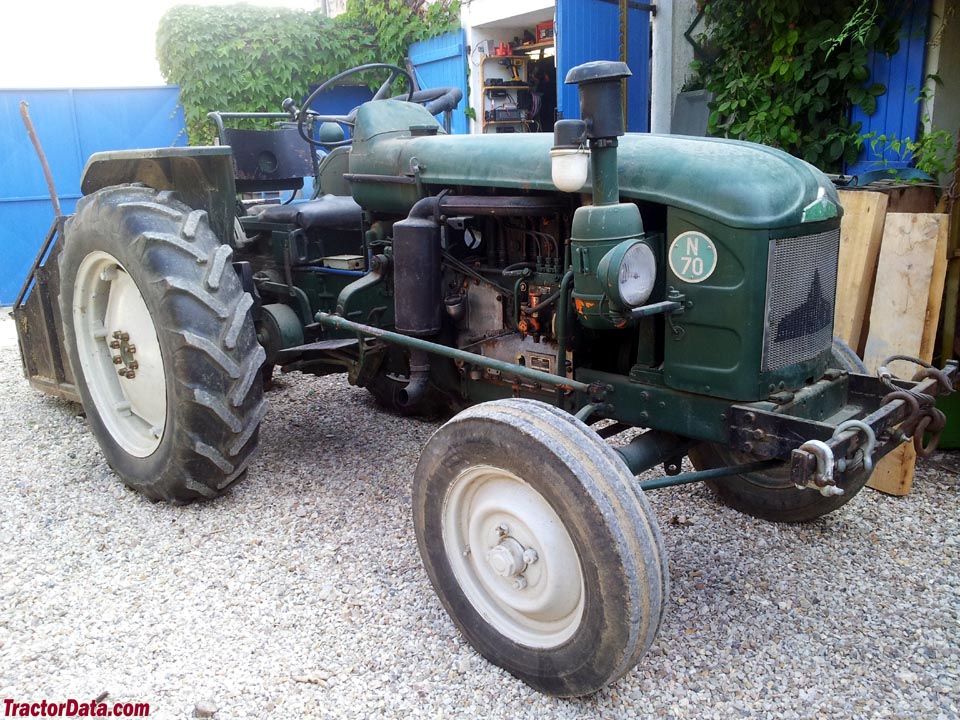

Renault N70
Renault N70 — N Series · 40 hp. Reference specifications; pending source verification.
The Renault N70 is a compact tractor with a rated output of 40 hp, produced from 1960 to 1964. It features a 3-cylinder diesel air-cooled engine, transmitting power through a two-wheel drive system with a 6-speed gearbox. The N70's listed weight is 1623 kg, and it is suited for tasks covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
1623 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
40 hp
Recorded weight
1623 kg
Transmissions
6-speed gear
Production years
1960-1964
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Built in Le Mans, FranceReference
Two-wheel driveReference
Manual steeringReference
Drum brakesReference
Open operator station.Reference
Engine
MWM 2.7L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine29.8 kWReference
MWM AKD 112 DReference
dieselReference
3-cylinderReference
air-cooled inlineReference
Displacement2.7 LReference
Bore/Stroke98 x 120 mmReference
Power29.8 kWReference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
PTO & Hydraulics
Total flow17.0 lpmReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase184 cmReference
Weight1623 kgReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16Reference
Ag rear12.4-28Reference
Length312 cmReference
Height (steering wheel)155 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
