Tractor · 1960Unverified

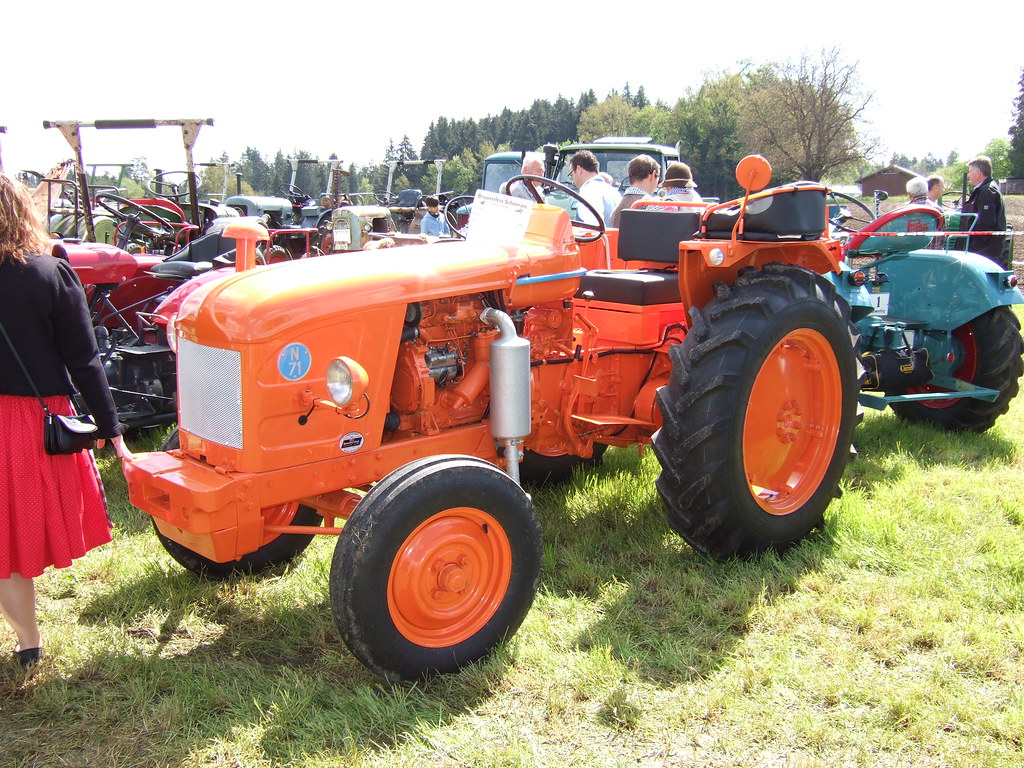

Renault N71
Renault N71 — N Series · 35 hp. Reference specifications; pending source verification.
The Renault N71 is a compact tractor with a rated output of 35 hp, one of the smaller models in its class. Produced between 1960 and 1963, the N71 is equipped with a 3-cylinder diesel liquid-cooled engine, which drives through two-wheel drive via a 6-speed gearbox. The tractor's listed weight is 1485 kg, and it is designed for use in areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1485 kg
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
35 hp
Recorded weight
1485 kg
Transmissions
6-speed gear
Production years
1960-1963
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Built in Le Mans, FranceReference
Two-wheel driveReference
Manual steeringReference
Drum brakesReference
Open operator station.Reference
Variants
N31gasoline engineReference
Engine
Perkins 2.4L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine26.1 kWReference
Perkins P3 TA/4924Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement2.4 LReference
Bore/Stroke89 x 127 mmReference
Power26.1 kWReference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
PTO & Hydraulics
Total flow17.0 lpmReference
Rear PTO Type540/groundReference
Dimensions
Wheelbase175 cmReference
Weight1485 kgReference
Front tire5.50-16Reference
Rear tire12.4-28Reference
Ag front5.50-16Reference
Ag rear12.4-28Reference
Length312 cmReference
Height (steering wheel)153 cmReference
Shipping weight1485 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
