Tractor · 1960Unverified

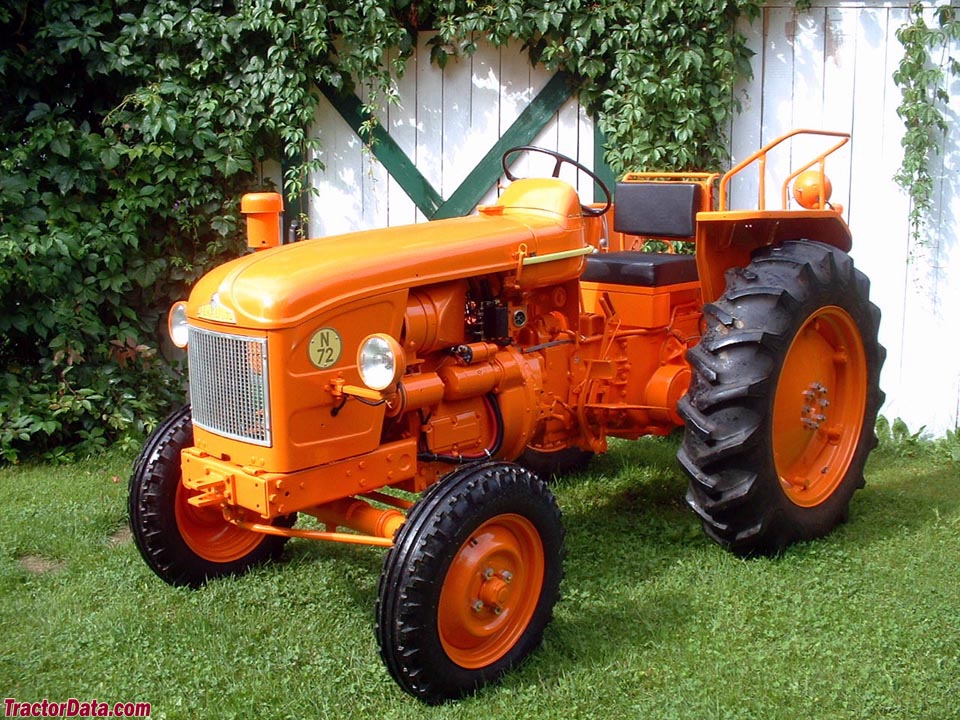

Renault N72
Renault N72 — N Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1480 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Built in Le Mans, FranceReference
Two-wheel driveReference
Manual steeringReference
Drum brakesReference
Open operator station.Reference
Engine
MWM 1.8L 2-cyl dieselReference
Fuel tank40.1 LReference
Engine18.6 kWReference
MWM AKD 112 ZReference
dieselReference
2-cylinderReference
air-cooled inlineReference
Displacement1.8 LReference
Bore/Stroke98 x 120 mmReference
Power18.6 kWReference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
PTO & Hydraulics
Total flow17.0 lpmReference
Rear PTO Type540/groundReference
Dimensions
Wheelbase171 cmReference
Weight1480 kgReference
Front tire5.50-16Reference
Rear tire11.2-28Reference
Ag front5.50-16Reference
Ag rear11.2-28Reference
Length299 cmReference
Height (steering wheel)153 cmReference
Shipping weight1480 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
