Tractor · 1998Unverified

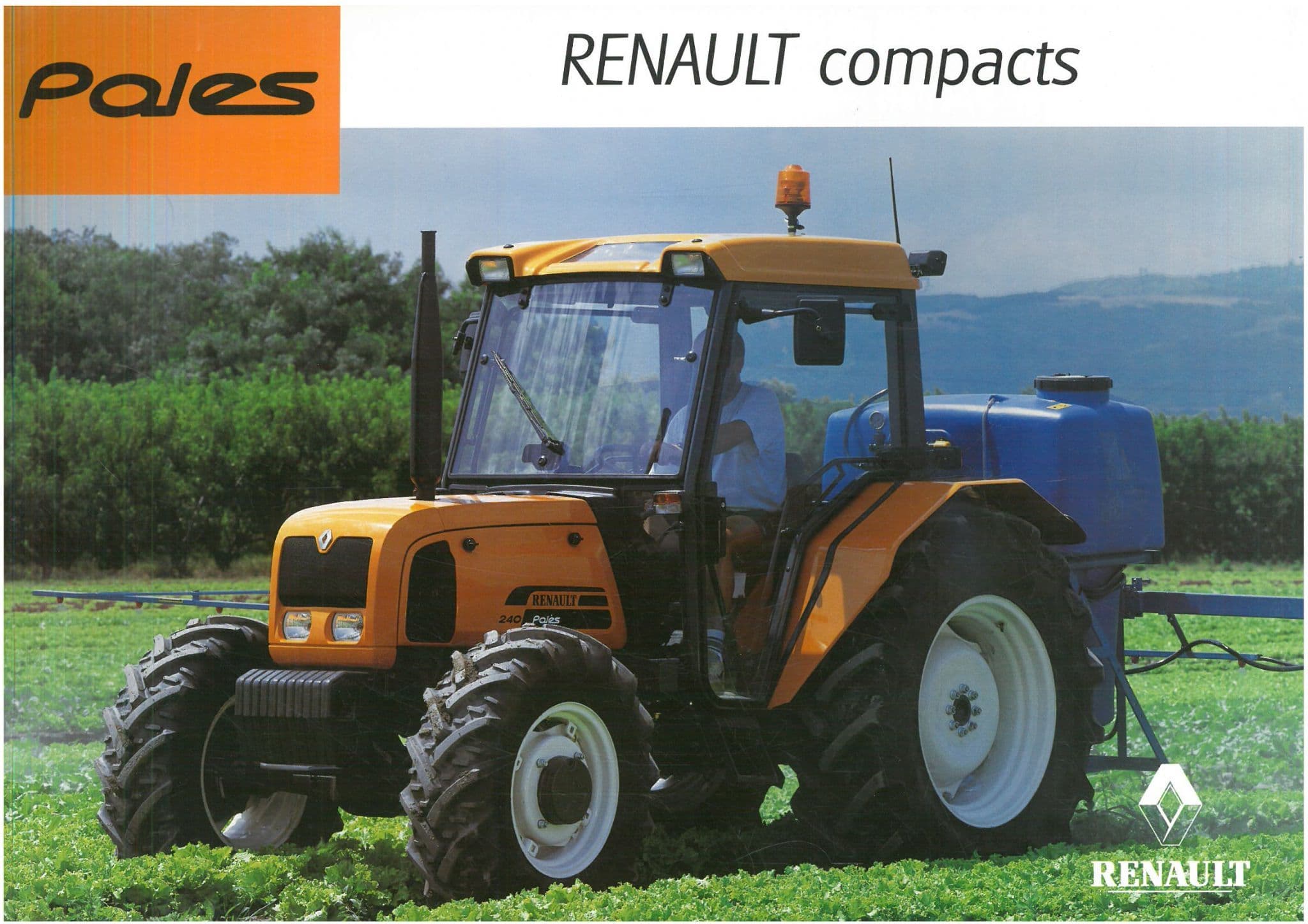

Renault Pales 210
Renault Pales 210 — Pales Series · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
5083 to 5513 pounds
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab optionalReference
Engine
Deutz 2.8L 3-cyl dieselReference
Fuel tank62.1 LReference
Engine38.8 kWReference
Deutz F3L 912Reference
dieselReference
3-cylinderReference
Displacement2.8 LReference
Bore/Stroke100 x 120 mmReference
Power38.8 kWReference
Rated RPM2350Reference
Torque177.1 NmReference
Torque RPM1500Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Total flow37.5 lpmReference
Rear lift3550 kgReference
Rear PTO Type540/groundReference
Dimensions
Wheelbase198 cmReference
Wheelbase210 cmReference
Weight5083 to 5513 poundsReference
Front tire7.50-16Reference
Rear tire14.9-28Reference
Ag front7.50-16 (2WD)Reference
Ag front12.4-20 (4WD)Reference
Ag rear14.9-28Reference
Length356 cmReference
Height228 cmReference
Weight2305 kgReference
Weight2500 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
