Tractor · 1998Unverified

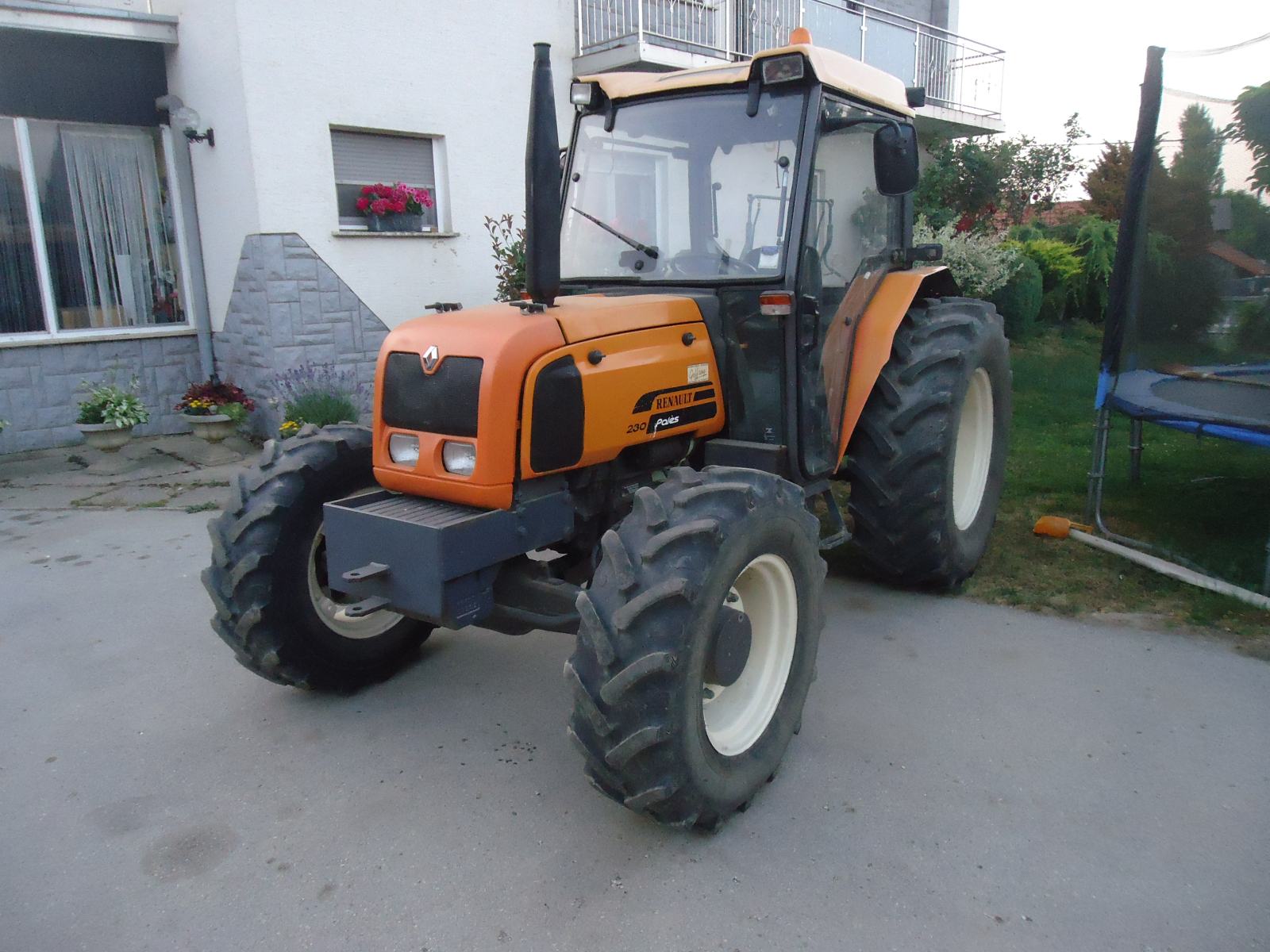

Renault Pales 230
Renault Pales 230 — Pales Series · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
5501 to 5645 pounds
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab optionalReference
Engine
Deutz 3.8L 4-cyl dieselReference
Fuel tank62.1 LReference
Engine50.0 kWReference
Deutz F4L 912Reference
dieselReference
4-cylinderReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power50.0 kWReference
Rated RPM2350Reference
Torque232.0 NmReference
Torque RPM1600Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Total flow37.5 lpmReference
Rear lift3650 kgReference
Rear PTO Type540/750/groundReference
Dimensions
Wheelbase211 cmReference
Wheelbase223 cmReference
Weight5501 to 5645 poundsReference
Front tire7.50-16Reference
Rear tire16.9-28Reference
Ag front7.50-16 (2WD)Reference
Ag front12.4-20 (4WD)Reference
Ag rear16.9-28Reference
Length373 cmReference
Height235 cmReference
Weight2495 kgReference
Weight2560 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
