Tractor · 1998Unverified

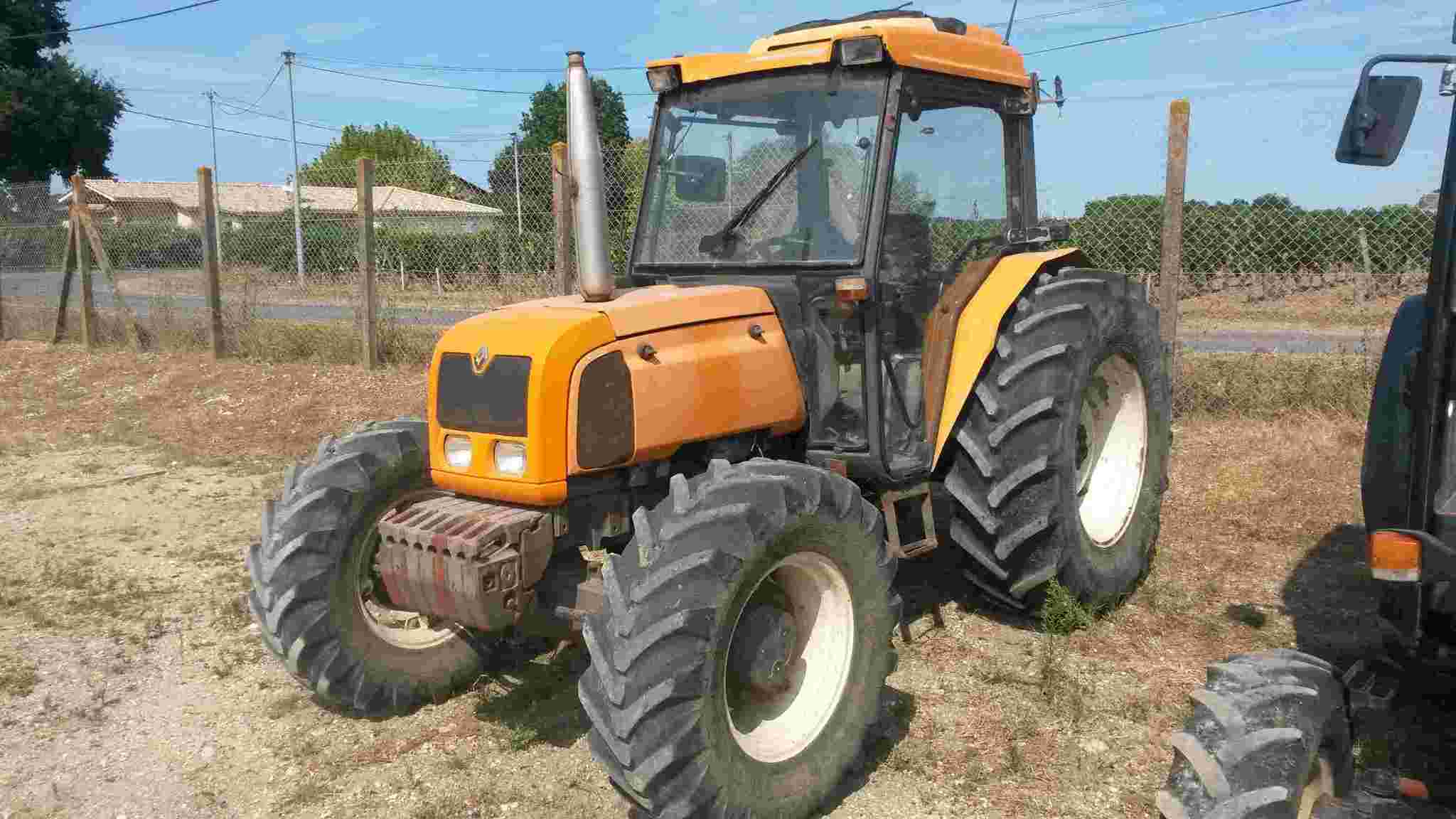

Renault Pales 240
Renault Pales 240 — Pales Series · 76 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
76 hp
Weight
2600 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab optionalReference
Engine
Deutz 4.1L 4-cyl dieselReference
Fuel tank62.1 LReference
Engine56.7 kWReference
Deutz F4L 913Reference
dieselReference
4-cylinderReference
Displacement4.1 LReference
Bore/Stroke102 x 120 mmReference
Power56.7 kWReference
Rated RPM2350Reference
Torque264.0 NmReference
Torque RPM1600Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Total flow37.5 lpmReference
Rear lift3650 kgReference
Rear PTO Type540/750/groundReference
Dimensions
Weight2600 kgReference
Front tire12.4-20Reference
Rear tire16.9-30Reference
Ag front12.4-20Reference
Ag rear16.9-30Reference
Length374 cmReference
Height237 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
