Tractor · 1964Unverified

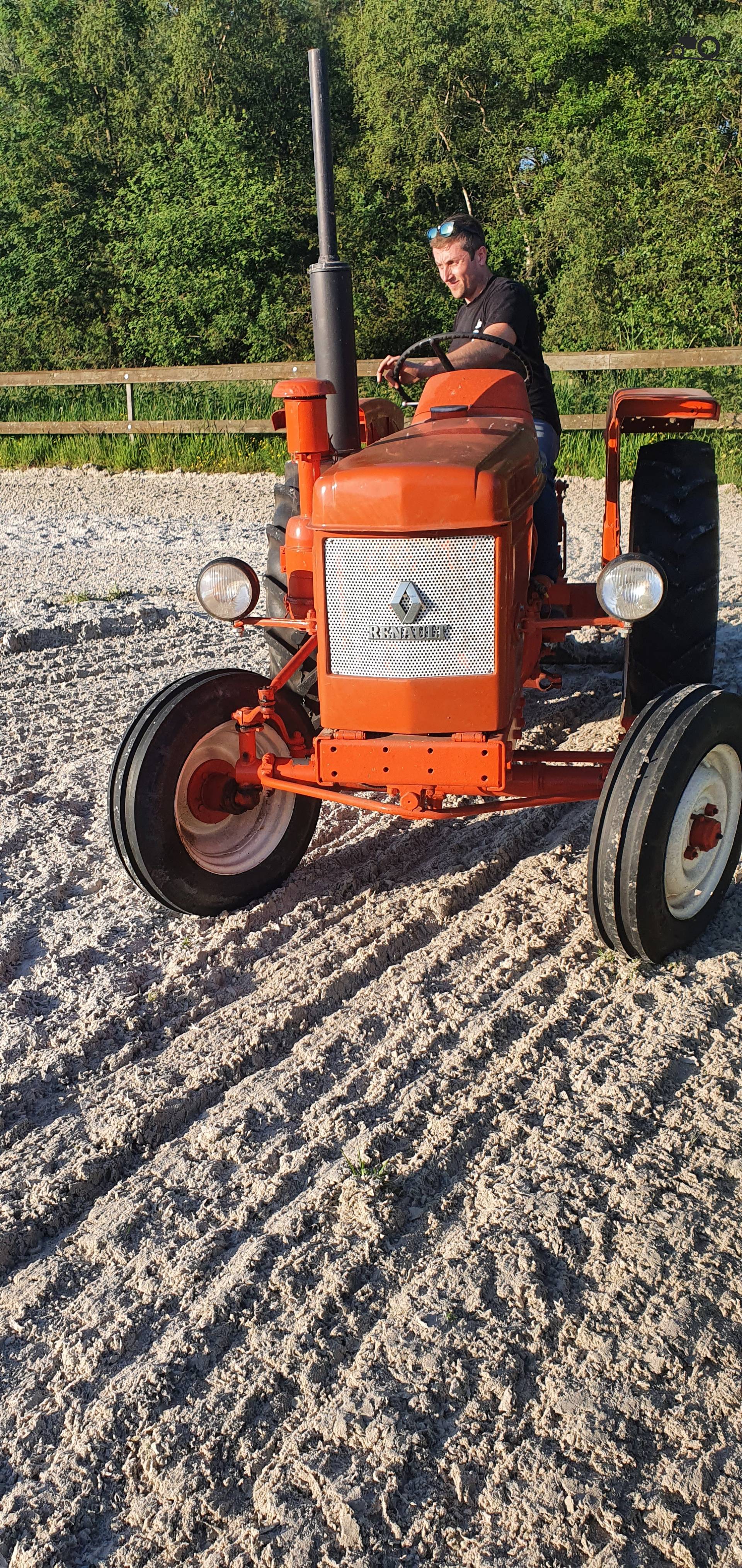

Renault Super 3
Renault Super 3 · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1480 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Built in Le Mans, FranceReference
Two-wheel driveReference
Manual steeringReference
Drum brakesReference
Open operator stationReference
Engine
MWM 1.8L 2-cylReference
Fuel tank40.1 LReference
Engine18.6 kWReference
MWM AKD 112 ZReference
2-cylinderReference
Displacement1.8 LReference
Bore/Stroke98 x 120 mmReference
Power18.6 kWReference
Rated RPM2000Reference
Transmission
6-speedReference
Gears6 forward and 1 reverseReference
PTO & Hydraulics
Total flow17.0 lpmReference
Rear PTO Type540Reference
Dimensions
Wheelbase171 cmReference
Weight1480 kgReference
Front tire5.50-16Reference
Rear tire11.2-28Reference
Ag front5.50-16Reference
Ag rear11.2-28Reference
Length299 cmReference
Height153 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
