Tractor · 1962Unverified

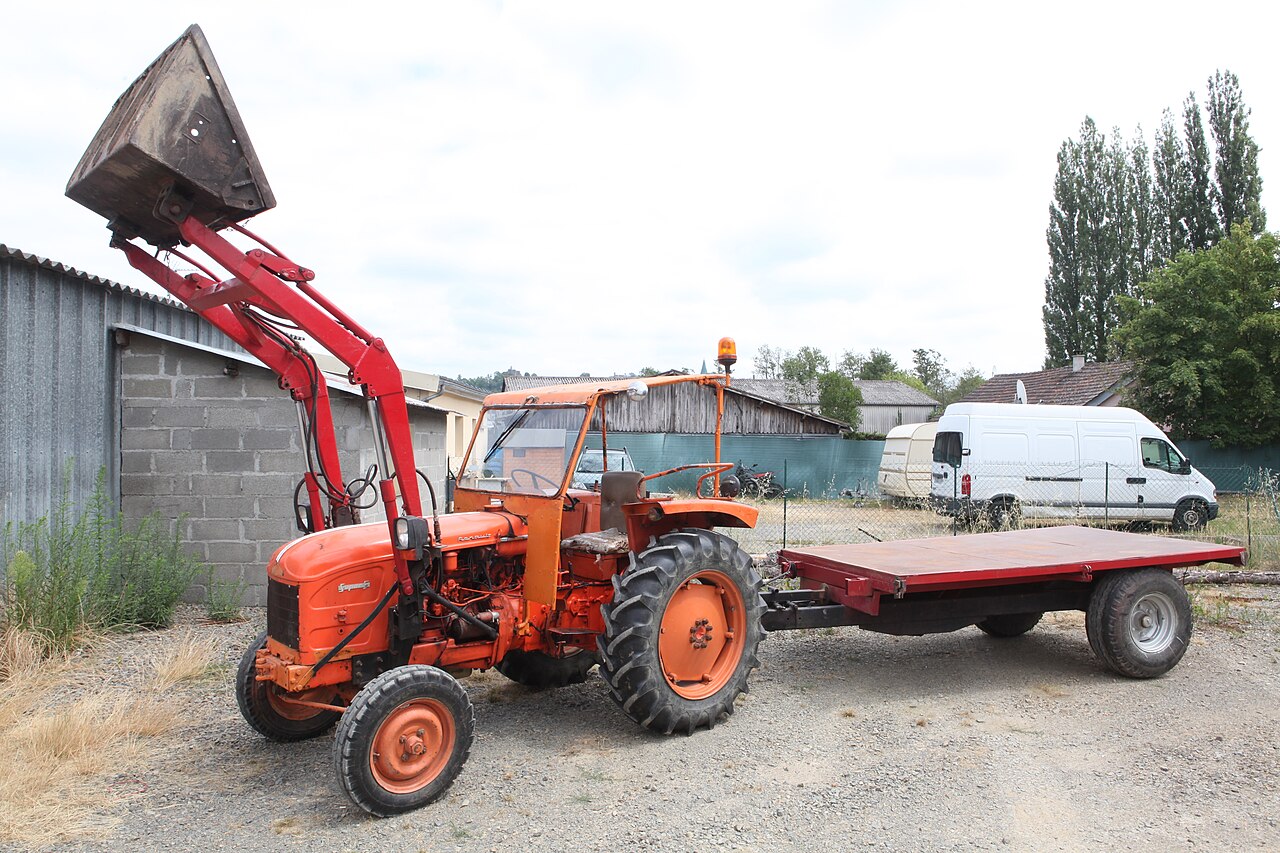

Renault Super 5
Renault Super 5 — Super Series · 35 hp. Reference specifications; pending source verification.
The Renault Super 5 is a compact tractor rated at 35 hp, featuring a 3-cylinder diesel liquid-cooled engine and two-wheel drive with a 6-speed gearbox. Manufactured from 1962 to 1965, this model is suitable for tasks associated with small to medium-sized agricultural areas of up to 200 acres. The tractor's power output and drivetrain configuration make it an option for smaller-scale farming operations.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Catalogue coverage
Variants represented
2
Richest spec table
28 rows
Recorded power
35 hp
Transmissions
6-speed gear
Production years
1962-1965
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Utility tractorReference
Two-wheel driveReference
SteeringmechanicalReference
Drum brakesReference
Engine
Renault 2.3L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine26.1 kWReference
Renault 592-30 AlfaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke98 x 98 mmReference
Power26.1 kWReference
Rated RPM2000Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
PTO & Hydraulics
Total flow17.0 lpmReference
Rear PTO Type540/groundReference
Dimensions
Wheelbase175 cmReference
Front tire5.50-16Reference
Rear tire11.2-28Reference
Ag front5.50-16Reference
Ag rear11.2-28Reference
Length312 cmReference
Height153 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
