Tractor · 1965Unverified

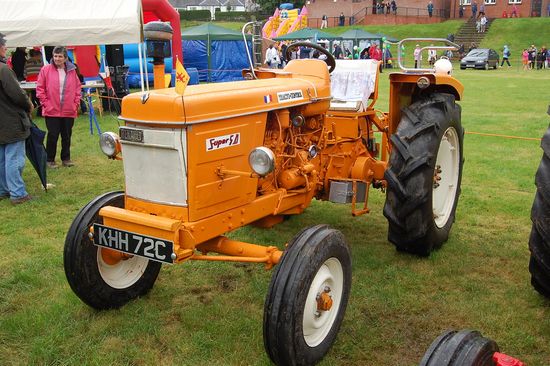

Renault Super 5D
Renault Super 5D — Super D Series · 35 hp. Reference specifications; pending source verification.
The Renault Super 5D is a compact tractor model with a rating of 35 hp. It was manufactured between 1965 and 1967. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine and a 10-speed gearbox, and is available in a two-wheel drive configuration. It has a listed weight of 1930 kg and is suitable for tasks involving up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1930 kg
Catalogue coverage
Variants represented
2
Richest spec table
28 rows
Recorded power
35 hp
Recorded weight
1930 kg
Transmissions
10-speed
Production years
1965-1967
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Two-wheel driveReference
SteeringmechanicalReference
Drum brakesReference
Engine
Renault 2.3L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine26.1 kWReference
Renault 709-30Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke98 x 98 mmReference
Power26.1 kWReference
Rated RPM2000Reference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Total flow18.2 lpmReference
Rear lift1350 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase186 cmReference
Weight1930 kgReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16Reference
Ag rear12.4-28Reference
Length327 cmReference
Height226 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
