Tractor · 2000Unverified

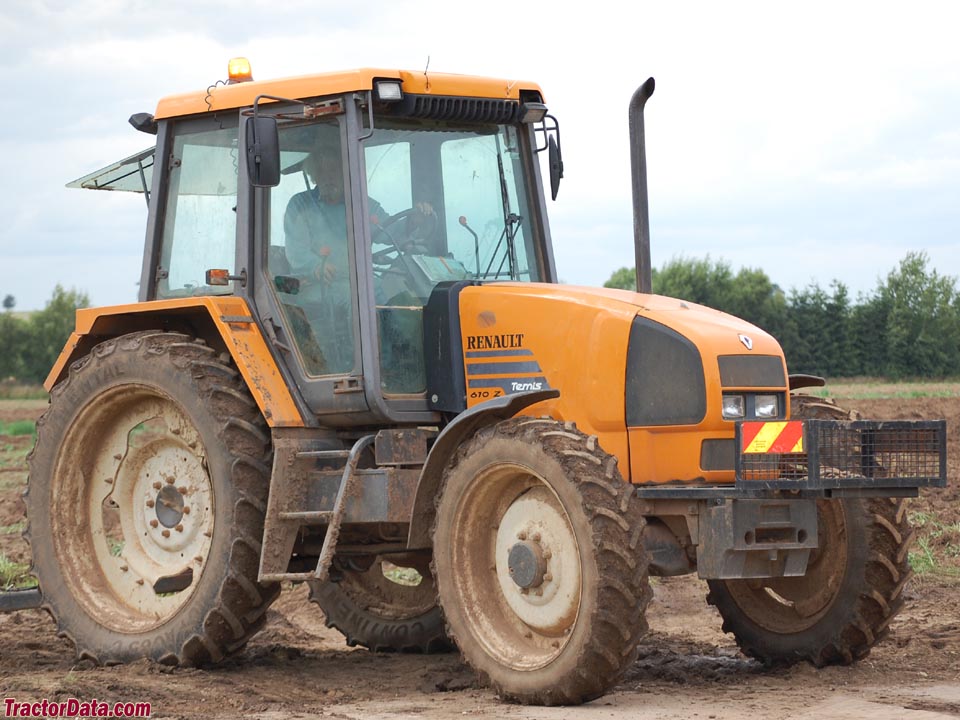

Renault Temis 610
Renault Temis 610 — Temis Series · 109 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
109 hp
Weight
5401 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab standardReference
Engine
Iveco 5.9L 6-cyl dieselReference
Fuel tank160.1 LReference
Fuel tank215.0 LReference
Engine81.3 kWReference
Iveco 8065.05NAReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke104 x 115 mmReference
Power81.3 kWReference
Rated RPM2350Reference
Torque390.1 NmReference
Torque RPM1400Reference
Transmission
16-speedReference
24-speedReference
Gears16 forward and reverseReference
Gears24 forward and 8 reverseReference
PTO & Hydraulics
Total flow85.2 lpmReference
Total flow110.1 lpmReference
Rear lift7259 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase272 cmReference
Weight5401 kgReference
Front tire13.6R28Reference
Rear tire16.9R38Reference
Ag front13.6R28Reference
Ag rear16.9R38Reference
Length488 cmReference
Height297 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
