Tractor · 1995Unverified

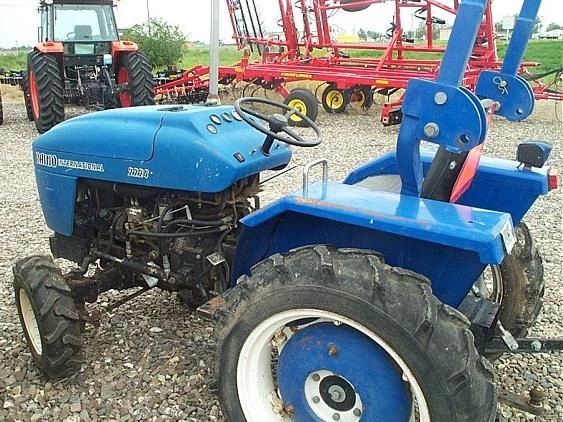

Rhino 2224
Rhino 2224 — Compact Utility tractor · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
1188 kg
Hover a source tag to verify
Overview
ManufacturerRhinoReference
Compact Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
Power steeringReference
Mechanical drum brakesReference
Two-post fixed ROPS.Reference
Variants
22202WDReference
Engine
0.9L 2-cyl dieselReference
Fuel tank21.2 LReference
Engine17.9 kWReference
dieselReference
2-cylinderReference
Displacement0.9 LReference
Power17.9 kWReference
Rated RPM2300Reference
Starter volts12Reference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
Clutch228.6mm dry discReference
PTO & Hydraulics
PTO (claimed)13.4 kWReference
Typeopen centerReference
Pump flow30.3 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)544 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase138 cmReference
Weight1188 kgReference
Front tire6.0x16Reference
Rear tire8.3x24Reference
Standard tires (ag)Front: 6.0x16. Rear: 8.3x24Reference
Length261 cmReference
Width138 cmReference
Height (ROPS)211 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
