Tractor · 1995Unverified

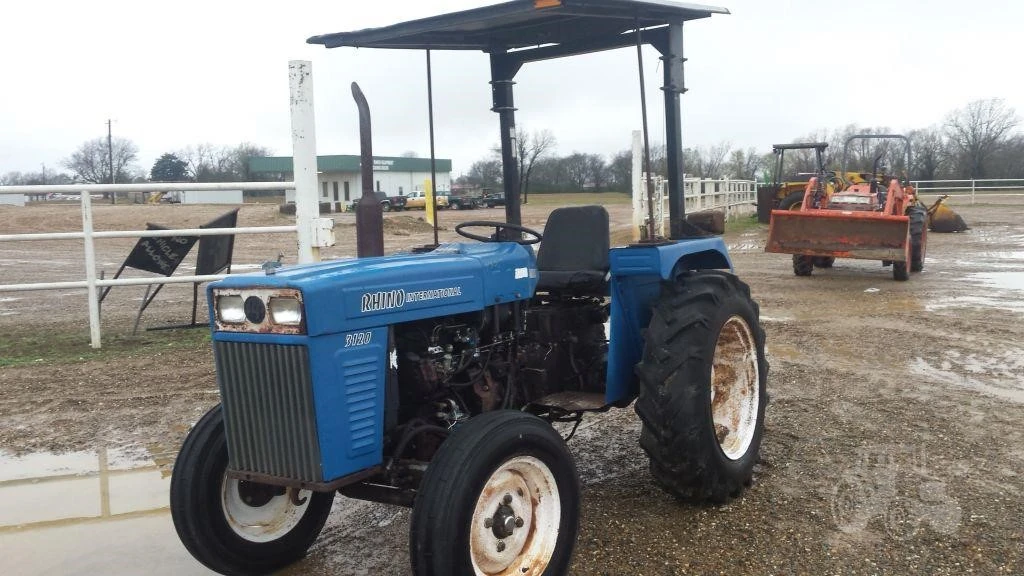

Rhino 3120
Rhino 3120 — Compact Utility tractor · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
1424 kg
Hover a source tag to verify
Overview
ManufacturerRhinoReference
Compact Utility tractorReference
Built in ChinaReference
Two-wheel driveReference
Power steeringReference
Mechanical drum brakesReference
Two-post fixed ROPS.Reference
Variants
31202WDReference
31244WDReference
Engine
1.7L 2-cyl dieselReference
Engine23.9 kWReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Power23.9 kWReference
Rated RPM2200Reference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch228.6mm dry discReference
PTO & Hydraulics
PTO (claimed)19.4 kWReference
Typeopen centerReference
Valves2Reference
Pump flow19.9 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)816 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase156 cmReference
Weight1424 kgReference
Front tire6.0x16Reference
Rear tire11.2x24Reference
Standard tires (ag)Front: 6.0x16. Rear: 11.2x24Reference
Length276 cmReference
Width170 cmReference
Height (steering wheel)137 cmReference
Height (ROPS)226 cmReference
Clearance (front axle)25 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
