The Rhino 3124 is a compact tractor model with a rated output of 26 hp, making it a smaller option within its class. Produced between 1995 and 1999, the 3124 features a 2-cylinder diesel liquid-cooled engine, which drives through four-wheel drive using an 8-speed gearbox. The tractor's listed weight is 1587 kg, and it is suited to tasks requiring around 200 acres of land.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
1587 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
26 hp
Recorded weight
1587 kg
Transmissions
8-speed gear
Production years
1995-1999
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRhinoReference
Compact Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
Power steeringReference
Mechanical drum brakesReference
Two-post fixed ROPS.Reference
Variants
31202WDReference
31244WDReference

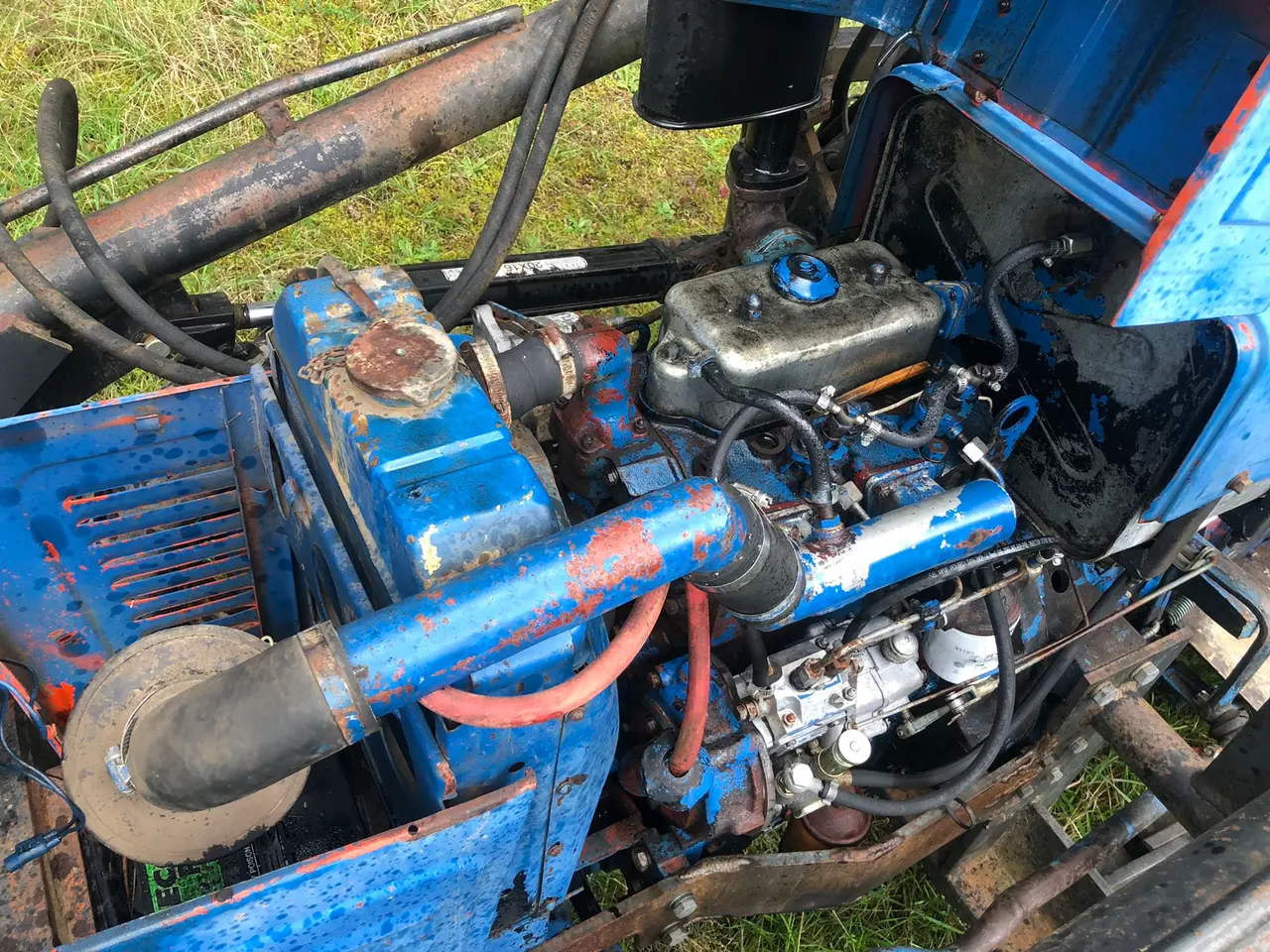

Engine
1.7L 2-cyl dieselReference
Engine23.9 kWReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Power23.9 kWReference
Rated RPM2200Reference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch228.6mm dry discReference
PTO & Hydraulics
PTO (claimed)19.4 kWReference
Typeopen centerReference
Valves2Reference
Pump flow19.9 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)816 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase162 cmReference
Weight1587 kgReference
Front tire7.5x16Reference
Rear tire11.2x24Reference
Standard tires (ag)Front: 7.5x16. Rear: 11.2x24Reference
Length276 cmReference
Width170 cmReference
Height (steering wheel)137 cmReference
Height (ROPS)226 cmReference
Clearance (front axle)25 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
