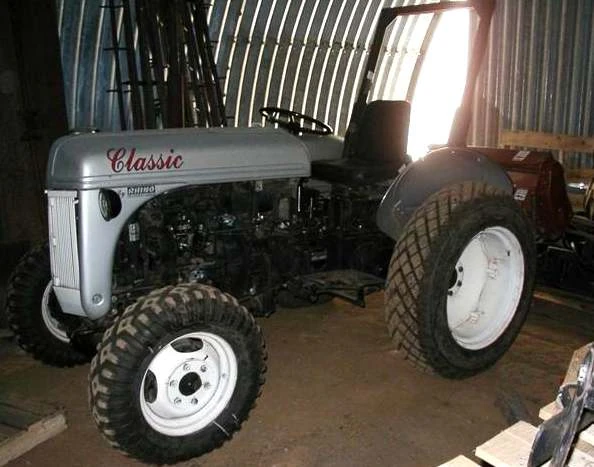

The Rhino 3324 Classic is a tractor rated at 32 hp, categorising it as one of the more compact options in its class. Manufactured between 1995 and 1999, the 3324 Classic is equipped with a 2-cylinder diesel liquid-cooled engine, which drives the mechanical front-wheel drive through an 8-speed gearbox. The listed weight of the tractor is 1587 kg, and it is suitable for tasks covering an area of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
1587 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
32 hp
Recorded weight
1587 kg
Transmissions
8-speed gear
Production years
1995-1999
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRhinoReference
Compact Utility tractorReference
Built in ChinaReference
Drive4x2 MFWD 4WDReference
Power steeringReference
Two-post folding ROPS.Reference
Variants
33202WDReference
33244WDReference
Engine
1.7L 2-cyl dieselReference
Fuel tank26.5 LReference
Engine23.9 kWReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Power23.9 kWReference
Rated RPM2200Reference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Four gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Typeopen centerReference
Valves2Reference
Pump flow19.9 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)816 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase156 cmReference
Weight1587 kgReference
Front tire7.5x16Reference
Rear tire11.2x24Reference
Standard tires (ag)Front: 7.5x16. Rear: 11.2x24Reference
Length276 cmReference
Width170 cmReference
Height (steering wheel)137 cmReference
Height (ROPS)226 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
