Tractor · 2017Unverified

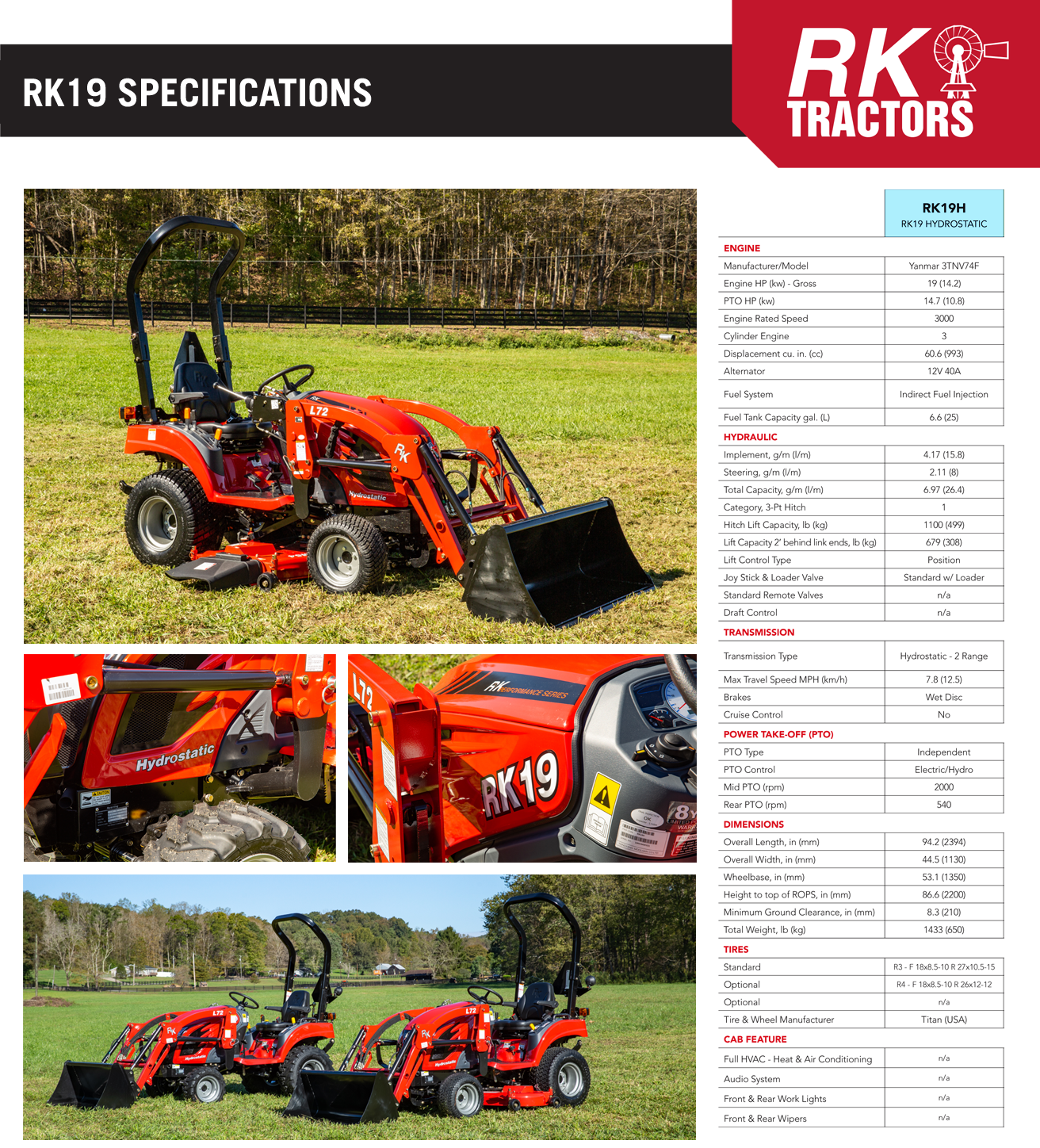

RK Tractors RK19H

Name: RK Tractors RK19H
Brand: RK Tractors

RK Tractors RK19H — Sub-Compact Utility tractor · 19 hp. Reference specifications; pending source verification.

The RK Tractors RK19H is a compact tractor model rated at 19 hp, manufactured in 2017. It features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with a hydrostatic transmission. The RK19H has a listed weight of 650 kg and is designed for tasks involving up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

19 hp

Weight

650 kg

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

19 hp

Recorded weight

650 kg

Transmissions

hydrostatic

Production years

2017-2017

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorRK Tractors (a part of Rural King)Reference

ManufacturerTYMReference

Sub-Compact Utility tractorReference

Original price was $8,299 in 2017Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS.Reference

Engine

Yanmar 1.0L 3-cyl dieselReference

Fuel tank25.0 LReference

Engine (gross)14.2 kWReference

Yanmar 3TNV74FReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke74 x 77 mmReference

Power (gross)14.2 kWReference

Fuel systemindirect injectionReference

Rated RPM3000Reference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)11.0 kWReference

Pump flow15.8 lpmReference

Total flow26.4 lpmReference

Steering flow8.0 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)498 kgReference

Rear lift (at 24"/610mm)307 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Mid PTO Type2500Reference

Dimensions

Wheelbase134 cmReference

Weight650 kgReference

Front tire16x6.50-8Reference

Rear tire24x12-12Reference

Standard tires (ag)Front: 16x6.50-8. Rear: 24x12-12Reference

Lawn/turf front16x7.5-8Reference

Lawn/turf rear24x12-12Reference

Length239 cmReference

Width113 cmReference

Height (ROPS)219 cmReference

Ground clearance21 cmReference

RK Tractors RK19H attachments

48" mid-mount mower deckReference

54" mid-mount mower deckReference

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery volts12Reference

Attachment overview

48" mid-mount mower deckReference

54" mid-mount mower deckReference

Front-end loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
