Tractor · 2017Unverified

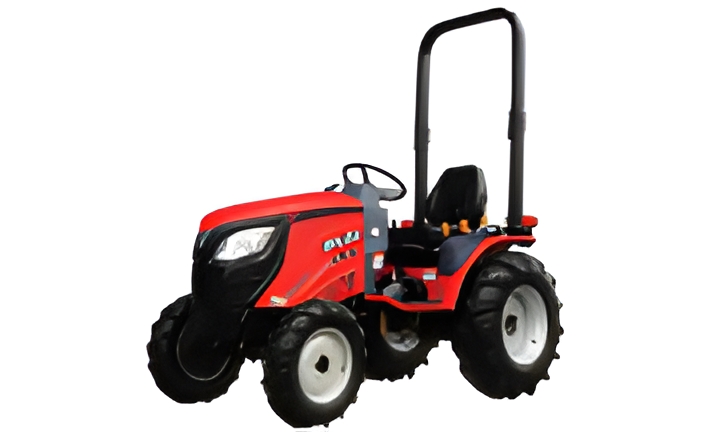

RK Tractors RK24H

Name: RK Tractors RK24H
Brand: RK Tractors

RK Tractors RK24H — Sub-Compact Utility tractor · 24 hp. Reference specifications; pending source verification.

The RK Tractors RK24H is a tractor with a rated power of 24 hp, positioning it at the lighter end of its class. Built in 2017, this model features a 3-cylinder diesel liquid-cooled engine paired with a four-wheel drive system and a hydrostatic transmission. Its operating weight is listed as 730 kg, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Max power

24 hp

Weight

730 kg

Catalogue coverage

Variants represented

Richest spec table

110 rows

Recorded power

24 hp

Recorded weight

730 kg

Transmissions

hydrostatic

Production years

2017-2017

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorRK Tractors (a part of Rural King)Reference

ManufacturerTYMReference

Sub-Compact Utility tractorReference

Original price was $10,499 in 2017Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS.Reference

Engine

Yanmar 1.3L 3-cyl dieselReference

Fuel tank22.0 LReference

Engine (gross)17.9 kWReference

Yanmar 3TNV80FReference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.3 LReference

Bore/Stroke80 x 84 mmReference

Power (gross)17.9 kWReference

Fuel systemindirect injectionReference

Rated RPM3000Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3 cylindersReference

Rated engine speed3,000 RPMReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

forward and reverse options2 RangeReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)14.0 kWReference

Valves1Reference

Pump flow15.8 lpmReference

Total flow26.3 lpmReference

Steering flow10.5 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)600 kgReference

Rear lift (at 24"/610mm)479 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase146 cmReference

Weight730 kgReference

Weight123 kgReference

Weight328 kgReference

Lawn/turf front20x8-10Reference

Lawn/turf rear29x12.5-15Reference

Industrial front20x8-10Reference

Industrial rear27x12.5-15Reference

Length255 cmReference

Width116 cmReference

Height (ROPS)231 cmReference

Ground clearance23 cmReference

RK Tractors RK24H attachments

60" mid-mount mower deckReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery volts12Reference

Alternator size12V 40AReference

Attachment overview

60" mid-mount mower deckReference

Front-end loaderReference

BackhoeReference

60" Mower deck

Typemid-mount RK Tractors M60Reference

Type3-bladeReference

Cutting width152 cmReference

Cut height2 to 10 cmReference

RK Tractors BH6.5 Backhoe

Backhoe typeRK Tractors BH6.5 BackhoeReference

Transport height167 cmReference

Bucket width15 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width45 cmReference

2-Foot flat digging depth195 cmReference

Reach from pivot248 cmReference

Loading height152 cmReference

Bucket Rotation185°Reference

Swing Arc140°Reference

Bucket force929 kgReference

Dipperstick force569 kgReference

General

Make & ModelYanmar 3TNV80FReference

Cruise controlTRUEReference

Differential lockTRUEReference

SCV controlJoystickReference

Capacities

Capacity77.3 cu. inReference

Power

Max Power24 hpReference

PTO

PTO Power18.8 hpReference

Rear PTO PowerTRUEReference

Rear PTO ControlElectric/HydroReference

Rear PTO RPM540 RPMReference

Mid PTOTRUEReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

BrakesWet DiscReference

Steering typeHydrostatic power steeringReference

Hydraulics

Pump Rated Output (total)6.95 gpmReference

Remote Valves1 SetReference

Steering & Implements flow2.77 gpm (4.18 gpm)Reference

Rear Hitch category (SAE designation)category 1Reference

Rear Hitch maximum lift capacity600.1 kgReference

Dimensions & weight

Height Over ROPS231.9 cmReference

Overall Length255.3 cmReference

Overall Width116.3 cmReference

Overall weight730.3 kgReference

Wheels & tyres

Rear Wheel TypeR4 - 27x12.5-15 / R3 - 29x12.5-15Reference

Front Wheel TypeR4 - 20x8-10 / R3 - 20x8-10Reference

Operator station

Cab AvailabilityOptionalReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
