Tractor · 2017Unverified

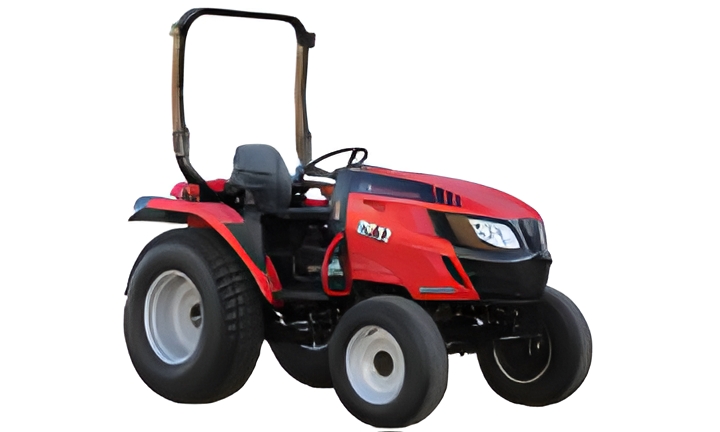

RK Tractors RK37S

Name: RK Tractors RK37S
Brand: RK Tractors

RK Tractors RK37S — Compact Utility tractor · 37 hp. Reference specifications; pending source verification.

The RK Tractors RK37S is a tractor rated at 37 hp — making it one of the more compact options in its class. It was manufactured in 2017. Under the hood is a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. Listed weight is 1390 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

37 hp

Max power

37.4 hp

Weight

1390 kg

Catalogue coverage

Variants represented

Richest spec table

106 rows

Recorded power

37 hp

Recorded weight

1390 kg

Transmissions

12-speed syncro shuttle

Production years

2017-2017

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorRK Tractors (a part of Rural King)Reference

ManufacturerTYMReference

Compact Utility tractorReference

Original price was $16,999 in 2017Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS.Reference

Variants

RK37Sshuttle ROPSReference

RK37Hhydrostatic ROPSReference

RK37SCshuttle cabReference

RK37HChydrostatic cabReference

Engine

Yanmar 1.6L 3-cyl dieselReference

Fuel tank34.1 LReference

Engine (gross)27.9 kWReference

Yanmar 3TNV88-CRReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.6 LReference

Bore/Stroke86 x 90 mmReference

Power (gross)27.9 kWReference

Fuel systemcommon rail direct injectionReference

Rated RPM3000Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3 cylinderReference

Rated engine speed3,000 RPMReference

Transmission

12-speed syncro shuttleReference

Typesyncro shuttleReference

Gears12 forward and reverseReference

forward and reverse options12F/12RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)22.5 kWReference

Valves1Reference

Pump flow24.2 lpmReference

Total flow41.6 lpmReference

Steering flow17.4 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1200 kgReference

Rear lift (at 24"/610mm)800 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase163 cmReference

Weight1390 kgReference

Front tire7-16Reference

Rear tire11.2x24Reference

Weight607 kgReference

Standard tires (ag)Front: 7-16. Rear: 11.2x24Reference

Lawn/turf front28x8.5-15Reference

Lawn/turf rear41x14-20Reference

Industrial front10-16.5Reference

Industrial rear43x16-20Reference

Length320 cmReference

Width135 cmReference

Height (ROPS)240 cmReference

Ground clearance32 cmReference

RK Tractors RK37S attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Battery volts12Reference

Alternator size12V 55AReference

Attachment overview

Front-end loaderReference

BackhoeReference

RK Tractors BH7.5 Backhoe

Backhoe typeRK Tractors BH7.5 BackhoeReference

Transport height216 cmReference

Bucket width22 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width45 cmReference

Bucket width60 cmReference

2-Foot flat digging depth231 cmReference

Reach from pivot313 cmReference

Loading height228 cmReference

Bucket Rotation149°Reference

Swing Arc180°Reference

Bucket force2065 kgReference

Dipperstick force1147 kgReference

General

Make & ModelYanmar 3TNV88-CRReference

Cruise controlFALSEReference

Differential lockTRUEReference

SCV controlJoystickReference

Capacities

Capacity100.2 cu. in.Reference

Power

Max Power37.4 hpReference

PTO

PTO Power30.2 hpReference

Rear PTO PowerTRUEReference

Rear PTO ControlElectric/HydroReference

Rear PTO RPM540 rpmReference

Steering & brakes

BrakesWet DiscReference

Steering typeHydrostatic power steeringReference

Hydraulics

Pump Rated Output (total)11 gpmReference

Remote Valves1 SetReference

Steering & Implements flow4.6 gpm (6.4 gpm)Reference

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch maximum lift capacity1,200.2 kgReference

Dimensions & weight

Height Over ROPS240 cmReference

Overall Length320 cmReference

Overall Width135.9 cmReference

Overall weight1,390.3 kgReference

Wheels & tyres

Front Wheel TypeR4 Titan - 10-16.5 / R3 Titan - 7-16 / R1 Titan - 28x8 5-15Reference

Operator station

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
