Tractor · 2018Unverified

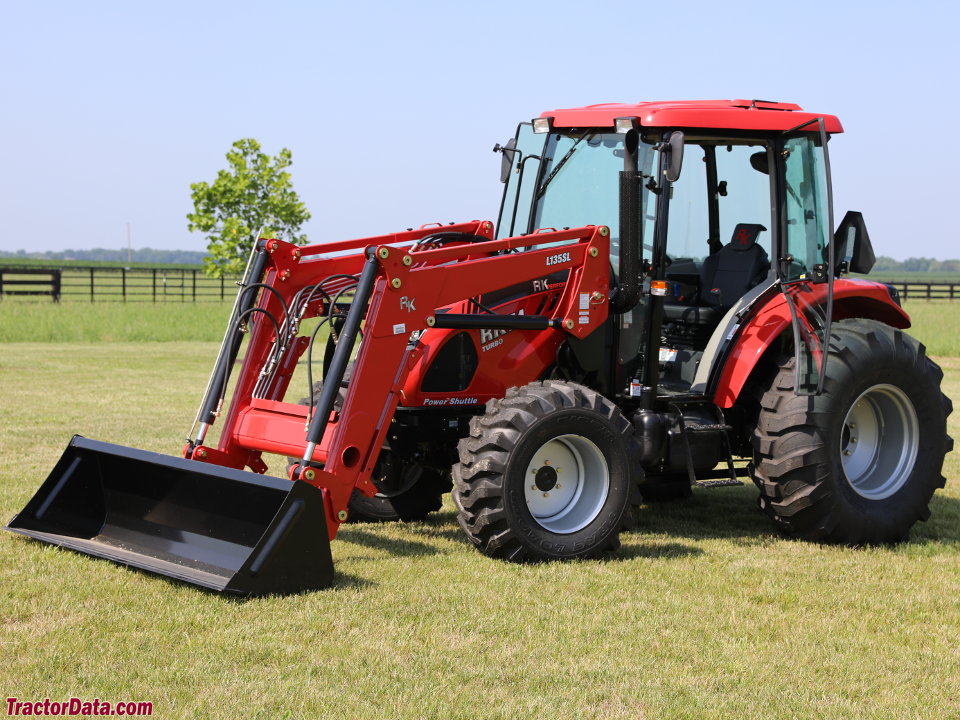

RK Tractors RK74PSC
RK Tractors RK74PSC — Utility tractor · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
2745 kg
Hover a source tag to verify
Overview
DistributorRK Tractors (a part of Rural King)Reference
ManufacturerTYMReference
Utility tractorReference
Original price was $37,999 in 2018Reference
Four-wheel driveReference
Power steeringReference
Cab standard with air-conditioning.Reference
Engine
Deutz 2.9L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine (gross)55.2 kWReference
Deutz TCD 2.9 L4Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke91 x 109 mmReference
EmissionsTier IVReference
Power (gross)55.2 kWReference
Fuel systemcommon rail direct injectionReference
Rated RPM2200Reference
Starter typeelectricReference
Transmission
16-speed power shuttleReference
Typepower shuttleReference
Gears16 forward and reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)47.8 kWReference
Typeopen centerReference
Pump flow39.0 lpmReference
Total flow60.9 lpmReference
Steering flow22.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)2320 kgReference
Rear lift (at 24"/610mm)1548 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/750 (1.375)Reference
Dimensions
Wheelbase218 cmReference
Weight2745 kgReference
Front tire11.2-24Reference
Rear tire19.6-30Reference
Standard tires (ag)Front: 11.2-24. Rear: 19.6-30Reference
Lawn/turf front12-20.5Reference
Lawn/turf rear22.4-25.5Reference
Industrial front15-19.5Reference
Industrial rear18.4-24Reference
Length400 cmReference
Width194 cmReference
Height (cab)262 cmReference
Ground clearance46 cmReference
RK Tractors RK74PSC attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
