Tractor · 1989Unverified

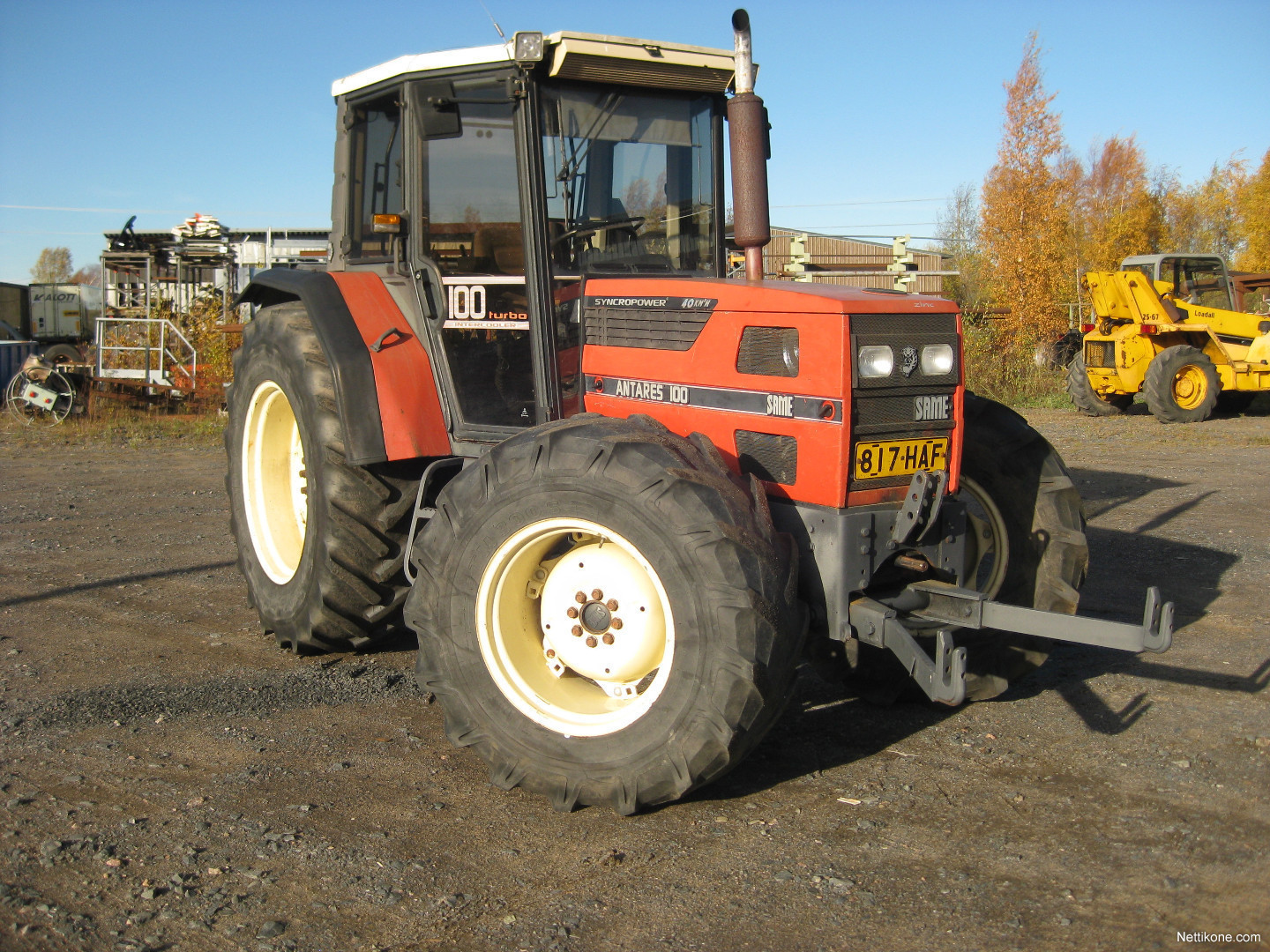

SAME Antares 100
SAME Antares 100 — Antares Series · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
3610 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic push button front and rearReference
Power steeringReference
Hydraulic wet disc front and rear brakesReference
ROPS standard. Optional cab with air-conditioning.Reference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine74.6 kWReference
SAME 1000.4 ATIReference
turbocharged intercooled dieselReference
4-cylinderReference
air-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Power74.6 kWReference
Rated RPM2500Reference
Starter volts12Reference
Starter power3.5 kWReference
Transmission
40-speedReference
30-speedReference
32-speedReference
Gears40 forward and reverseReference
Clutchdry plateReference
Gears30 forward and reverseReference
Gears32 forward and reverseReference
PTO & Hydraulics
Pump flow42.4 lpmReference
Rear lift4760 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTOoptionalReference
Front PTO Type1000Reference
Dimensions
Wheelbase232 cmReference
Weight3610 kgReference
Front tire14.9-24Reference
Rear tire16.9-34Reference
Ag front14.9-24Reference
Ag rear16.9-34Reference
Ag front12.4-28Reference
Ag front13.6-24Reference
Ag front16.9-24Reference
Ag rear13.6-38Reference
Ag rear18.4-30Reference
Ag rear18.4-34Reference
Length378 cmReference
Length410 cmReference
Width202 cmReference
Height (hood)162 cmReference
Height (cab)259 cmReference
Ground clearance45 cmReference
Front tread162 to 181 cmReference
Rear tread149 to 210 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps64Reference
Charging volts12Reference
Battery volts12Reference
Battery AH110Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
