Tractor · 1991Unverified

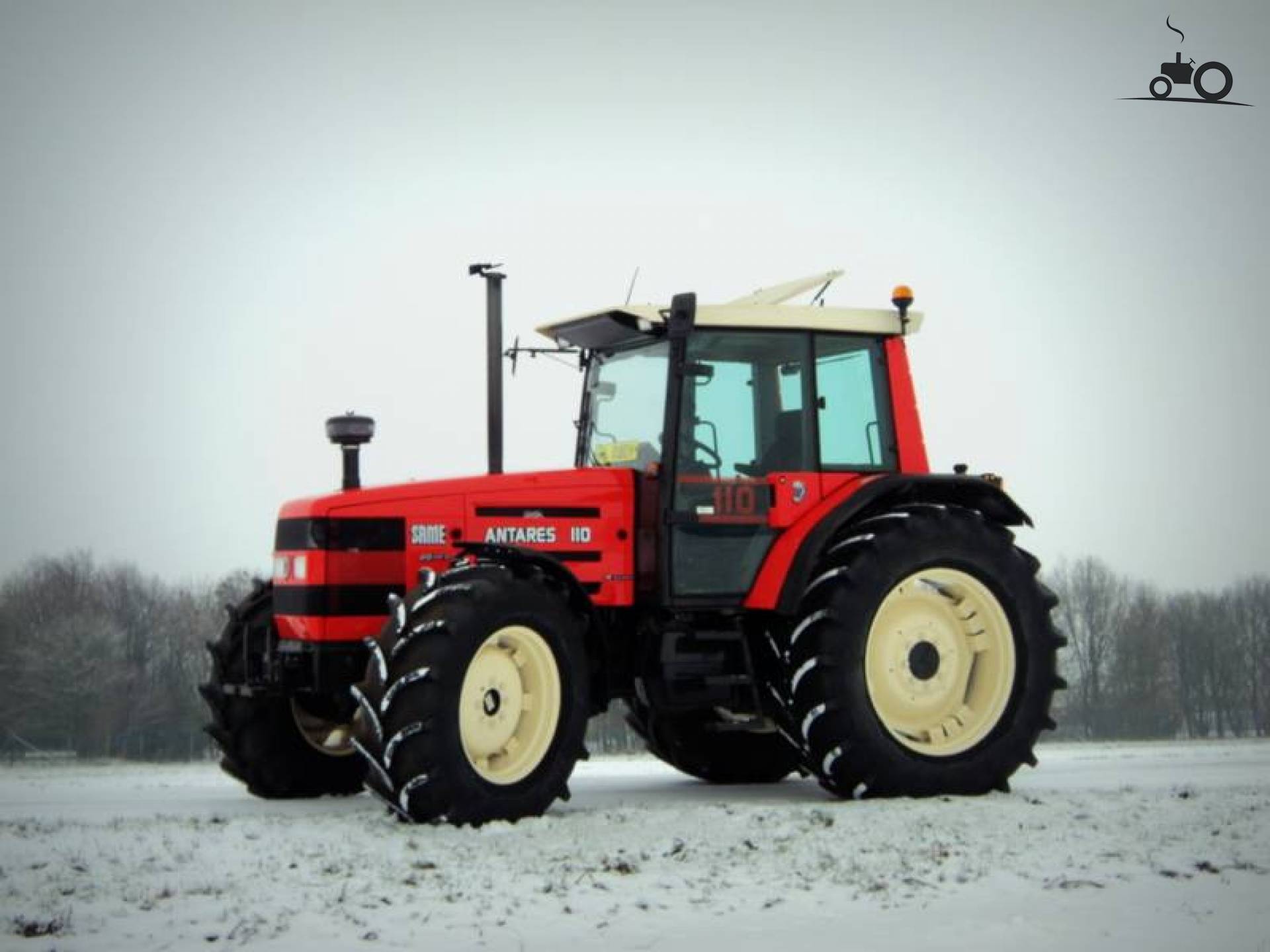

SAME Antares 110
SAME Antares 110 — Antares Series · 109 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
109 hp
Weight
4649 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab optional with available air-conditioning.Reference
Variants
8610similar AGCO Allis modelReference
Engine
SAME 6.0L 6-cyl dieselReference
Fuel tank230.1 LReference
Engine81.0 kWReference
SAME 1000.6 AReference
dieselReference
6-cylinderReference
air-cooledReference
Displacement6.0 LReference
Bore/Stroke105 x 115 mmReference
Power81.0 kWReference
Rated RPM2500Reference
Transmission
24-speedReference
48-speed partial power shiftReference
Gears24 forward and 12 reverseReference
Typepartial power shiftReference
Gears48 forward and reverseReference
PTO & Hydraulics
Pump flow57.5 lpmReference
Rear lift5700 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase275 cmReference
Weight4649 kgReference
Front tire16.9R24Reference
Rear tire18.4R34Reference
Standard tires (ag)Front: 16.9R24. Rear: 18.4R34Reference
Optional tires (ag)Front: 14.6R30. Rear: 18.4R38Reference
Optional tires (ag)Front: 420/70R28. Rear: 480/70R38Reference
Length465 cmReference
Width221 cmReference
Height (hood)183 cmReference
Height (cab)275 cmReference
Ground clearance40 cmReference
Front tread180 to 199 cmReference
Rear tread175 to 225 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
