Tractor · 1991Unverified

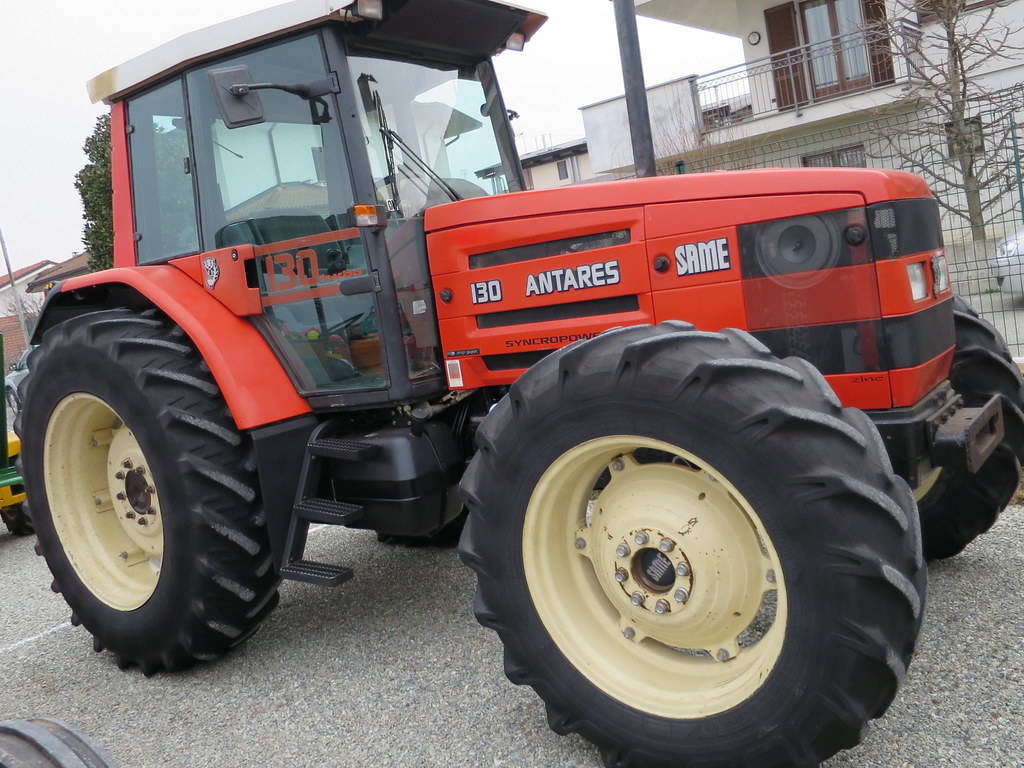

SAME Antares 130

Name: SAME Antares 130
Brand: SAME

SAME Antares 130 — Antares Series · 125 hp. Reference specifications; pending source verification.

The SAME Antares 130 is a tractor with a rated output of 125 hp, categorising it as a high-powered machine within its class. Produced from 1991 to 1996, the Antares 130 features a 6-cylinder turbocharged diesel air-cooled engine, which powers a four-wheel drive system via a powershift transmission. Its listed weight is 4849 kg, and it is suitable for tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

125 hp

Weight

4849 kg

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

125 hp

Recorded weight

4849 kg

Transmissions

24-speed

Production years

1991-1996

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSAMEReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Cab optional with available air-conditioning.Reference

Variants

8630similar AGCO Allis modelReference

Engine

SAME 6.0L 6-cyl dieselReference

Fuel tank230.1 LReference

Engine93.5 kWReference

SAME 1000.6 ATReference

turbocharged dieselReference

6-cylinderReference

air-cooledReference

Displacement6.0 LReference

Bore/Stroke105 x 115 mmReference

Power93.5 kWReference

Rated RPM2500Reference

Transmission

24-speedReference

48-speed partial power shiftReference

Gears24 forward and 12 reverseReference

Gears24 forward and reverseReference

Typepartial power shiftReference

Gears48 forward and reverseReference

PTO & Hydraulics

Pump flow57.5 lpmReference

Rear lift6201 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase275 cmReference

Weight4849 kgReference

Front tire14.9R30Reference

Rear tire18.4R38Reference

Standard tires (ag)Front: 14.9R30. Rear: 18.4R38Reference

Optional tires (ag)Front: 16.9R30. Rear: 20.8R38Reference

Optional tires (ag)Front: 480/70R28. Rear: 520/70R38Reference

Length458 cmReference

Width221 cmReference

Height (hood)187 cmReference

Height (cab)280 cmReference

Ground clearance44 cmReference

Front tread180 to 205 cmReference

Rear tread175 to 225 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
