Tractor · 1993Unverified

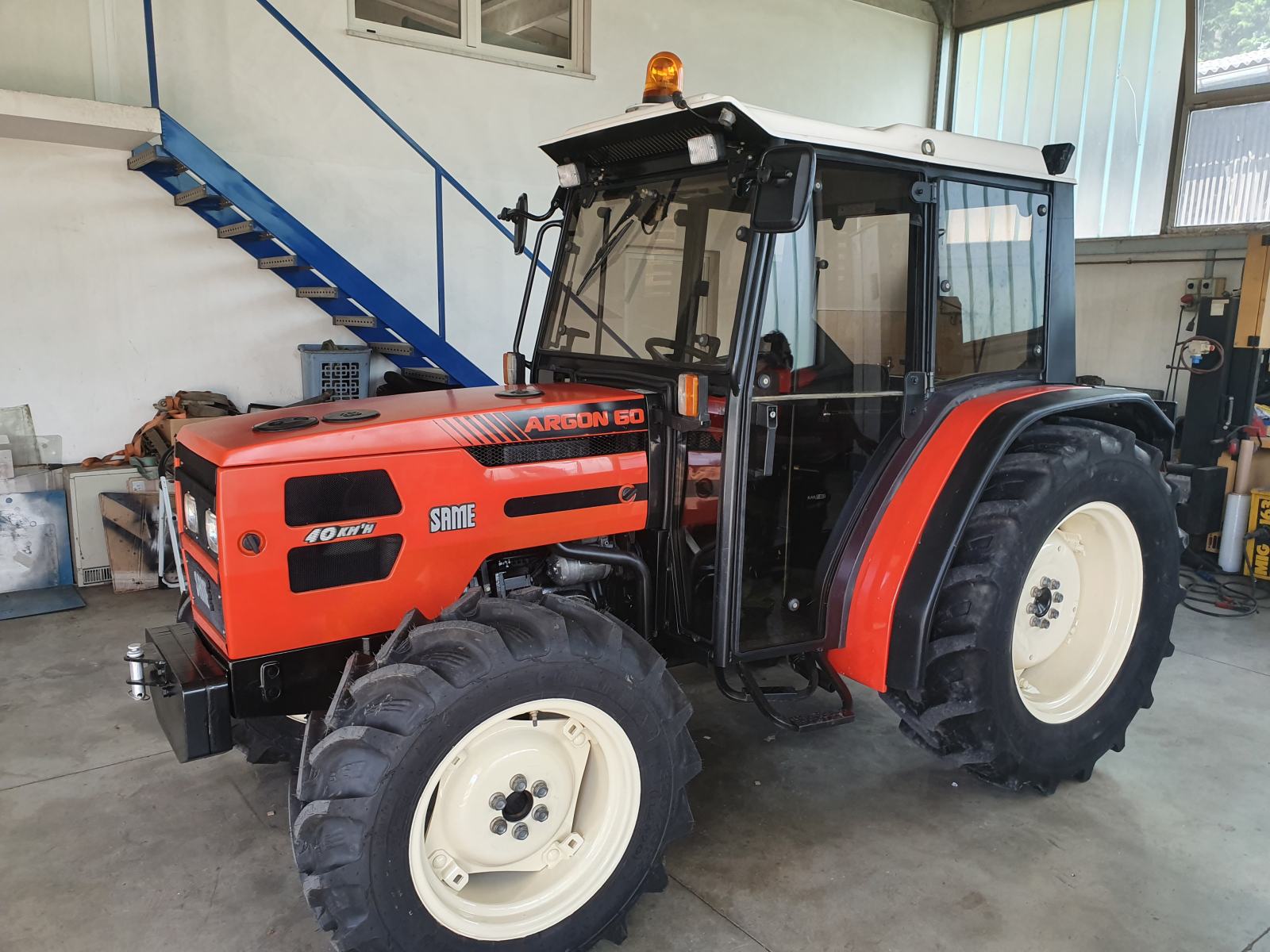

SAME Argon 60

Name: SAME Argon 60
Brand: SAME

SAME Argon 60 — Argon Series · 59 hp. Reference specifications; pending source verification.

The SAME Argon 60 is a tractor with a power rating of 59 hp, making it a compact option in its class. It was manufactured from 1993 to 2001 and features a 3-cylinder diesel air-cooled engine, which transmits power to four-wheel drive via an 8-speed gearbox. The listed weight range is 4542 to 5071 pounds. This model is suited to tasks covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

59 hp

Weight

4542 to 5071 pounds

Catalogue coverage

Variants represented

Richest spec table

70 rows

Recorded power

59 hp

Recorded weight

2060 kg

Transmissions

8-speed mechanical shuttle

Production years

1993-2001

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSAMEReference

Utility tractorReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Four-post ROPS.Reference

Variants

Argon F 65orchardReference

564-60 Cronosimilar Lamborghini modelReference

H-306 XEsimilar Hurlimann modelReference

5660similar AGCO Allis modelReference

Engine

SAME 3.0L 3-cyl dieselReference

Fuel tank57.9 LReference

Engine44.0 kWReference

SAME 1000.3 AReference

dieselReference

3-cylinderReference

air-cooledReference

Displacement3.0 LReference

Bore/Stroke105 x 115 mmReference

Power44.0 kWReference

Rated RPM2350Reference

Starter volts12Reference

Transmission

8-speed mechanical shuttleReference

12-speed creeperReference

16-speedReference

24-speed creeperReference

Typemechanical shuttleReference

Gears8 forward and reverseReference

TypecreeperReference

Gears12 forward and reverseReference

Gears16 forward and 8 reverseReference

Gears24 forward and 12 reverseReference

PTO & Hydraulics

Valves2 or 3Reference

Pump flow32.9 lpmReference

Rear TypeIIReference

Rear lift2960 kgReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Rear PTO Type540/1000Reference

Rear PTO Type1000Reference

Dimensions

2WD Wheelbase210 cmReference

4WD Wheelbase205 cmReference

Weight4542 to 5071 poundsReference

Front tire7.50-16Reference

2WD Rear tire420/70R28Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 420/70R28Reference

4WD Standard tires (ag)Front: 320/70R20. Rear: 420/70R28Reference

2WD Optional tires (ag)Front: 6.00-19. Rear: 12.4R32Reference

2WD Optional tires (ag)Front: 7.50-16. Rear: 420/70R30Reference

2WD Optional tires (ag)Front: 6.50-20. Rear: 12.4R36Reference

4WD Optional tires (ag)Front: 8.3R24. Rear: 12.4R32Reference

4WD Optional tires (ag)Front: 360/70R20. Rear: 420/70R30Reference

4WD Optional tires (ag)Front: 11.2R24. Rear: 12.4R36Reference

Length358 cmReference

Width178 cmReference

2WD Weight2060 kgReference

4WD Weight2300 kgReference

2WD Ground clearance43 cmReference

4WD Ground clearance35 cmReference

2WD Front tread127 to 156 cmReference

4WD Front tread134 to 173 cmReference

Rear tread139 to 180 cmReference

Steering wheel153 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

SAME Argon 60 Height

Hood139 cmReference

ROPS227 cmReference

Speeds

With 420/70R30 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
