Tractor · 2003Unverified

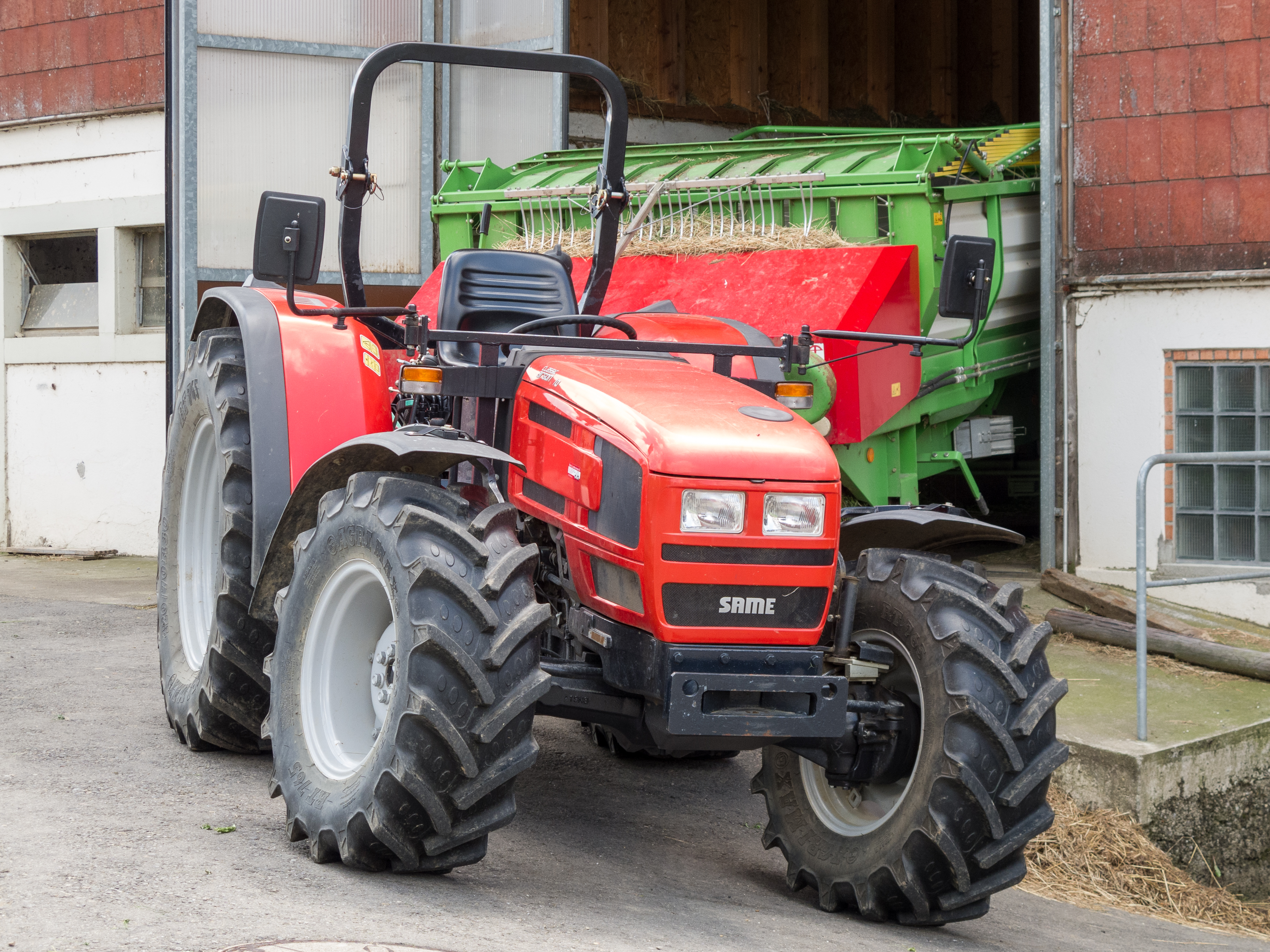

SAME Argon Classic 70
SAME Argon Classic 70 — Argon Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
4564 to 5027 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Two- or four-wheel driveReference
Engine
SAME 3.0L 3-cyl dieselReference
Fuel tank50.0 LReference
Engine52.2 kWReference
SAME 1000.3 WTReference
turbocharged dieselReference
3-cylinderReference
air-cooledReference
Displacement3.0 LReference
Bore/Stroke105 x 116 mmReference
Power52.2 kWReference
Rated RPM2200Reference
Transmission
20-speed partially synchronizedReference
30-speed creeperReference
Typepartially synchronizedReference
Gears20 forward and 10 reverseReference
TypecreeperReference
Gears30 forward and 15 reverseReference
PTO & Hydraulics
Pump flow45.0 lpmReference
Rear lift3000 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase195 cmReference
Weight4564 to 5027 poundsReference
Rear tire420/70R30Reference
Ag rear420/70R30Reference
Length302 cmReference
Height210 cmReference
2WD Weight2070 kgReference
4WD Weight2280 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
