Tractor · 1989Unverified

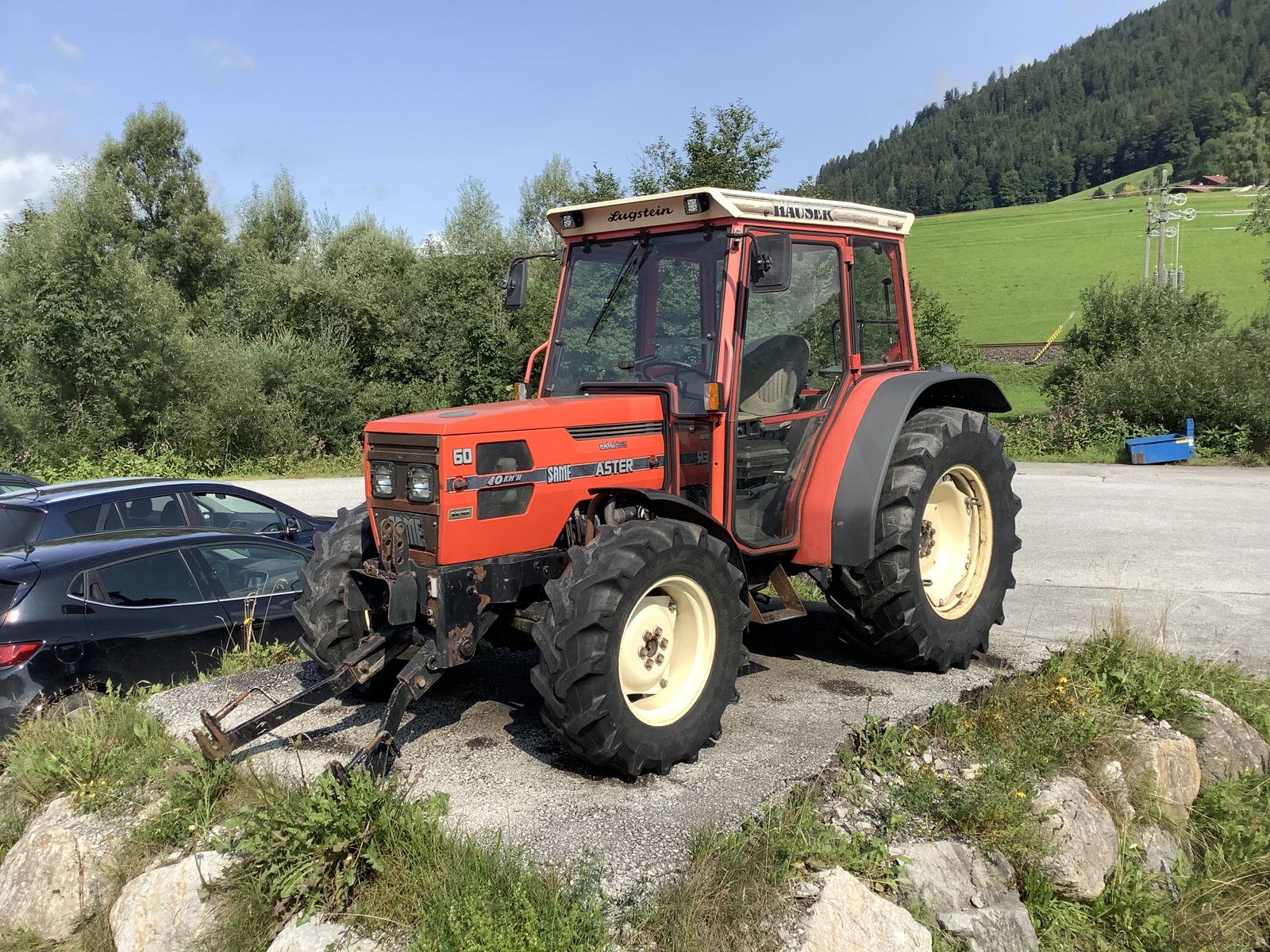

SAME Aster 60
SAME Aster 60 — Aster Series · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
4960 to 5291 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS. Cab optional with heat.Reference
Engine
SAME 3.0L 3-cyl dieselReference
Fuel tank81.8 LReference
Engine44.0 kWReference
SAME 1000.3AReference
dieselReference
3-cylinderReference
air-cooledReference
Displacement3.0 LReference
Bore/Stroke105 x 115 mmReference
Power44.0 kWReference
Air cleanerdryReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
16-speed creeperReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Clutchdry discReference
Four synchronized gears in three ranges with mechanical shuttle.Reference
TypecreeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
Pump flow50.0 lpmReference
Rear TypeIIReference
Rear lift2800 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase211 cmReference
4WD Wheelbase231 cmReference
Weight4960 to 5291 poundsReference
Front tire7.50-16Reference
2WD Rear tire14.9/13-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9/13-30Reference
4WD Standard tires (ag)Front: 9.5/9-24. Rear: 14.9/13-30Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 12.4/11-36Reference
4WD Optional tires (ag)Front: 11.2/10-24. Rear: 12.4/11-36Reference
2WD Length318 cmReference
4WD Length322 cmReference
Width177 cmReference
2WD Cab Weight2249 kgReference
4WD Cab Weight2399 kgReference
2WD Ground clearance51 cmReference
4WD Ground clearance33 cmReference
2WD Front tread127 to 156 cmReference
4WD Front tread139 to 178 cmReference
Rear tread139 to 189 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
SAME Aster 60 Height
2WD Hood141 cmReference
4WD Hood137 cmReference
Cab234 cmReference
Speeds
With 14.9/13-30 rear tires and 30kph option.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
