Tractor · 1981Unverified

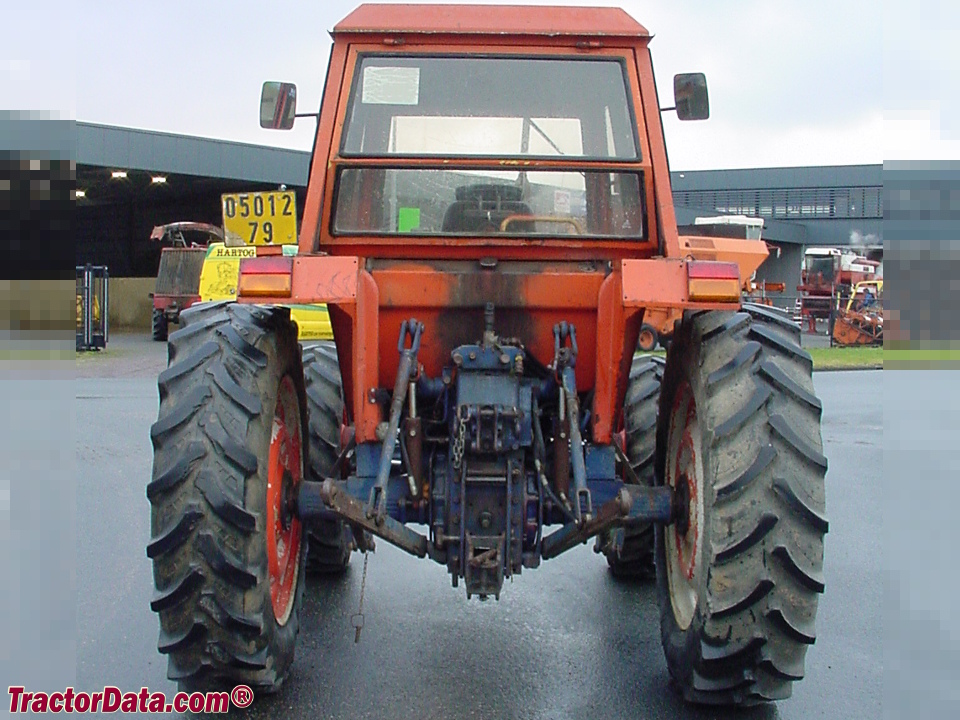

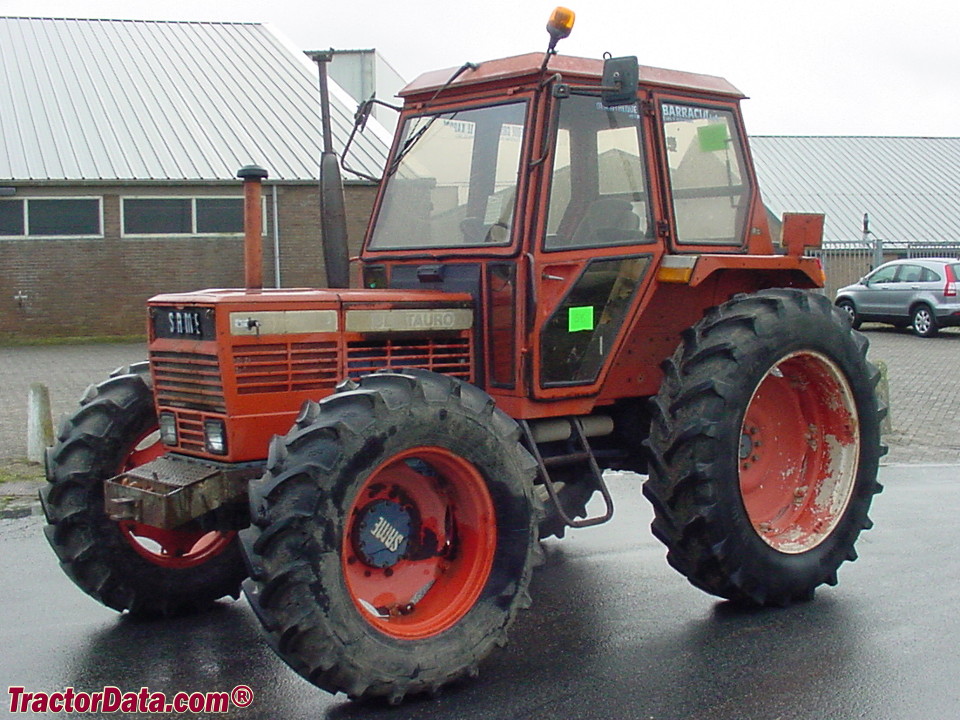

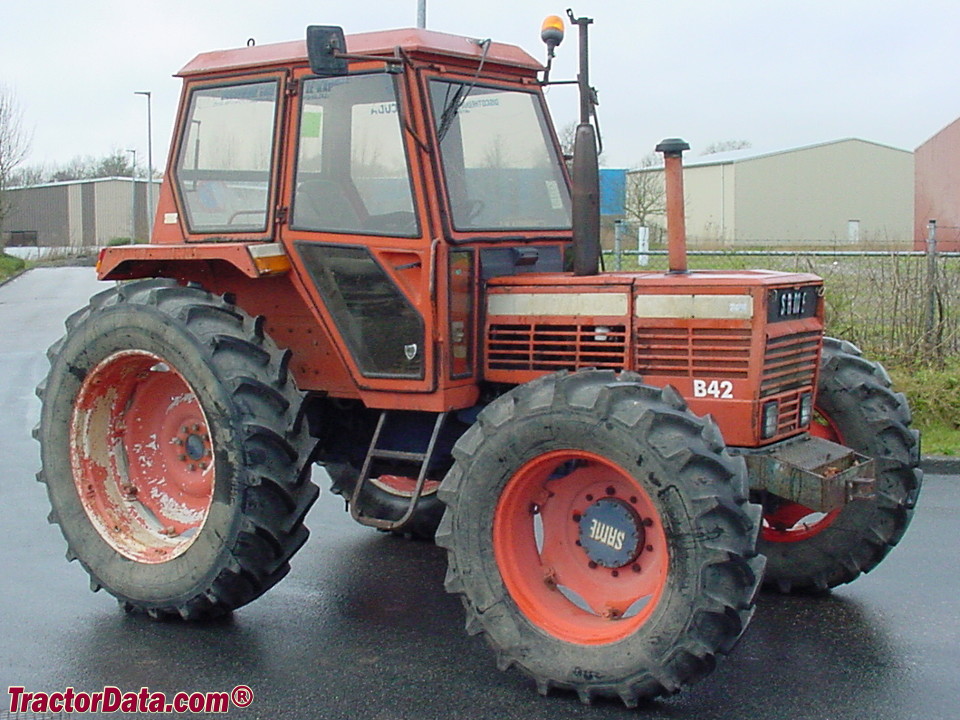

SAME Centauro 70
SAME Centauro 70 — Model year 1981-19821982-1987 · 68 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
68 hp
Weight
6614 to 7628 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Four-post ROPS. Cab optional with available air-conditioning.Reference
Engine
SAME 3.6L 4-cyl dieselReference
Fuel tank120.0 LReference
Engine50.7 kWReference
SAME 984PReference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.6 LReference
Bore/Stroke98 x 120 mmReference
Power50.7 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2300Reference
Starter volts12Reference
Transmission
12-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears12 forward and reverseReference
Clutchmechanical dry discReference
Four gears in three ranges.Reference
TypecreeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
Typeopen cetnerReference
Pump flow40.9 lpmReference
Rear TypeIIReference
Rear lift3700 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase234 cmReference
Weight6614 to 7628 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9/14-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9/14-30Reference
4WD Standard tires (ag)Front: 11.2/10-24. Rear: 16.9/14-30Reference
2WD Length384 cmReference
4WD Length394 cmReference
Width193 cmReference
2WD Ground clearance41 cmReference
4WD Ground clearance39 cmReference
2WD Front tread139 to 219 cmReference
4WD Front tread151 to 182 cmReference
Rear tread150 to 199 cmReference
2WD ROPS3000 kgReference
2WD Cab3170 kgReference
4WD ROPS3299 kgReference
4WD Cab3460 kgReference
SAME Centauro 70 Height
Hood136 cmReference
ROPS240 cmReference
Cab273 cmReference
Speeds
With 16.9/14-30 rear tires and 30 KPH option.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
