Tractor · 1972Unverified

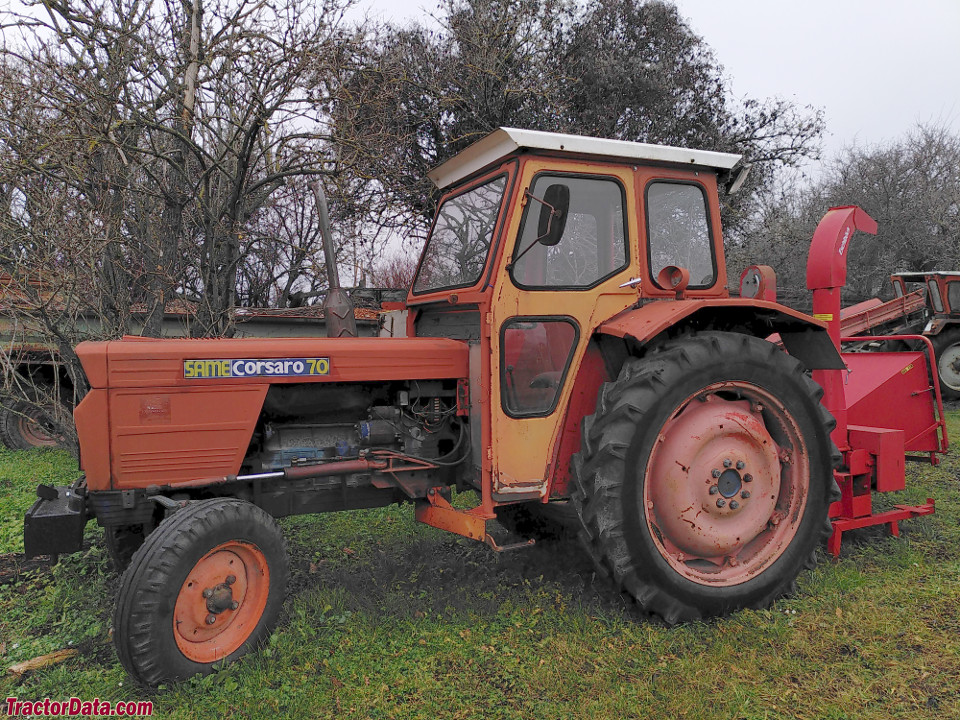

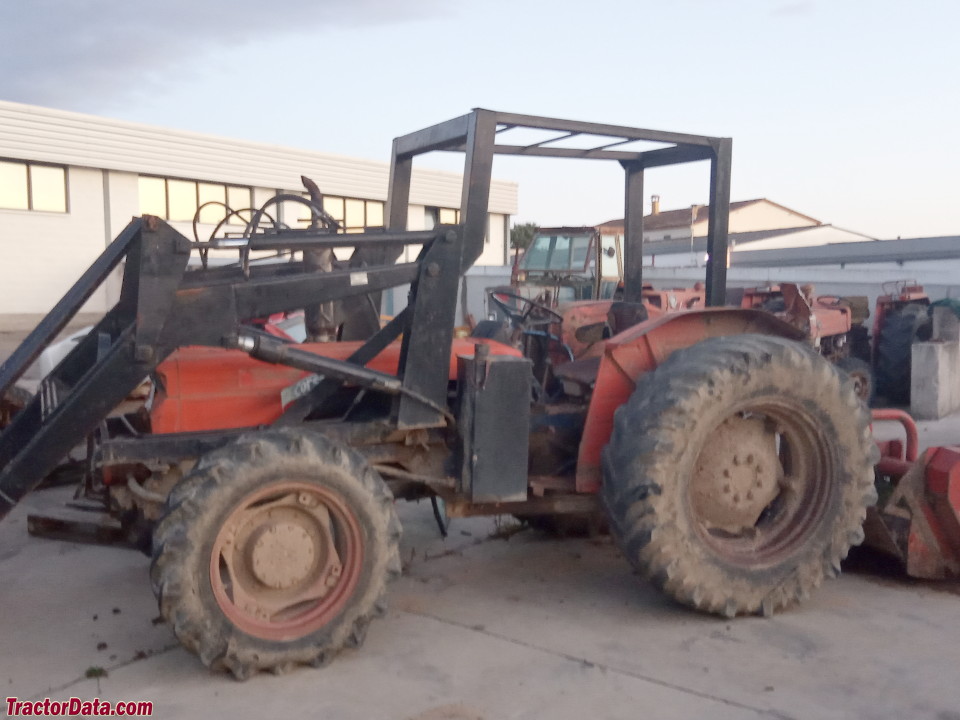

SAME Corsaro 70
SAME Corsaro 70 · 68 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
68 hp
Weight
5908 to 6460 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Four-post ROPS.Reference
Engine
SAME 3.6L 4-cyl dieselReference
Fuel tank79.9 LReference
Engine51.0 kWReference
SAME 984 PReference
dieselReference
4-cylinderReference
air-cooled inlineReference
Displacement3.6 LReference
Bore/Stroke98 x 120 mmReference
Power51.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2200Reference
Starter volts12Reference
Transmission
8-speedReference
14-speed creeperReference
Gears8 forward and 4 reverseReference
Four gears in two ranges,Reference
TypecreeperReference
Gears14 forward and 7 reverseReference
PTO & Hydraulics
Pump flow23.8 lpmReference
Rear TypeIIReference
Rear lift2765 kgReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase234 cmReference
Weight5908 to 6460 poundsReference
Front tire7.50-16Reference
2WD Rear tire14.9/13-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9/13-30Reference
4WD Standard tires (ag)Front: 9.5/9-24. Rear: 14.9/13-30Reference
2WD Optional tires (ag)Front: 6.50-20. Rear: 13.6/12-36Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 16.9/14-30Reference
2WD Optional tires (ag)Front: 7.50-18. Rear: 13.6/12-38Reference
4WD Optional tires (ag)Front: 11.2/10-24. Rear: 16.9/14-30Reference
4WD Optional tires (ag)Front: 12.4/11-24. Rear: 13.6/12-36Reference
4WD Optional tires (ag)Front: 12.4/11-24. Rear: 13.6/12-38Reference
2WD Length389 cmReference
4WD Length392 cmReference
Width187 cmReference
2WD Weight2679 kgReference
4WD Weight2930 kgReference
2WD Ground clearance42 cmReference
4WD Ground clearance36 cmReference
2WD Front tread139 to 219 cmReference
4WD Front tread148 to 155 cmReference
Rear tread150 to 199 cmReference
SAME Corsaro 70 Height
2WD Hood173 cmReference
4WD Hood135 cmReference
ROPS239 cmReference
Speeds
With 14.9/13-30 rear tires and 25 KPH option.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
