Tractor · 1999Unverified

SAME Diamond 230

Name: SAME Diamond 230
Brand: SAME

SAME Diamond 230 — Diamond Series · 230 hp. Reference specifications; pending source verification.

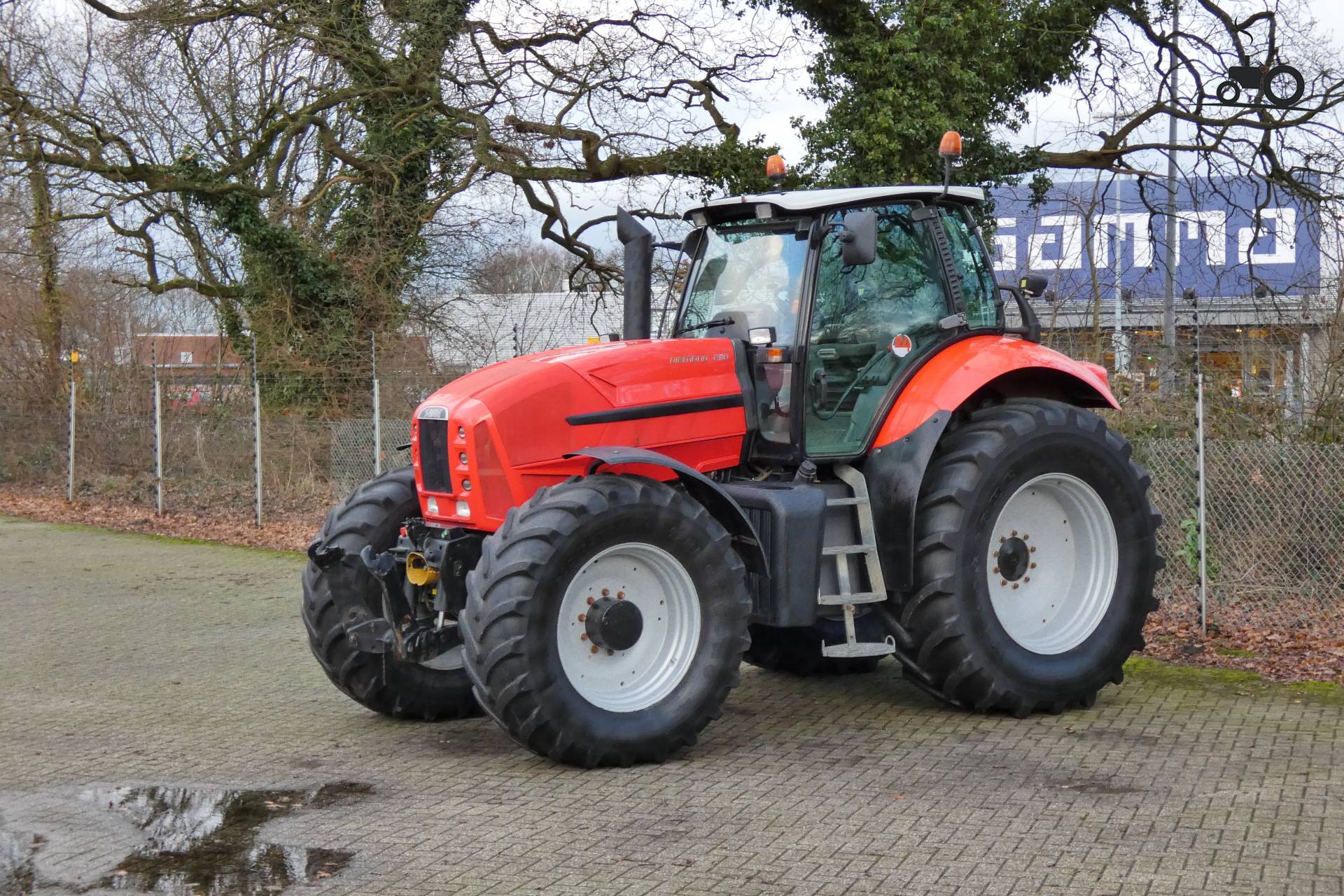

The SAME Diamond 230 is a tractor with an output of approximately 230 horsepower, placing it in a powerful category. It was manufactured between 1999 and 2004. The Diamond 230 features a 6-cylinder turbocharged diesel engine with liquid cooling and four-wheel drive, paired with a powershift transmission. Its operating weight is listed at 8350 kilograms, with a suitable area for operation of 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

230 hp

Weight

8350 kg

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

230 hp

Recorded weight

8350 kg

Transmissions

40-speed four-speed power shift

Production years

1999-2004

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSAMEReference

Row-Crop tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with air-conditioning.Reference

Variants

Agrotron 230similar Deutz-Fahr modelReference

Victory 230similar Lamborghini modelReference

Engine

SAME 7.1L 6-cyl dieselReference

Fuel tank550.0 LReference

Engine171.5 kWReference

SAME BF6M 1013 FCReference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement7.1 LReference

Bore/Stroke108 x 130 mmReference

Power171.5 kWReference

Rated RPM2350Reference

Torque889.5 NmReference

Torque RPM1350Reference

Starter typeelectricReference

Transmission

40-speed four-speed power shiftReference

TransmissionZF T 7300Reference

Typefour-speed power shiftReference

Gears40 forward and reverseReference

Clutchhydraulic wet discReference

Six gear, plus four in the creeper range, with four-speed power shift per gear. Power shuttle.Reference

PTO & Hydraulics

Typeclosed centerReference

Pump flow120.0 lpmReference

Rear TypeIIIReference

Rear lift10500 kgReference

Front HitchIIReference

Front lift5100 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type1000 (1.75)Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase308 cmReference

Weight8350 kgReference

Front tire600/65Reference

Rear tire34:650/65R42Reference

Standard tires (ag)Front: 600/65. Rear: 34Reference

Optional tires (ag)Front: 520/70R34. Rear: 620/70R42Reference

Optional tires (ag)Front: 600/70R30. Rear: 710/70R38Reference

Optional tires (ag)Front: 520/70R38. Rear:Reference

Optional tires (ag)Front: 650/85R38. Rear:Reference

Length436 cmReference

Length513 cmReference

Width248 cmReference

Height (cab)322 cmReference

Shipping weight8350 kgReference

Ground clearance59 cmReference

Front tread180 to 199 cmReference

Rear tread180 to 199 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
