Tractor · 1999Unverified

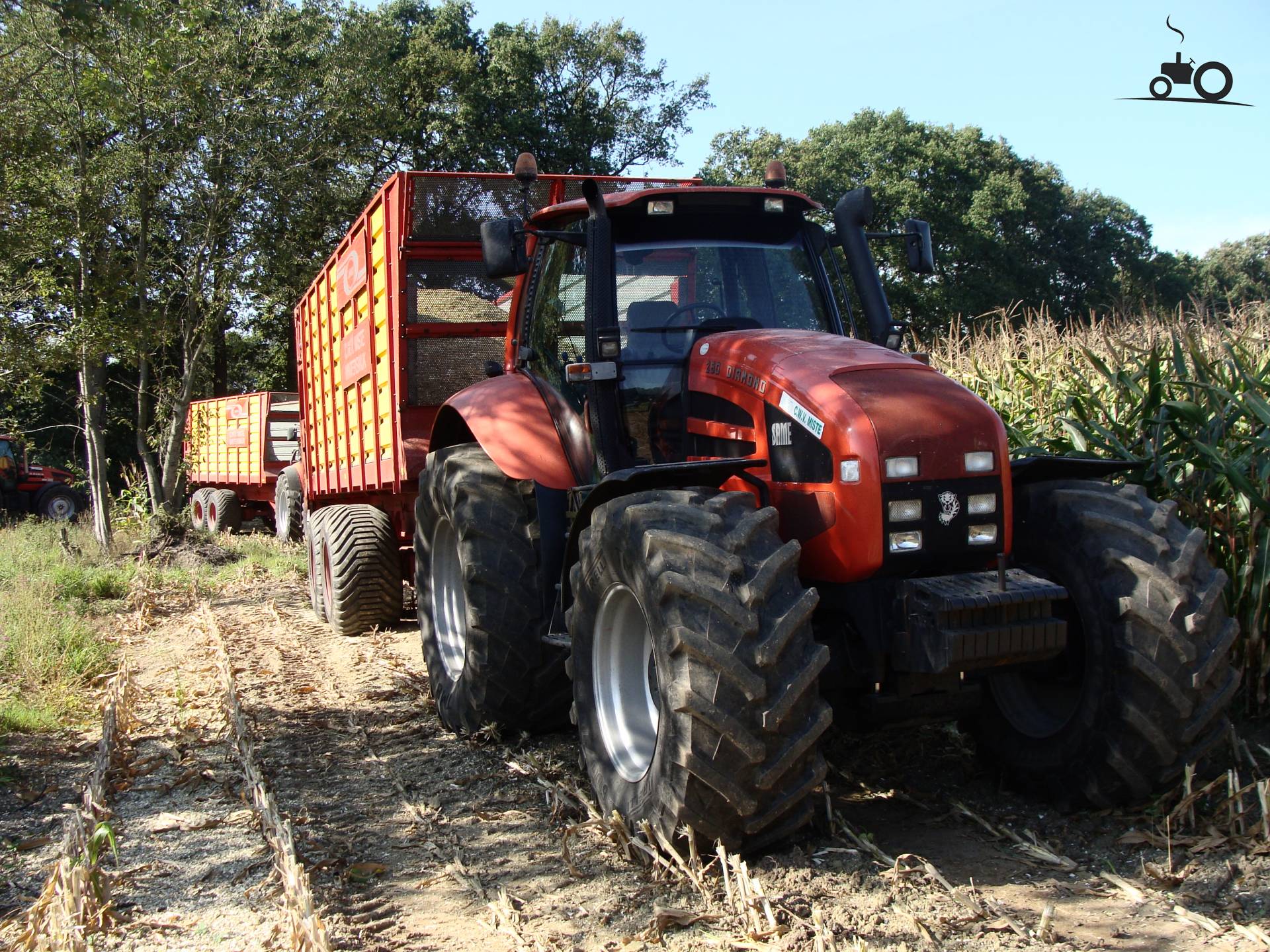

SAME Diamond 260
SAME Diamond 260 — Diamond Series · 260 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
260 hp
Weight
8450 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakespneumaticReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference
Variants
Agrotron 260similar Deutz-Fahr modelReference
Victory 260similar Lamborghini modelReference
Engine
SAME 7.1L 6-cyl dieselReference
Fuel tank550.0 LReference
Engine193.9 kWReference
SAME BF6M 1013 FCReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.1 LReference
Bore/Stroke108 x 130 mmReference
Power193.9 kWReference
Rated RPM2350Reference
Torque1010.2 NmReference
Torque RPM1350Reference
Starter typeelectricReference
Transmission
40-speed four-speed power shiftReference
TransmissionZF T 7300Reference
Typefour-speed power shiftReference
Gears40 forward and reverseReference
Clutchhydraulic wet discReference
Six gear, plus four in the creeper range, with four-speed power shift per gear. Power shuttle.Reference
PTO & Hydraulics
Typeclosed centerReference
Pump flow120.0 lpmReference
Rear TypeIIIReference
Rear lift10500 kgReference
Front HitchIIReference
Front lift5100 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase308 cmReference
Weight8450 kgReference
Front tire520/70R34Reference
Rear tire620/70R42Reference
Standard tires (ag)Front: 520/70R34. Rear: 620/70R42Reference
Optional tires (ag)Front: 600/70R30. Rear: 710/70R38Reference
Optional tires (ag)Front: 520/70R38. Rear:Reference
Optional tires (ag)Front: 650/85R38. Rear:Reference
Length436 cmReference
Length513 cmReference
Width248 cmReference
Height (cab)322 cmReference
Shipping weight8450 kgReference
Ground clearance59 cmReference
Front tread180 to 199 cmReference
Rear tread180 to 199 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
