Tractor · 2004Unverified

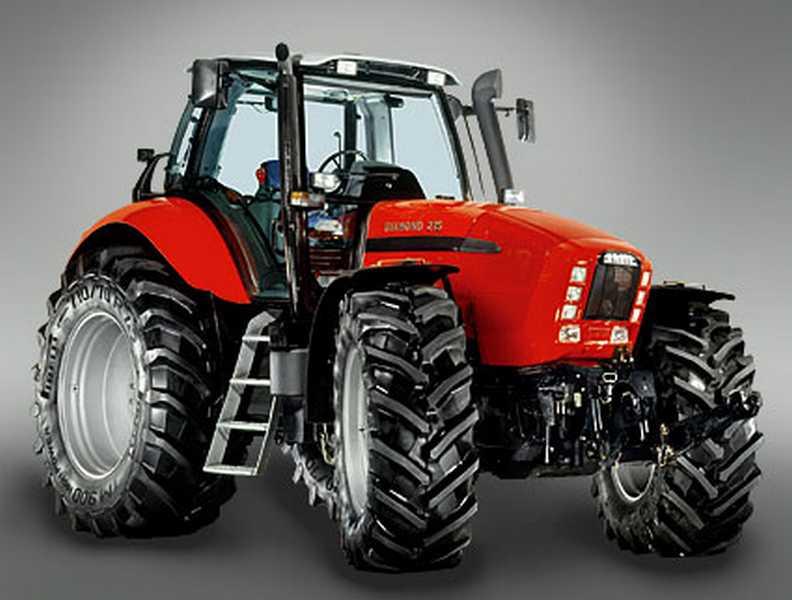

SAME Diamond 265
SAME Diamond 265 — Diamond Series · 277 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
277 hp
Weight
9050 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Variants
Agrotron 265similar Deutz-Fahr modelReference
Engine
Deutz 7.1L 6-cyl dieselReference
Fuel tank550.0 LReference
Engine (gross)206.6 kWReference
Engine (net)195.4 kWReference
Deutz BF6M 1013 ECPReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.1 LReference
Bore/Stroke108 x 130 mmReference
Rated Power (net)195.4 kWReference
Rated Power (gross)206.6 kWReference
Air cleanerdryReference
Rated RPM2350Reference
Torque1028.1 NmReference
Torque RPM1700Reference
Starter volts12Reference
Transmission
40-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears40 forward and reverseReference
Clutchhydraulic wet discReference
Four power shift gears in six ranges with power shuttle.Reference
PTO & Hydraulics
Typevariable displacement load-sensingReference
Pump flow120.0 lpmReference
Rear lift10501 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540E/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase308 cmReference
Weight9050 kgReference
Rear tire710/70R42Reference
Ag rear710/70R42Reference
Length560 cmReference
Width275 cmReference
Height (cab)325 cmReference
Ground clearance59 cmReference
Front tread180 to 199 cmReference
Rear tread180 to 199 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
