Tractor · 2006Unverified

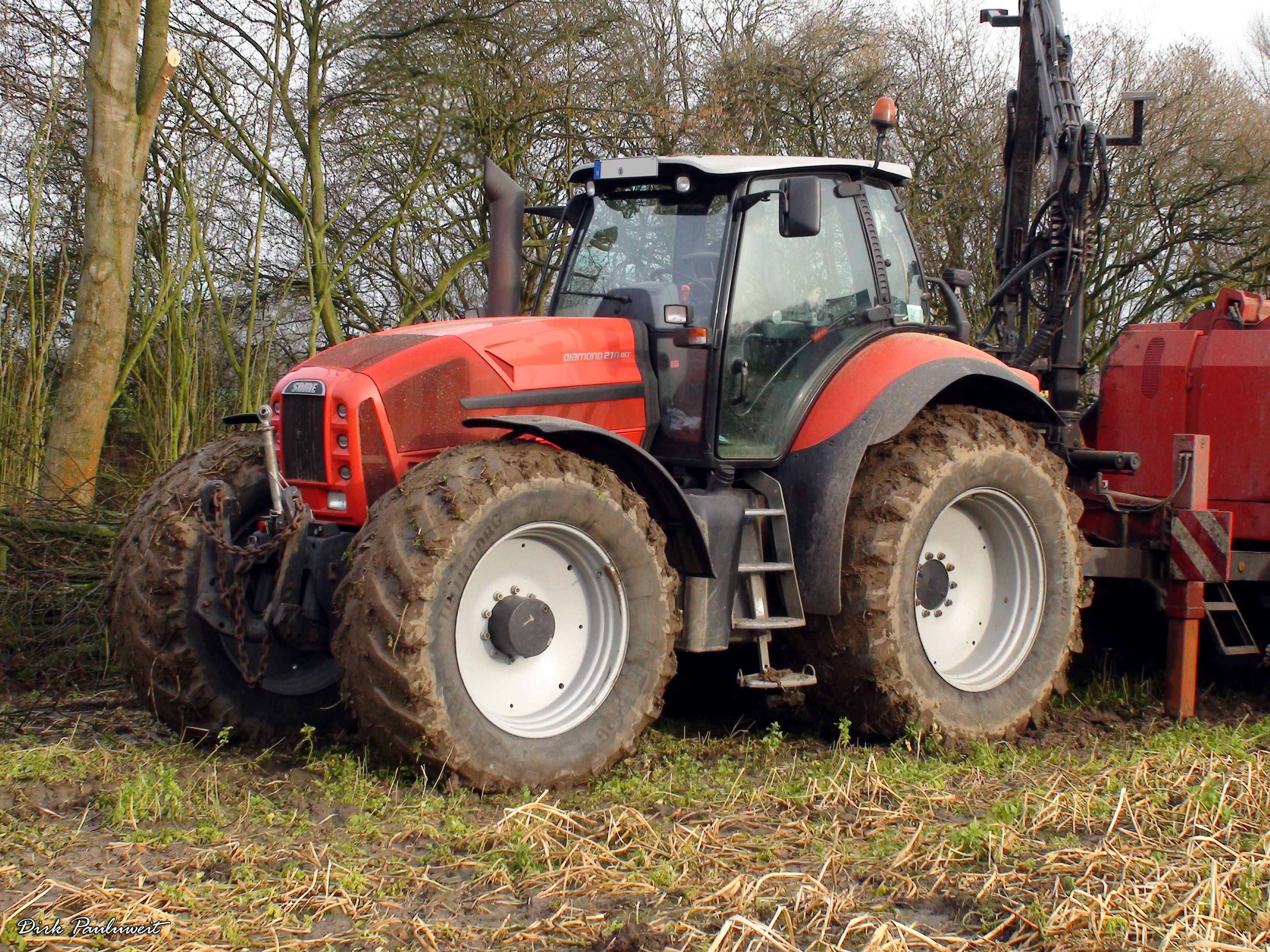

SAME Diamond 270

Name: SAME Diamond 270
Brand: SAME

SAME Diamond 270 — Diamond Series · 266 hp. Reference specifications; pending source verification.

The SAME Diamond 270 is a tractor characterised by a rated power of 266 hp, placing it at the more powerful end of its class. It was produced from 2006 to 2012. The Diamond 270 is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with a four-wheel drive system and a powershift transmission. Its operating weight is 9049 kg, making it suitable for large-scale operations of 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

266 hp

Weight

9049 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

266 hp

Recorded weight

9049 kg

Transmissions

40-speed four-speed power shift

Production years

2006-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSAMEReference

Row-Crop tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with air-conditioning.Reference

Engine

Deutz 7.1L 6-cyl dieselReference

Fuel tank550.0 LReference

Engine (gross)198.4 kWReference

Engine (max)202.1 kWReference

Deutz TCD2013Reference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement7.1 LReference

Bore/Stroke108 x 130 mmReference

Rated Power (gross)198.4 kWReference

Maximum Power (gross)202.1 kWReference

Air cleanerdryReference

Rated RPM2350Reference

Torque1052.1 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Transmission

40-speed four-speed power shiftReference

Typefour-speed power shiftReference

Gears40 forward and reverseReference

Clutchhydraulic wet discReference

Four power shift gears four creeper ranges and six field ranges with power shuttle.Reference

PTO & Hydraulics

Typeload sensingReference

Valves4Reference

Pump flow120.0 lpmReference

Rear lift10500 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540E/1000Reference

Engine RPM540E@1630Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase308 cmReference

Weight9049 kgReference

Front tire600/65R38Reference

Rear tire710/70R42Reference

Ag front600/65R38Reference

Ag rear710/70R42Reference

Length500 cmReference

Width275 cmReference

Height (cab)325 cmReference

Ground clearance59 cmReference

Front tread180 to 199 cmReference

Rear tread180 to 199 cmReference

Speeds

With 710/70R42 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
