Tractor · 2014Unverified

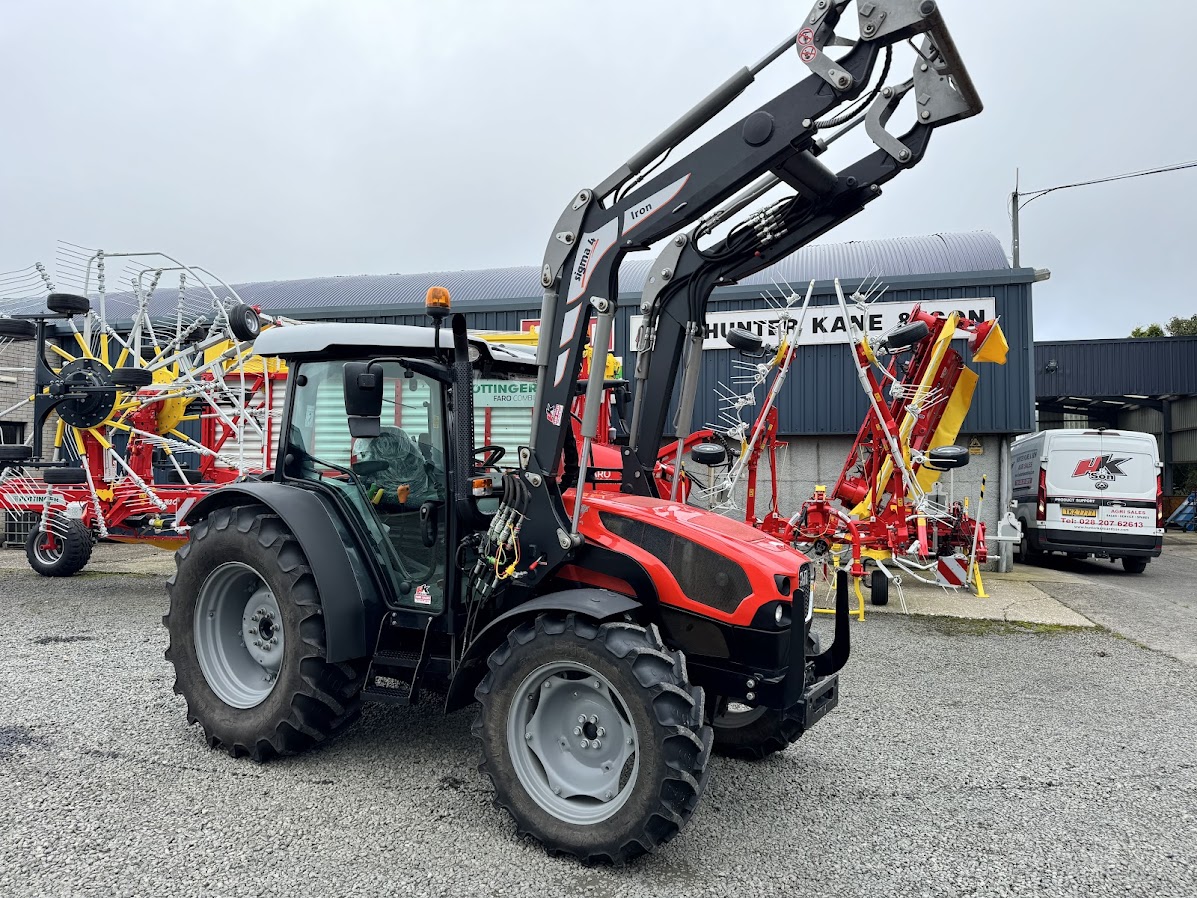

SAME Dorado 100.4
SAME Dorado 100.4 — Dorado Series · 97 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
97 hp
Weight
3299 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with available air-conditioning.Reference
Engine
SDF 3.9L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine (gross)72.3 kWReference
Engine (max)76.1 kWReference
SDF FARMotionReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke103 x 116 mmReference
EmissionsStage IIIBReference
Rated Power (gross)72.3 kWReference
Maximum Power (gross)76.1 kWReference
Rated RPM2200Reference
Torque408.2 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
30-speed partially synchronizedReference
45-speed three-speed power shiftReference
Typepartially synchronizedReference
Gears30 forward and 15 reverseReference
Five synchronized gears in three ranges with mechanical shuttle and creeper range.Reference
Typethree-speed power shiftReference
Gears45 forward and reverseReference
Five synchronized gears in three ranges with three-speed power shift and power shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow54.1 lpmReference
Rear TypeIIReference
Rear lift3000 kgReference
Rear lift3600 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase223 cmReference
Weight3299 kgReference
Length356 cmReference
Width200 cmReference
Height (cab)248 cmReference
Front tread145 to 184 cmReference
Rear tread150 to 189 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
