Tractor · 2000Unverified

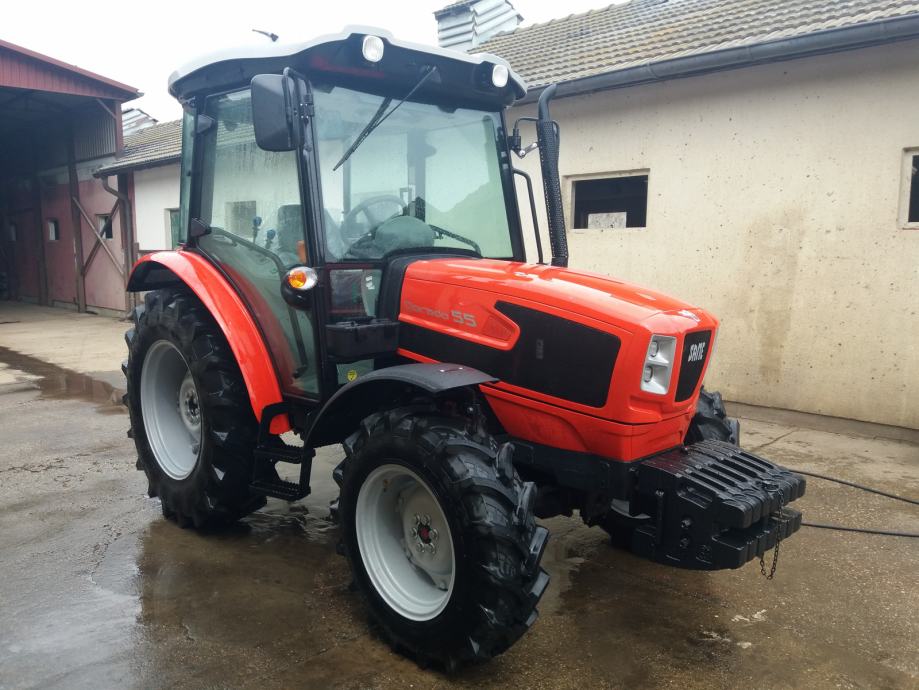

SAME Dorado 55
SAME Dorado 55 — Dorado Series · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Weight
5291 to 6283 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab optional with available air-conditioning.Reference
Engine
SAME 3.0L 3-cyl dieselReference
Fuel tank90.1 LReference
Engine41.8 kWReference
SAME 1000.3AReference
dieselReference
3-cylinderReference
air-cooledReference
Displacement3.0 LReference
Bore/Stroke105 x 115 mmReference
Power41.8 kWReference
Rated RPM2350Reference
Torque197.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
20-speedReference
45-speed three-speed power shiftReference
Gears16 forward and 8 reverseReference
Four gears in two ranges with two-speed high/low. Optional creeper range provides 24 forward speeds.Reference
Gears20 forward and 10 reverseReference
Five gears in two ranges with two-speed high/low. Optional creeper range provides 30 forward speeds.Reference
TransmissionAgroshiftReference
Typethree-speed power shiftReference
Gears45 forward and reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow36.0 lpmReference
Pump flow48.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2900 kgReference
Rear lift3601 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase210 cmReference
4WD Wheelbase205 cmReference
Weight5291 to 6283 poundsReference
Front tire7.50-16Reference
2WD Rear tire14.9R28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9R28Reference
4WD Standard tires (ag)Front: 11.2R20. Rear: 14.9R28Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 420/70R28Reference
4WD Optional tires (ag)Front: 320/70R20. Rear: 420/70R28Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 420/70R30Reference
4WD Optional tires (ag)Front: 360/70R20. Rear: 420/70R30Reference
2WD Optional tires (ag)Front: 6.50-20. Rear: 12.4R36Reference
4WD Optional tires (ag)Front: 11.2R24. Rear: 12.4R36Reference
Length370 cmReference
Width179 cmReference
2WD Ground clearance44 cmReference
4WD Ground clearance35 cmReference
2WD Front tread130 to 180 cmReference
4WD Front tread144 to 173 cmReference
Rear tread139 to 183 cmReference
2WD ROPS2399 kgReference
2WD Cab2600 kgReference
4WD ROPS2800 kgReference
4WD Cab2849 kgReference
Steering wheel169 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
SAME Dorado 55 Height
Hood149 cmReference
ROPS237 cmReference
Cab240 cmReference
Speeds
With 40kph option and 420/70R30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
