Tractor · 2005Unverified

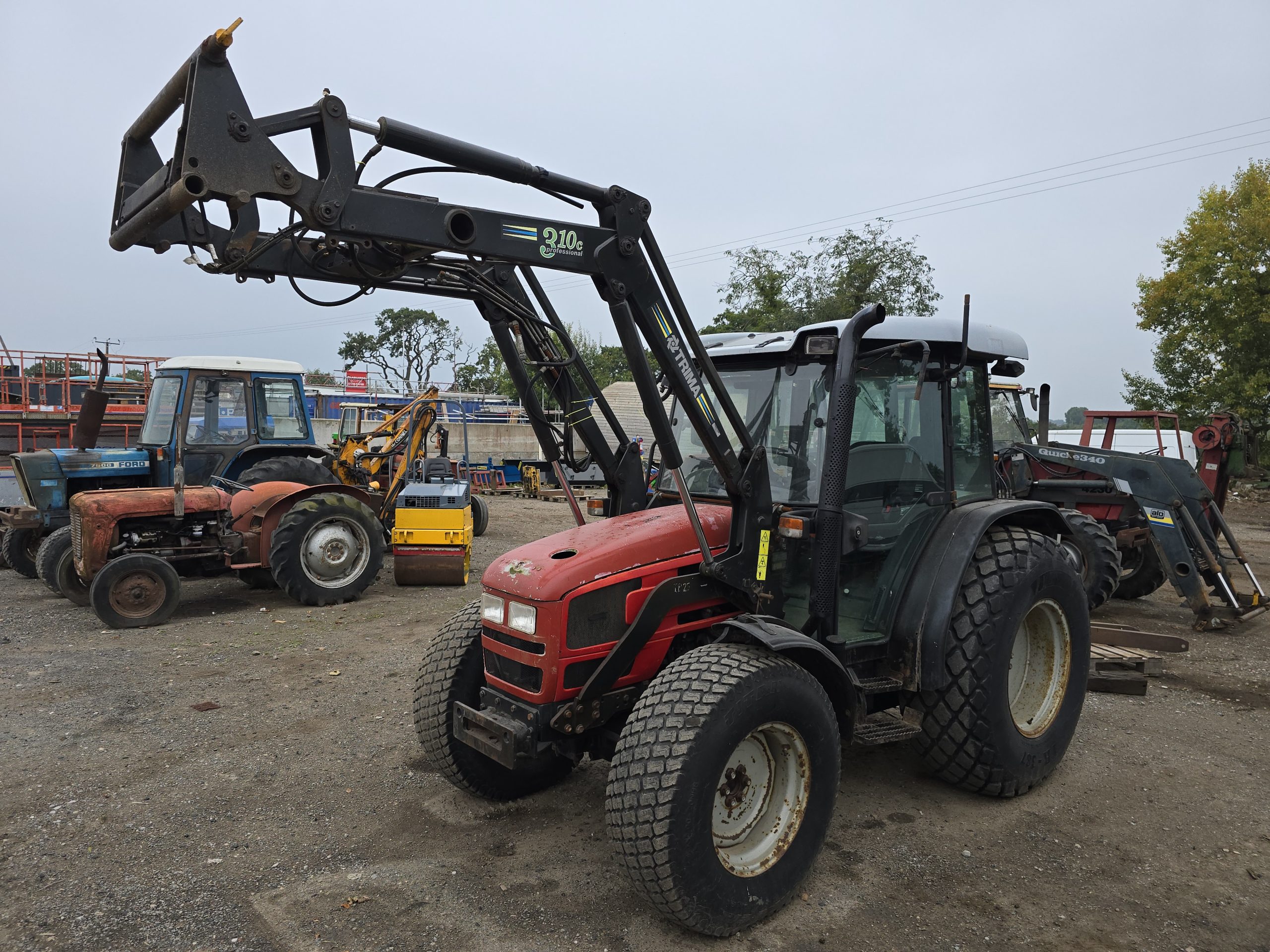

SAME Dorado 66
SAME Dorado 66 — Dorado Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
5291 to 6173 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Engine
SAME 3.0L 3-cyl dieselReference
Fuel tank90.1 LReference
Engine (gross)52.2 kWReference
SAME 1000.3WTReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke105 x 115 mmReference
EmissionsStage IIReference
Rated Power (gross)52.2 kWReference
Rated Power (gross)50.0 kWReference
Air cleanerdryReference
Rated RPM2200Reference
Torque260.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Transmission
20-speedReference
45-speed three-speed power shiftReference
Gears20 forward and 10 reverseReference
Five gears in two ranges with two-speed high/low. Optional creeper range provides 30 forward speeds.Reference
TransmissionAgroshiftReference
Typethree-speed power shiftReference
Gears45 forward and reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow54.1 lpmReference
Rear lift3000 kgReference
Rear lift3600 kgReference
Front lift1749 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase211 cmReference
4WD Wheelbase205 cmReference
Weight5291 to 6173 poundsReference
Rear tire720/70R30Reference
Ag rear720/70R30Reference
Length342 cmReference
Width192 cmReference
Height (ROPS)240 cmReference
Height (cab)243 cmReference
Ground clearance43 cmReference
2WD Front tread130 to 180 cmReference
4WD Front tread144 to 173 cmReference
Rear tread150 to 189 cmReference
2WD ROPS2399 kgReference
2WD Cab2600 kgReference
4WD ROPS2600 kgReference
4WD Cab2800 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
