Tractor · 1995Unverified

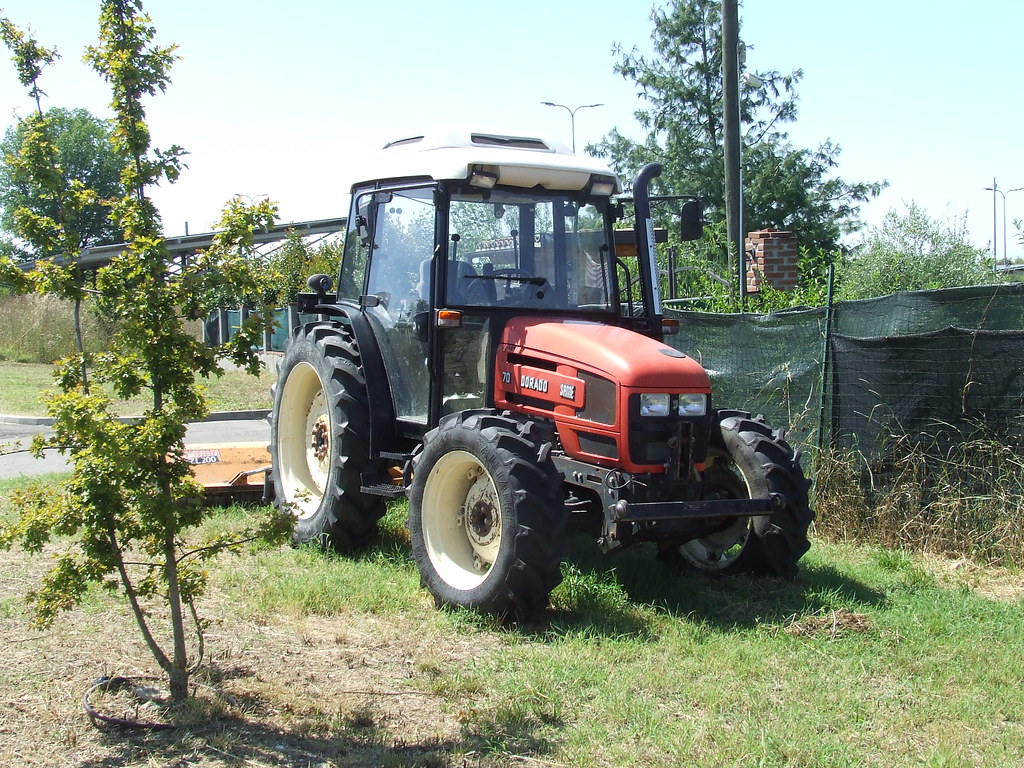

SAME Dorado 70
SAME Dorado 70 — Dorado Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
5489 to 6371 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Differential lockelectrohydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Two-post ROPS. Cab available with optional air-conditioning.Reference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine52.2 kWReference
SAME 1000.4Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Power52.2 kWReference
Rated RPM2350Reference
Torque243.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
30-speedReference
45-speedReference
Gears30 forward and 15 reverseReference
TransmissionAgroshiftReference
Gears45 forward and reverseReference
PTO & Hydraulics
Pump flow36.0 lpmReference
Pump flow48.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2899 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase223 cmReference
4WD Wheelbase218 cmReference
Weight5489 to 6371 poundsReference
Front tire7.50-18Reference
2WD Rear tire16.9R30Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 16.9R30Reference
4WD Standard tires (ag)Front: 11.2R24. Rear: 16.9R30Reference
2WD Optional tires (ag)Front: 6.50-20. Rear: 12.4R36Reference
4WD Optional tires (ag)Front: 11.2R24. Rear: 12.4R36Reference
Length385 cmReference
Width192 cmReference
2WD Ground clearance44 cmReference
4WD Ground clearance38 cmReference
2WD Front tread130 to 180 cmReference
4WD Front tread144 to 173 cmReference
Rear tread150 to 189 cmReference
2WD ROPS2489 kgReference
2WD Cab2659 kgReference
4WD ROPS2720 kgReference
4WD Cab2889 kgReference
Steering wheel171 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
SAME Dorado 70 Height
Hood151 cmReference
ROPS240 cmReference
Cab258 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
