Tractor · 2000Unverified

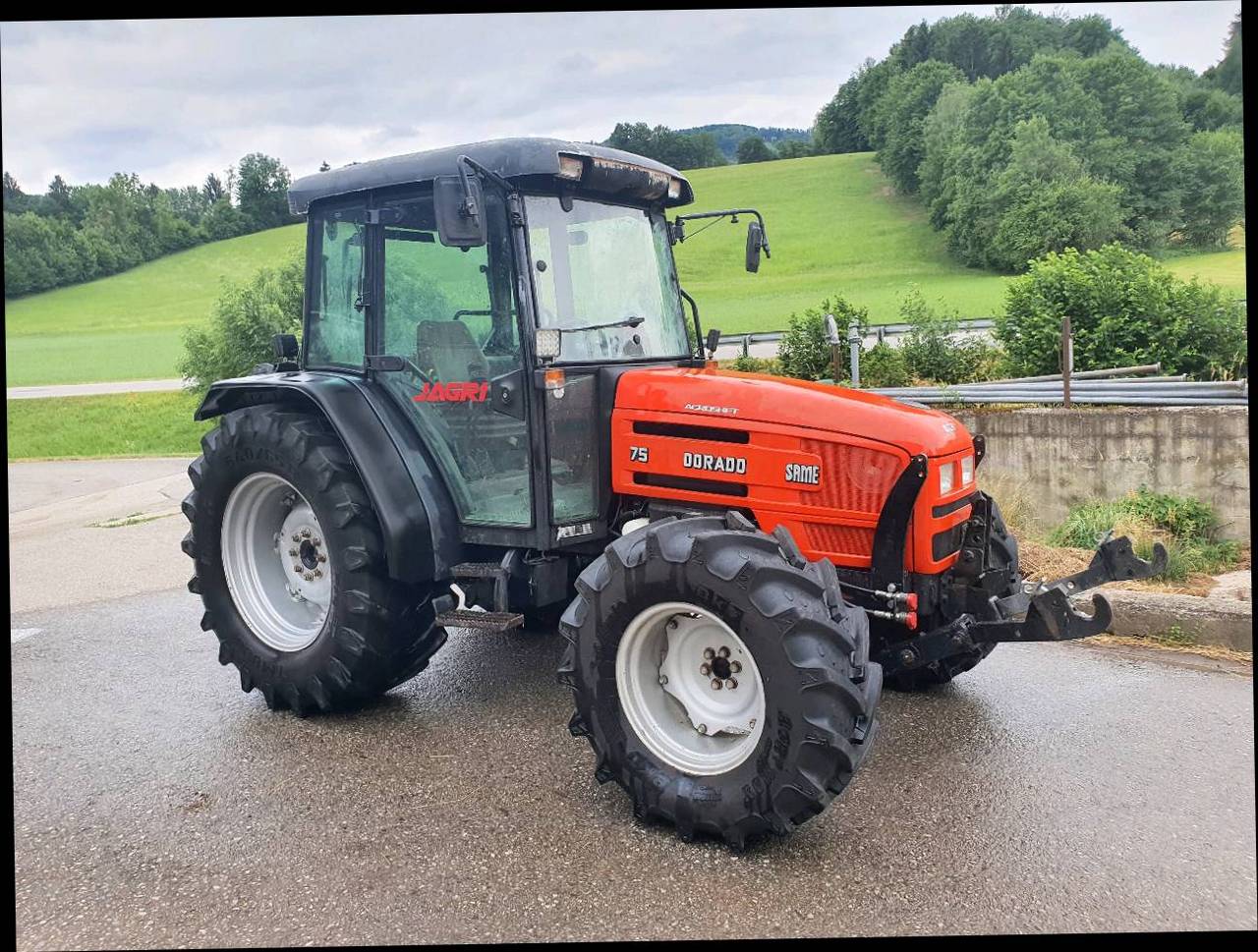

SAME Dorado 75
SAME Dorado 75 — Dorado Series · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Weight
5490 to 6371 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab optional with available air-conditioning.Reference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine53.7 kWReference
SAMEReference
dieselReference
4-cylinderReference
air-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Power53.7 kWReference
Rated RPM2350Reference
Torque276.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
20-speedReference
45-speed three-speed power shiftReference
Gears16 forward and 8 reverseReference
Four gears in two ranges with two-speed high/low. Optional creeper range provides 24 forward speeds.Reference
Gears20 forward and 10 reverseReference
Five gears in two ranges with two-speed high/low. Optional creeper range provides 30 forward speeds.Reference
TransmissionAgroshiftReference
Typethree-speed power shiftReference
Gears45 forward and reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow36.0 lpmReference
Pump flow48.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2900 kgReference
Rear lift3601 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase223 cmReference
4WD Wheelbase218 cmReference
Weight5490 to 6371 poundsReference
Front tire7.50-16Reference
2WD Rear tire420/70R30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 420/70R30Reference
4WD Standard tires (ag)Front: 360/70R20. Rear: 420/70R30Reference
2WD Optional tires (ag)Front: 7.50-18. Rear: 480/70R30Reference
4WD Optional tires (ag)Front: 320/70R20. Rear: 480/70R30Reference
2WD Optional tires (ag)Front: 6.50-20. Rear: 12.4R36Reference
4WD Optional tires (ag)Front: 11.2R24. Rear: 12.4R36Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 13.6R36Reference
4WD Optional tires (ag)Front: 320/70R24. Rear: 13.6R36Reference
Length385 cmReference
Width192 cmReference
2WD Ground clearance44 cmReference
4WD Ground clearance38 cmReference
2WD Front tread130 to 180 cmReference
4WD Front tread144 to 173 cmReference
Rear tread150 to 189 cmReference
2WD ROPS2490 kgReference
2WD Cab2659 kgReference
4WD ROPS2720 kgReference
4WD Cab2889 kgReference
Steering wheel171 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
SAME Dorado 75 Height
Hood151 cmReference
ROPS240 cmReference
Cab242 cmReference
Speeds
With 40kph option and 420/70R30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
