Tractor · 2009Unverified

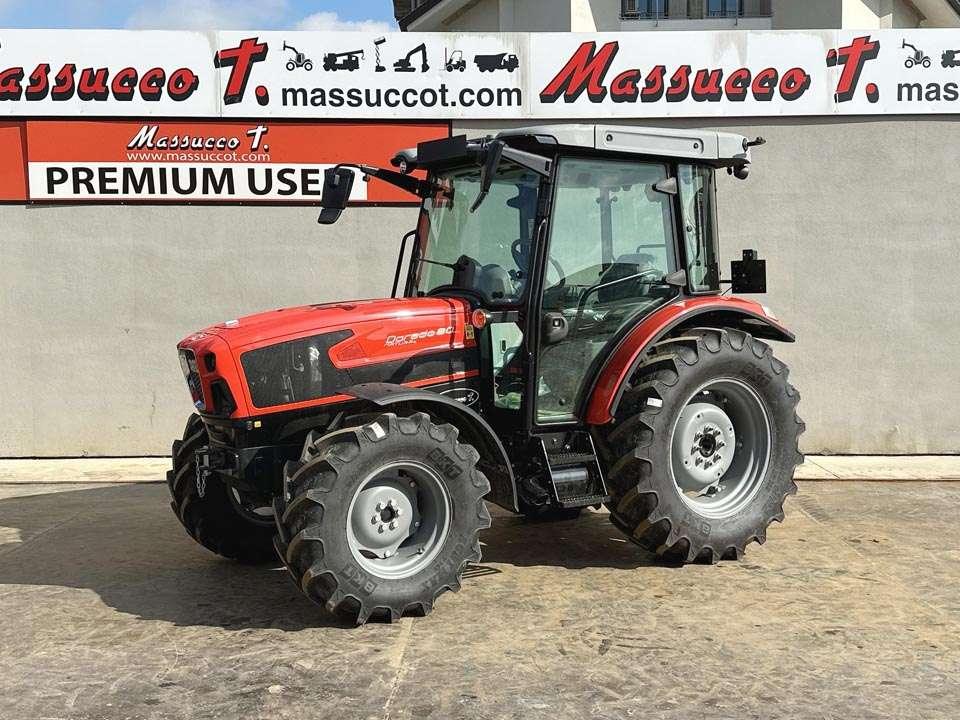

SAME Dorado 80
SAME Dorado 80 — Model year 2009-20142014-2022 · 82 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
82 hp
Weight
6614 to 7121 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Engine
SDF 3.0L 3-cyl dieselReference
Fuel tank99.9 LReference
Classic Fuel tank74.9 LReference
Engine (gross)61.1 kWReference
SDF 1000.3WTIReference
turbocharged intercooled dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke105 x 115 mmReference
EmissionsStage IIIReference
Rated Power (gross)61.1 kWReference
Air cleanerdryReference
Rated RPM2200Reference
Torque310.5 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
10-speed partially synchronizedReference
30-speed partially synchronizedReference
45-speed three-speed power shiftReference
Typepartially synchronizedReference
Gears10 forward and reverseReference
Five synchronized gears in two ranges with mechanical shuttle.Reference
Gears30 forward and 15 reverseReference
Five synchronized gears in three ranges with mechanical shuttle and creeper range.Reference
Typethree-speed power shiftReference
Gears45 forward and reverseReference
Five synchronized gears in three ranges with three-speed power shift and power shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow54.1 lpmReference
Rear TypeIIReference
Rear lift3000 kgReference
Rear lift3600 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase210 cmReference
Weight6614 to 7121 poundsReference
Length342 cmReference
Width194 cmReference
Height (ROPS)240 cmReference
Height (cab)246 cmReference
ROPS Weight3000 kgReference
Cab Weight3230 kgReference
Ground clearance36 cmReference
Front tread146 to 176 cmReference
Rear tread150 to 180 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Speeds
With 40kph transmission option and 480/70R30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
