Tractor · 2005Unverified

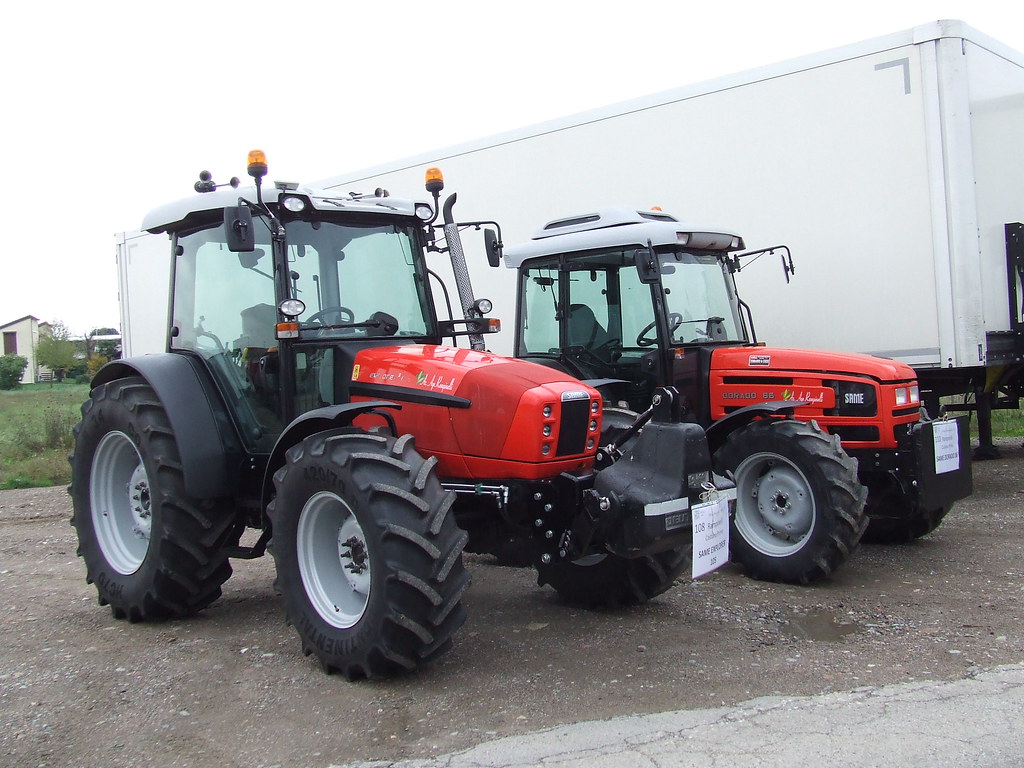

SAME Dorado 86
SAME Dorado 86 — Dorado Series · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
5622 to 6504 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine (gross)64.9 kWReference
SAME 1000.4WTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
EmissionsStage IIReference
Rated Power (gross)64.9 kWReference
Rated Power (gross)61.9 kWReference
Air cleanerdryReference
Rated RPM2200Reference
Torque348.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Transmission
20-speedReference
45-speed three-speed power shiftReference
Gears20 forward and 10 reverseReference
Five gears in two ranges with two-speed high/low. Optional creeper range provides 30 forward speeds.Reference
TransmissionAgroshiftReference
Typethree-speed power shiftReference
Gears45 forward and reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow54.1 lpmReference
Rear lift3000 kgReference
Rear lift3600 kgReference
Front lift1749 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase224 cmReference
4WD Wheelbase218 cmReference
Weight5622 to 6504 poundsReference
Rear tire780/70R30Reference
Ag rear780/70R30Reference
Length356 cmReference
Width207 cmReference
Height (ROPS)244 cmReference
Height (cab)246 cmReference
Ground clearance47 cmReference
2WD Front tread130 to 180 cmReference
4WD Front tread144 to 173 cmReference
Rear tread150 to 189 cmReference
2WD ROPS2550 kgReference
2WD Cab2750 kgReference
4WD ROPS2750 kgReference
4WD Cab2950 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
