Tractor · 1973Unverified

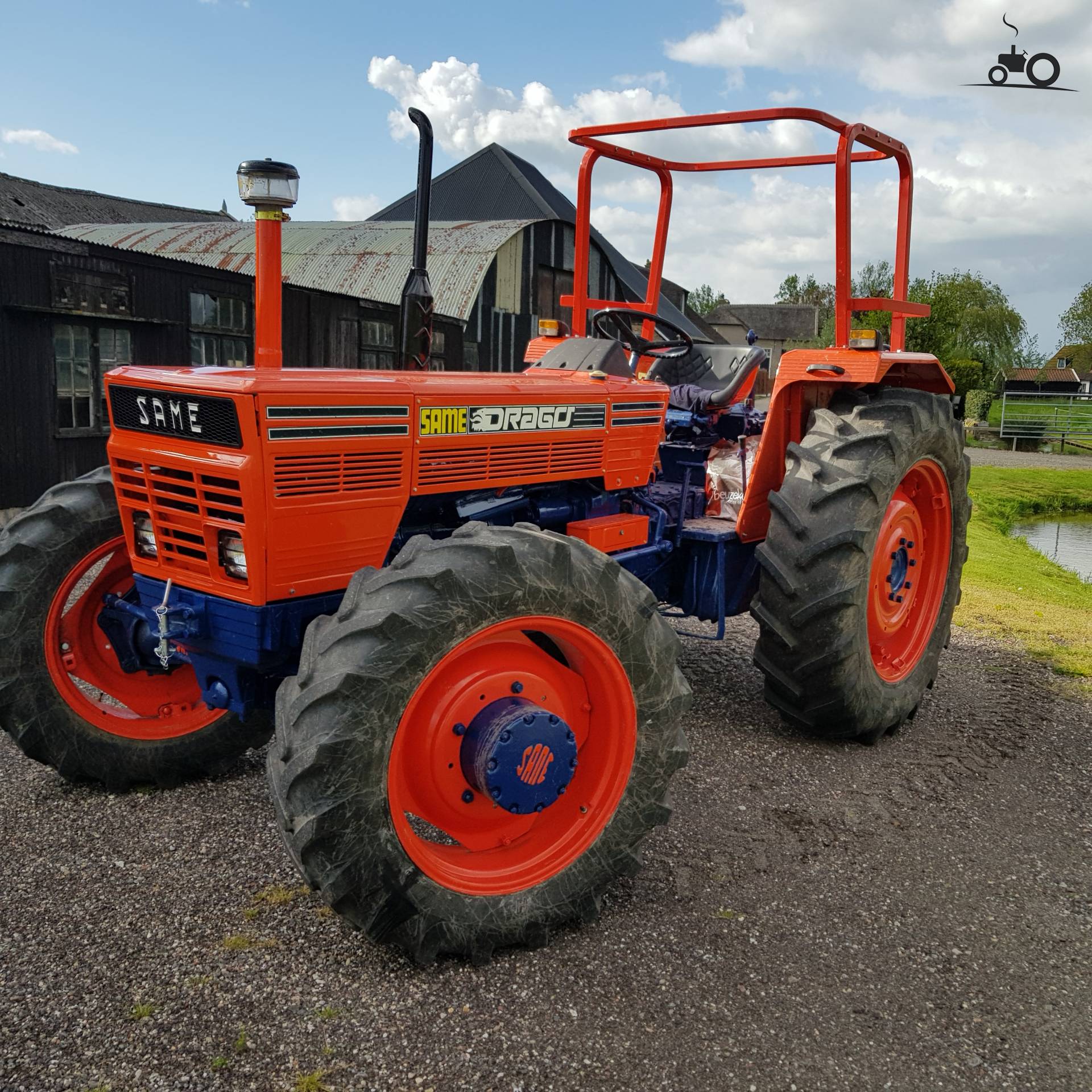

SAME Drago
SAME Drago · 97 hp. Reference specifications; pending source verification.
The SAME Drago is a tractor model rated at approximately 97 horsepower, a mid-range figure for its class. It was produced from 1973 to 1977. Powered by a 6-cylinder diesel air-cooled engine, the SAME Drago features four-wheel drive with an 8-speed gearbox. Its operating weight ranges from 9172 to 9922 pounds and is suitable for operations covering 200 to 800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
97 hp
Weight
9172 to 9922 pounds
Catalogue coverage
Variants represented
2
Richest spec table
28 rows
Recorded power
97 hp
Recorded weight
4160 kg
Transmissions
8-speed
Production years
1973-1977
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Two- or four-wheel driveReference
Engine
SAME 5.4L 6-cyl dieselReference
Fuel tank124.9 LReference
Engine72.3 kWReference
SAMEReference
dieselReference
6-cylinderReference
air-cooledReference
Displacement5.4 LReference
Bore/Stroke98 x 120 mmReference
Power72.3 kWReference
Rated RPM2200Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear lift3500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase265 cmReference
Weight9172 to 9922 poundsReference
Front tire7.50-18Reference
Rear tire18.4-34Reference
Ag front7.50-18Reference
Ag front13.6-24 (4WD)Reference
Ag rear18.4-34Reference
Length438 cmReference
Height262 cmReference
2WD Weight4160 kgReference
4WD Weight4500 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
