Tractor · 1978Unverified

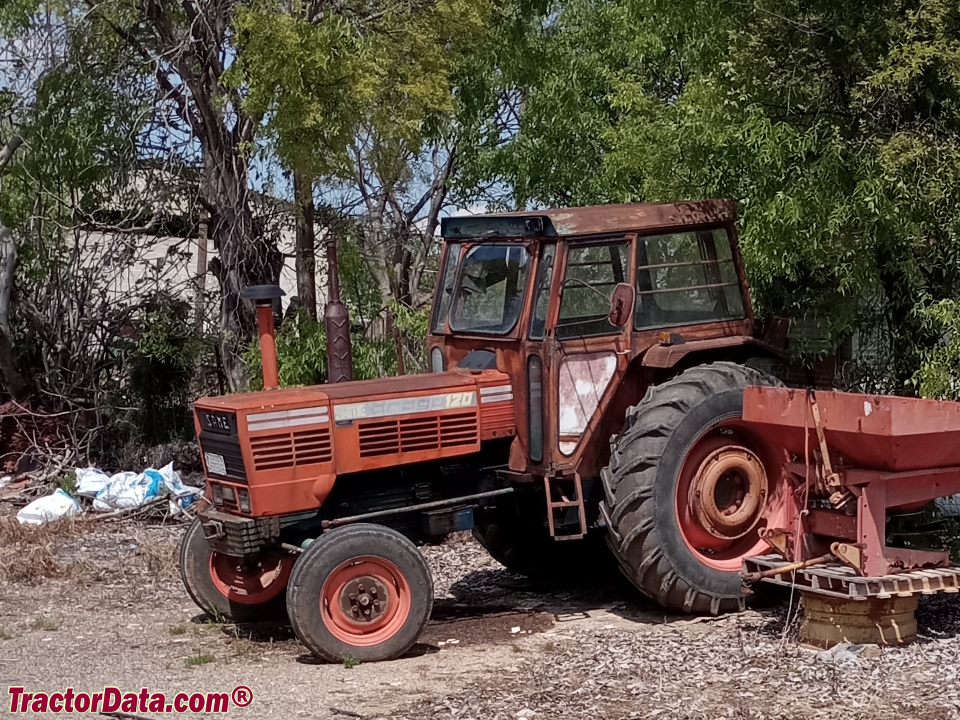

SAME Drago 120
SAME Drago 120 · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Weight
9150 to 10076 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Trailer brakeshydraulicReference
Four-post ROPS.Reference
Engine
SAME 6.2L 6-cyl dieselReference
Fuel tank120.0 LReference
Engine85.8 kWReference
SAME 1056 PReference
dieselReference
6-cylinderReference
air-cooled inlineReference
Displacement6.2 LReference
Bore/Stroke105 x 120 mmReference
Power85.8 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2070Reference
Starter volts12Reference
Transmission
12-speedReference
24-speed creeperReference
Gears12 forward and 4 reverseReference
TypecreeperReference
Gears24 forward and 8 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure171.6 barReference
Pump flow35.0 lpmReference
Pump flow60.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4239 kgReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase265 cmReference
Weight9150 to 10076 poundsReference
Front tire9.50-20Reference
2WD Rear tire18.4/15-38Reference
2WD Standard tires (ag)Front: 9.50-20. Rear: 18.4/15-38Reference
4WD Standard tires (ag)Front: 13.6/12-28. Rear: 18.4/15-38Reference
2WD Length424 cmReference
4WD Length441 cmReference
Width227 cmReference
2WD Weight4150 kgReference
2WD Weight4570 kgReference
@WD Ground clearance57 cmReference
4WD Ground clearance43 cmReference
2WD Front tread160 to 230 cmReference
4WD Front tread180 to 219 cmReference
Rear tread180 to 231 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
SAME Drago 120 Height
2WD Hood162 cmReference
4WD Hood166 cmReference
ROPS281 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
