Tractor · 1986Unverified

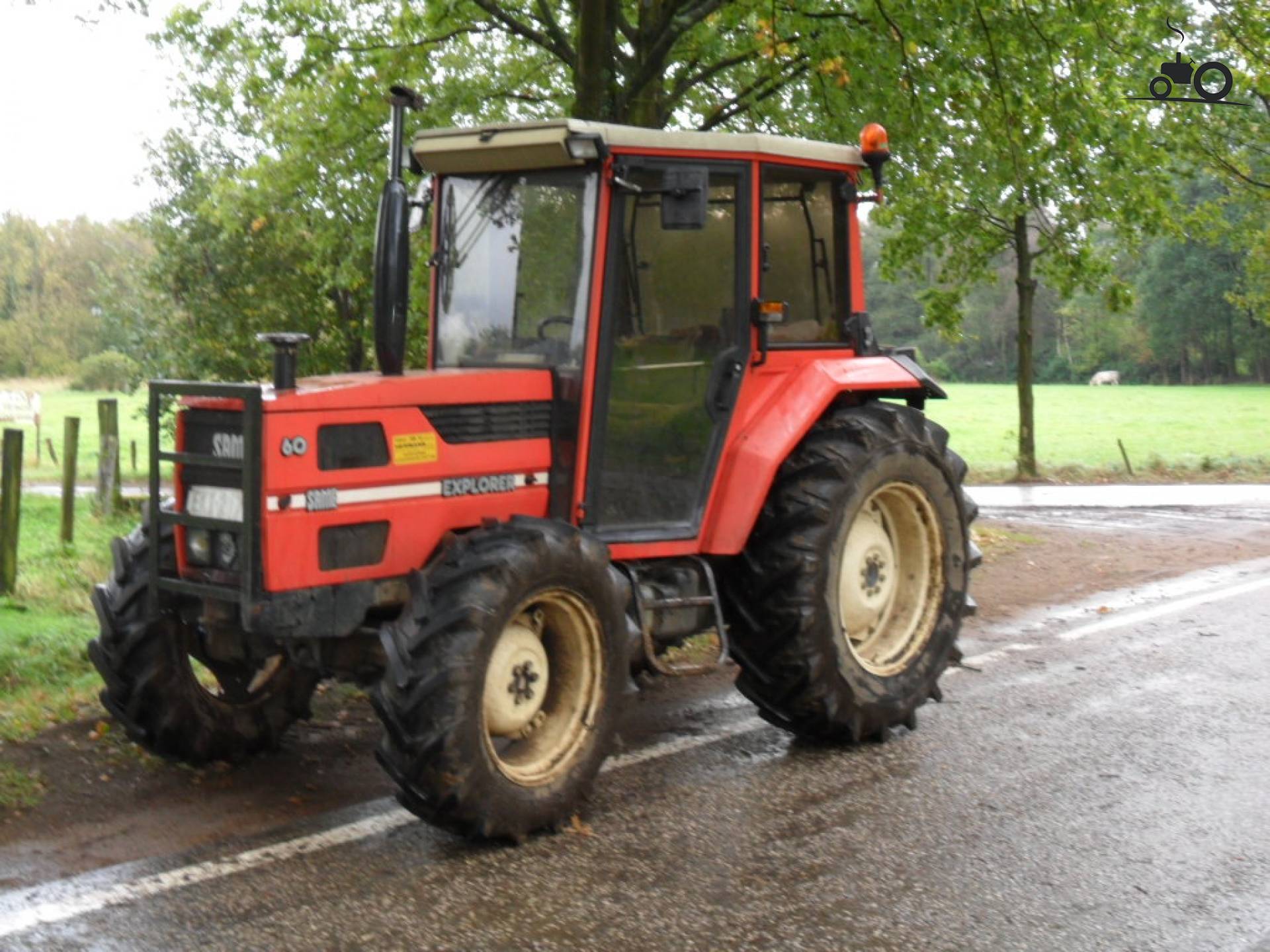

SAME Explorer 60
SAME Explorer 60 — Explorer Series · 60 hp. Reference specifications; pending source verification.
The SAME Explorer 60 is a tractor with a rated power output of 60 hp, positioning it at the lighter end of its class. Manufactured from 1986 to 1990, this model features a 3-cylinder diesel air-cooled engine paired with a four-wheel drive system and a 12-speed gearbox. The operating weight of the Explorer 60 is specified at 2955 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
2955 kg
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
60 hp
Recorded weight
2955 kg
Transmissions
12-speed
Production years
1986-1990
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Four-post ROPS. Available cab with optional heater.Reference
Engine
SAME 3.0L 3-cyl dieselReference
Fuel tank85.2 LReference
Engine44.7 kWReference
SAME 1000 3-AReference
dieselReference
3-cylinderReference
air-cooledReference
Displacement3.0 LReference
Bore/Stroke105 x 116 mmReference
Power44.7 kWReference
Air cleanerdryReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Pump flow29.1 lpmReference
Rear TypeIIReference
Rear lift2270 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase211 cmReference
Weight2955 kgReference
Front tire11.2-24Reference
Rear tire14.9-30Reference
Ag front11.2-24Reference
Ag rear14.9-30Reference
Length383 cmReference
Height251 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
