Tractor · 1983Unverified

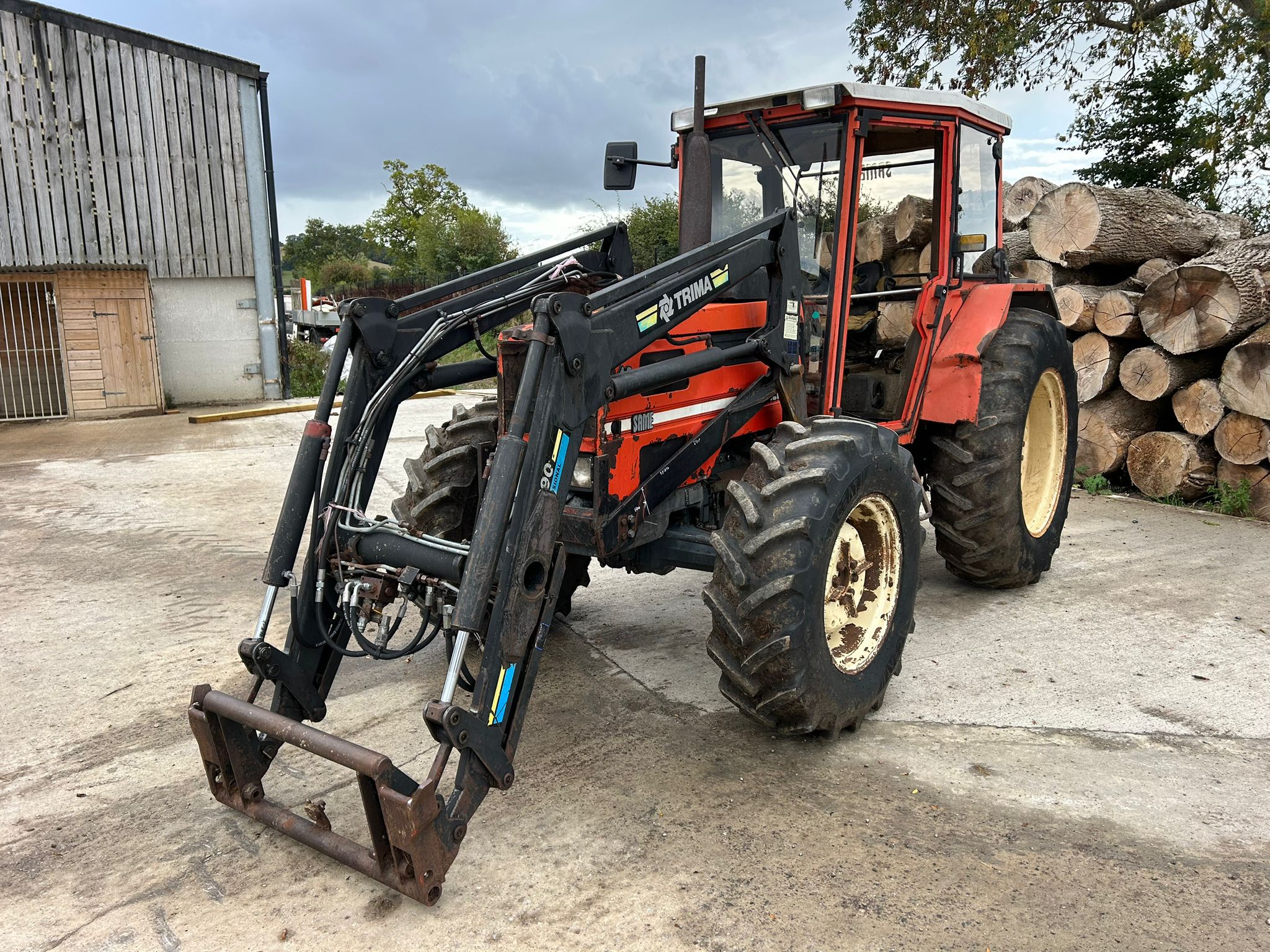

SAME Explorer 65
SAME Explorer 65 — Explorer Series · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
5645 to 6439 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS. Cab available with heater.Reference
Engine
SAME 3.7L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine48.5 kWReference
SAME 916.4 AReference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.7 LReference
Bore/Stroke103 x 110 mmReference
Power48.5 kWReference
Air cleanerdryReference
Rated RPM2350Reference
Starter volts12Reference
Transmission
12-speedReference
24-speedReference
15-speedReference
Gears12 forward and reverseReference
Clutchhydraulic dry discReference
Four gears (1-4) in three ranges.Reference
Gears24 forward and 12 reverseReference
Four gears (1-4) in three ranges with additional two-speed mini-reduction range shift in forward.Reference
Gears15 forward and reverseReference
PTO & Hydraulics
Pressure179.3 barReference
Pump flow32.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift3430 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase237 cmReference
Weight5645 to 6439 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9/14-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9/14-30Reference
4WD Standard tires (ag)Front: 12.4/11-24. Rear: 14.9/14-30Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 13.2/12-36Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 14.9/13-30Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 12.4/11-36Reference
2WD Optional tires (ag)Front: 7.50-18. Rear: 13.6/12-36Reference
2WD Optional tires (ag)Front: 7.50-18. Rear: 18.4/15-30Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 13.6/12-38Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 14.9/13-30Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 12.4/11-36Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 16.9/14-30Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 18.4/15-30Reference
4WD Optional tires (ag)Front: 11.2/10-24. Rear: 14.9/13-30Reference
4WD Optional tires (ag)Front: 12.4/11-24. Rear: 12.4/11-36Reference
4WD Optional tires (ag)Front: 13.6/12-24. Rear: 13.6/12-36Reference
4WD Optional tires (ag)Front: 13.6/12-24. Rear: 18.4/15-30Reference
4WD Optional tires (ag)Front: 12.4/11-28. Rear: 13.6/12-38Reference
4WD Optional tires (ag)Front: 12.4/11-24. Rear: 16.9/14-30Reference
2WD Length369 cmReference
4WD Length361 cmReference
Width186 cmReference
2WD Ground clearance48 cmReference
4WD Ground clearance40 cmReference
2WD Front tread139 to 199 cmReference
4WD Front tread150 to 210 cmReference
Rear tread139 to 199 cmReference
2WD ROPS2560 kgReference
2WD Cab2760 kgReference
4WD ROPS2720 kgReference
4WD Cab2920 kgReference
Electrical
Charging systemalternatorReference
Charging amps64Reference
Battery volts12Reference
SAME Explorer 65 Height
Hood152 cmReference
ROPS244 cmReference
Cab249 cmReference
Speeds
With 16.9/14-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
