Tractor · 1986Unverified

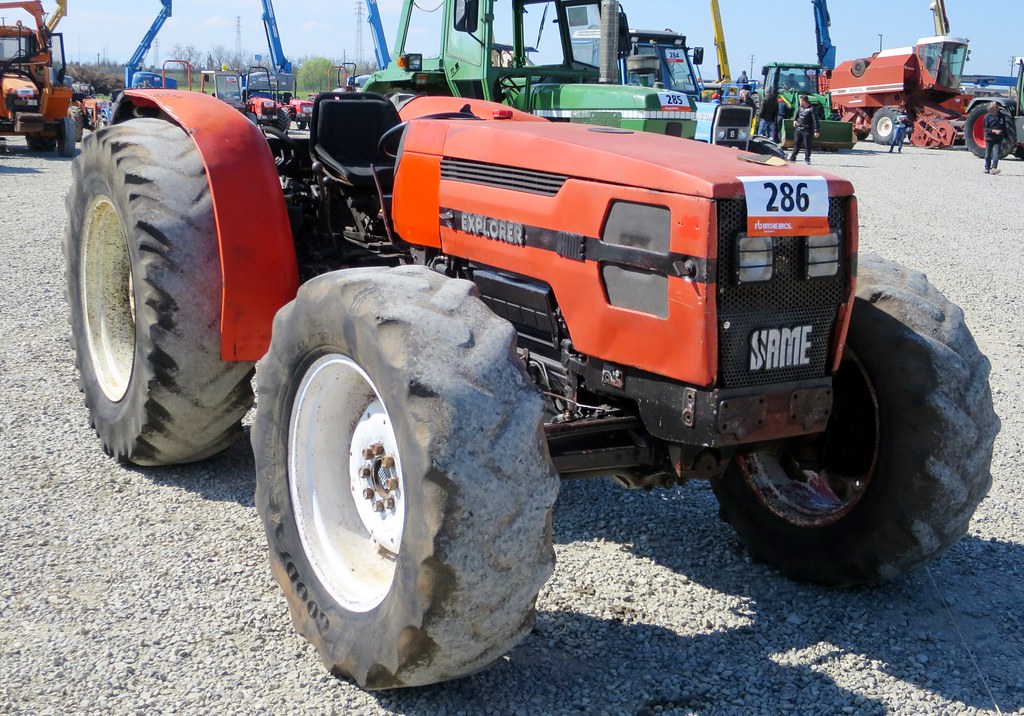

SAME Explorer 70
SAME Explorer 70 — Explorer Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
5643 to 6437 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS. Available cab with optional heater.Reference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine52.2 kWReference
SAME 1000 4-AReference
dieselReference
4-cylinderReference
air-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 116 mmReference
Power52.2 kWReference
Air cleanerdryReference
Rated RPM2350Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Transmission
12-speedReference
24-speedReference
Gears12 forward and reverseReference
Clutchhydraulic dry discReference
Four gears (1-4) in three ranges.Reference
Gears24 forward and 12 reverseReference
Four gears (1-4) in three ranges with additional two-speed mini-reduction range shift in forward.Reference
Gears24 forward and reverseReference
Five gears (1-5) in four ranges.Reference
PTO & Hydraulics
Pressure179.3 barReference
Pump flow32.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift3430 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase232 cmReference
4WD Wheelbase228 cmReference
Weight5643 to 6437 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9/14-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9/14-30Reference
4WD Standard tires (ag)Front: 12.4/11-24. Rear: 16.9/14-30Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 13.6/12-36Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 14.9/13-30Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 12.4/11-36Reference
2WD Optional tires (ag)Front: 7.50-18. Rear: 13.6/12-36Reference
2WD Optional tires (ag)Front: 7.50-18. Rear: 18.4/15-30Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 13.6/12-38Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 14.9/13-30Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 12.4/11-36Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 16.9/14-30Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 18.4/15-30Reference
4WD Optional tires (ag)Front: 11.2/10-24. Rear: 14.9/13-30Reference
4WD Optional tires (ag)Front: 12.4/11-24. Rear: 12.4/11-36Reference
4WD Optional tires (ag)Front: 13.6/12-24. Rear: 13.6/12-36Reference
4WD Optional tires (ag)Front: 13.6/12-24. Rear: 18.4/15-30Reference
4WD Optional tires (ag)Front: 12.4/11-28. Rear: 13.6/12-38Reference
4WD Optional tires (ag)Front: 12.4/11-24. Rear: 16.9/14-30Reference
Length399 cmReference
Width186 cmReference
2WD Ground clearance49 cmReference
4WD Ground clearance40 cmReference
2WD Front tread139 to 199 cmReference
4WD Front tread139 to 159 cmReference
Rear tread139 to 199 cmReference
2WD ROPS2559 kgReference
2WD Cab2760 kgReference
4WD ROPS2709 kgReference
4WD Cab2919 kgReference
Electrical
Charging systemalternatorReference
Charging amps64Reference
Battery volts12Reference
Battery AH110Reference
SAME Explorer 70 Height
Hood152 cmReference
ROPS244 cmReference
Cab249 cmReference
Speeds
With 16.9/14-30 rear tires.Reference
