Tractor · 1985Unverified

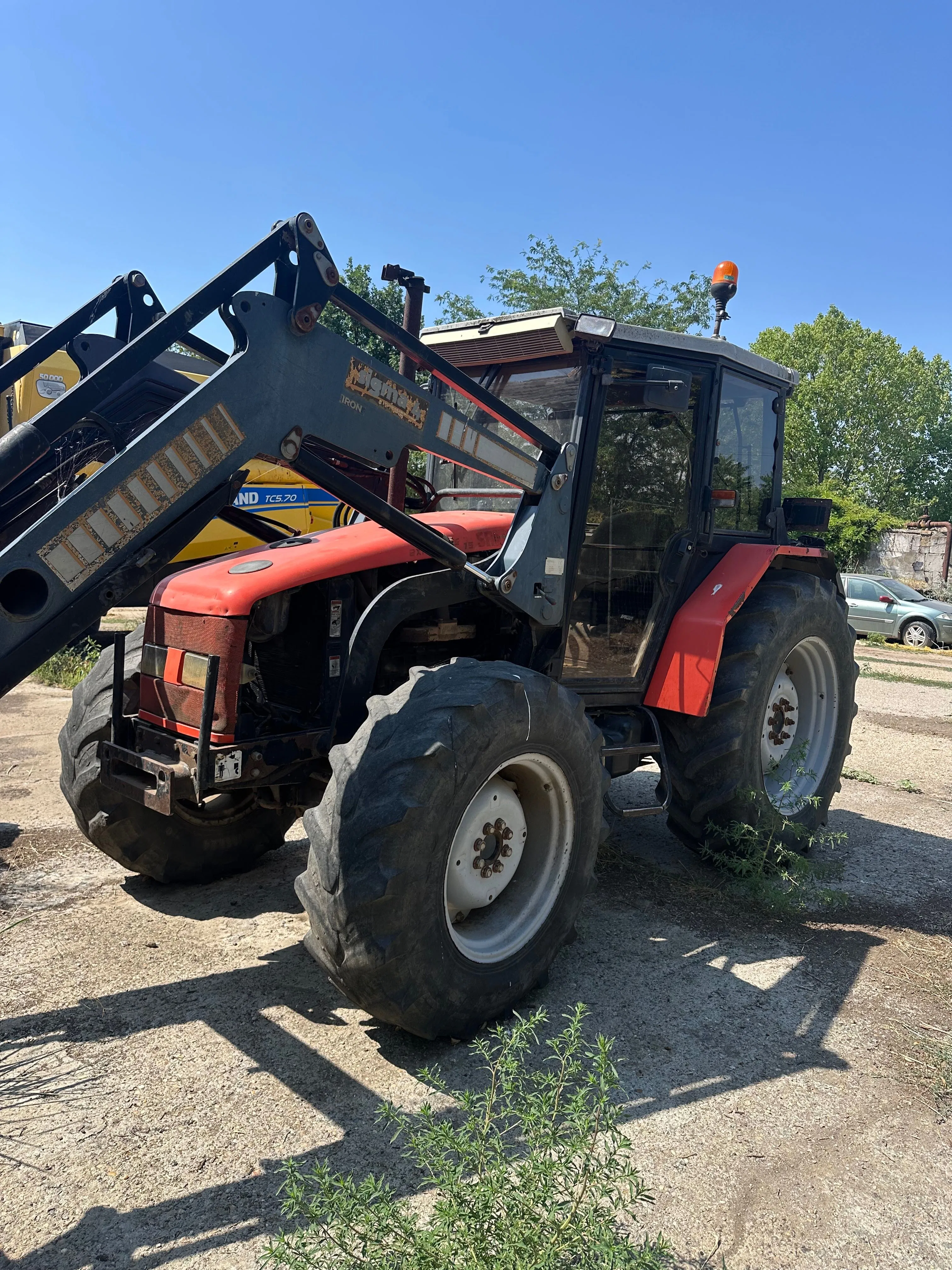

SAME Explorer 75
SAME Explorer 75 — Explorer Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
6173 to 7275 pounds
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS. Available cab with optional heater.Reference
Engine
SAME 3.7L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine55.9 kWReference
SAME 916.4 AReference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.7 LReference
Bore/Stroke103 x 110 mmReference
Power55.9 kWReference
Air cleanerdryReference
Rated RPM2500Reference
Starter volts12Reference
Starter power3.0 kWReference
Transmission
12-speedReference
24-speedReference
15-speedReference
Gears12 forward and reverseReference
Clutchhydraulic dry discReference
Four gears (1-4) in three ranges.Reference
Gears24 forward and 12 reverseReference
Four gears (1-4) in three ranges with additional two-speed mini-reduction range shift in forward.Reference
Gears15 forward and reverseReference
PTO & Hydraulics
Pressure179.3 barReference
Pump flow34.8 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift3404 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase241 cmReference
4WD Wheelbase231 cmReference
Weight6173 to 7275 poundsReference
Front tire7.50-18Reference
2WD Rear tire16.8/14-34Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 16.8/14-34Reference
4WD Standard tires (ag)Front: 14.9/13-24. Rear: 16.9/14-34Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 16.9/14-30Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 18.4/15-30Reference
2WD Optional tires (ag)Front: 7.50-18. Rear: 13.6/12-38Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 14.9/13-38Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 18.4/15-34Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 16.9/14-34Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 13.6/12-38Reference
4WD Optional tires (ag)Front: 12.4/11-24. Rear: 16.9/14-24Reference
4WD Optional tires (ag)Front: 13.6/12-24. Rear: 18.4/15-30Reference
4WD Optional tires (ag)Front: 12.4/11-38. Rear: 13.6/12-38Reference
4WD Optional tires (ag)Front: 13.6/12-38. Rear: 14.9/13-38Reference
4WD Optional tires (ag)Front: 13.6/12-28. Rear: 18.4/15-35Reference
2WD Length368 cmReference
4WD Length373 cmReference
Width186 cmReference
2WD Ground clearance52 cmReference
4WD Ground clearance44 cmReference
2WD ROPS2800 kgReference
2WD Cab3000 kgReference
4WD ROPS3099 kgReference
4WD Cab3299 kgReference
Electrical
Charging systemalternatorReference
Charging amps64Reference
Battery volts12Reference
SAME Explorer 75 Height
Hood162 cmReference
ROPS254 cmReference
Cab259 cmReference
Speeds
With 16.9/14-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
