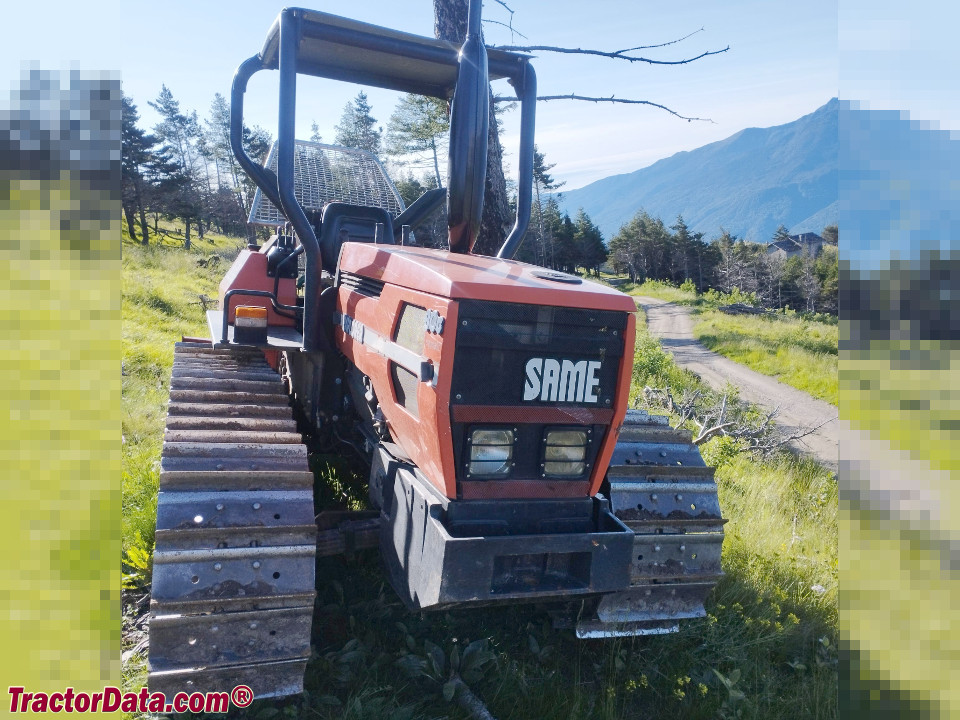

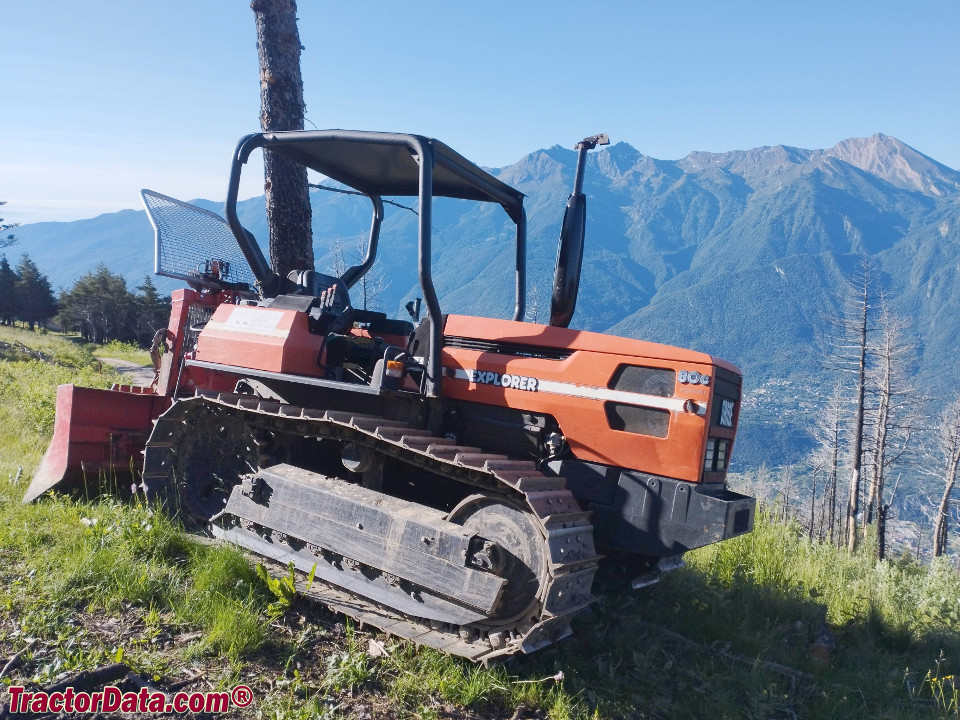

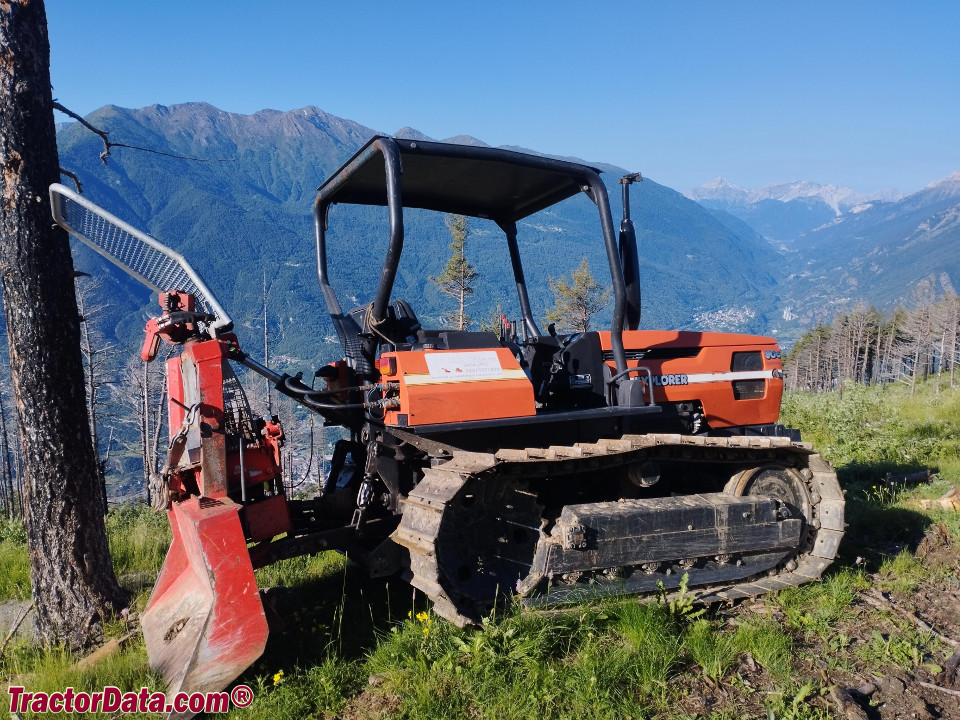

SAME Explorer 80C
SAME Explorer 80C — Explorer SeriesAgricultural Crawler tractor · 69 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
69 hp
Weight
4199 kg
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Final drivesspur gearReference
Band brakesReference
Four-post ROPS.Reference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine59.7 kWReference
SAME 1000.4AReference
dieselReference
4-cylinderReference
air-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Power59.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
TypeshuttleReference
Gears8 forward and reverseReference
Clutch304.8 mechanical organic discReference
Four gears (1-4) in two ranges (low/high) with shuttle.Reference
PTO & Hydraulics
PTO (claimed)51.5 kWReference
Pressure175.0 barReference
Valves3Reference
Pump flow40.1 lpmReference
Rear TypeIIReference
Controltop-link draft sensingReference
Rear lift (at ends)2899 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase164 cmReference
Weight4199 kgReference
15.7-inch tracksReference
Length336 cmReference
Width170 cmReference
Height (hood)130 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
SAME Explorer 80C Tracks
Width39 cmReference
Speeds
Reverse speeds are 15% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
