Tractor · 1986Unverified

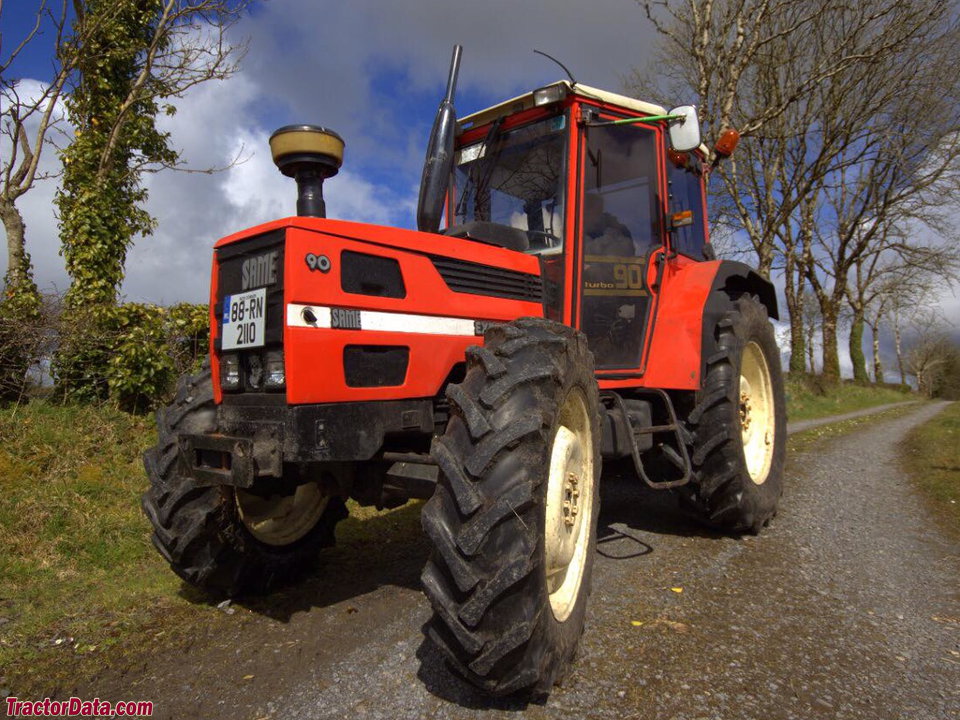

SAME Explorer 90
SAME Explorer 90 — Explorer Series · 90 hp. Reference specifications; pending source verification.
The SAME Explorer 90 is a tractor with a rated output of approximately 90 hp, falling within the middle range for its class. Produced from 1986 to 1990, this model is equipped with a 4-cylinder turbocharged diesel air-cooled engine and features four-wheel drive, paired with a 20-speed gearbox. The operating weight of the SAME Explorer 90 is specified as 3430 kg. It is designed for use on areas of 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
3430 kg
Catalogue coverage
Variants represented
2
Richest spec table
36 rows
Recorded power
90 hp
Recorded weight
3430 kg
Transmissions
20-speed
Production years
1986-1990
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSAMEReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Cab with optional heater.Reference
Engine
SAME 4.0L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine67.1 kWReference
SAME 1000 4-ATReference
turbocharged dieselReference
4-cylinderReference
air-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 116 mmReference
Power67.1 kWReference
Air cleanerdryReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
20-speedReference
Gears20 forward and reverseReference
PTO & Hydraulics
Pump flow34.8 lpmReference
Rear TypeIIReference
Rear lift3430 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase242 cmReference
Weight3430 kgReference
Front tire7.50-18Reference
Rear tire16.9-34Reference
Ag front7.50-18Reference
Ag front13.6-28 (4WD)Reference
Ag rear16.9-34Reference
Length399 cmReference
Height244 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
